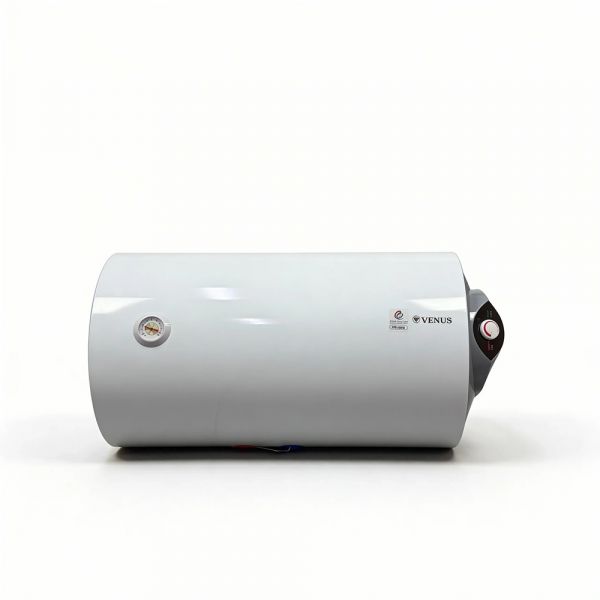

Venus 80L Glasslined Water Heater
Product Code: 80VHX
Brand: Venus
Introducing the Venus Water Heater – 80 L, a reliable solution for your hot water needs, engineered for durability and efficiency. Featuring a Porcelain Enamel Glass-Lined Tank, this heater ensures enhanced corrosion resistance and long-lasting performance. Built to withstand up to 8 bar pressure, it’s ideal for high-rise buildings and modern plumbing systems. The thick PUF insulation offers superior heat retention, while the integrated temperature display provides easy monitoring. A magnesium anode adds extra protection against corrosion, and rust-proof lids ensure lasting hygiene.
Porcelain Enamelled Glass Lined Tank: Manufactured in a modern, automated plant using European Technology. Protects the tank from rust and corrosion.
Key Features
- Porcelain Enamel Glass-Lined Tank
- High Density PUF Insulation
- Multi-Level Safety Protection with Pressure Release Valve
- Sacrificial Magnesium Anode for Tank Protection
- Temperature Display
- With Power Cable
- Rust Proof Lids
- Capillary Thermostat
- Capillary Thermal Cutout
- PUF Insulation
- Stylish Control Knob
- Mounting Bracket
| Installation | Horizontal wall mounted |
| Control type | Manual Control |
| Heating power | Single |
| Number of inner tank | 1 |
| Material of inner tank | Low carbon steel |
| Thickness of inner tank | 1.5 - 1.8 mm |
| Inner tank diameter | Ø400 mm |
| Enamel type | Electrostatic Dry powder enamel coating tech of Italy |
| Average Enamel layer thickness | 250 - 400 micron |
| Welding type | Plasma automatic welding tech of Italy |
| Number of welding line | 3 |
| Enamel powder | Ferro - Colorobia -(Italy) |
| Material of insulation layer | Expanded Polythene Foam |
| Thickness of insulation layer | 20mm |
| Protective anode | Magnesium Rod |
| Size of protective anode | Ø18mm*350mm |
| Material of outer jacket | 0.45mm PCM Sheet |
| Finishing of outer jacket | Glossy |
| Color of finishing | White |
| Customer logo | Polycorbanate Sticker |
| Heating element | Incoloy Element |
| Rated power (Watts) | 2000 Watts |
| Power tolerance | +5% / -10% |
| Rated voltage | 220 - 240V |
| Rated frequency | 50~60Hz |
| Rated current | 8.6A |
| Thermostat | Capillary |
| Temperature range | 30℃ to 75℃ |
| Cutout | Double pole disc |
| Temperature range | 100℃ ±4℃ |
| Protection against humidity | IPX4 |
| Working Pressure | 0.8Mpa |
| Plug | 1 Sq mm 3 core cable without molded plug |
| Cable length | 1.1 Mtr |
| Product size (mm) | Ø441 x 825 |
| Carton size (mm) | 465x460x855 |
| GW / NW (kg) | 32.4/29.2 |
| Packaging box | 5-Ply, Two colour (Red & Black) printing with White background |
| In box accessories | User Manual*1, Safety Valve*1 |
