Avintage Built-Under-Counter Range 82 cm
Brand: Avintage

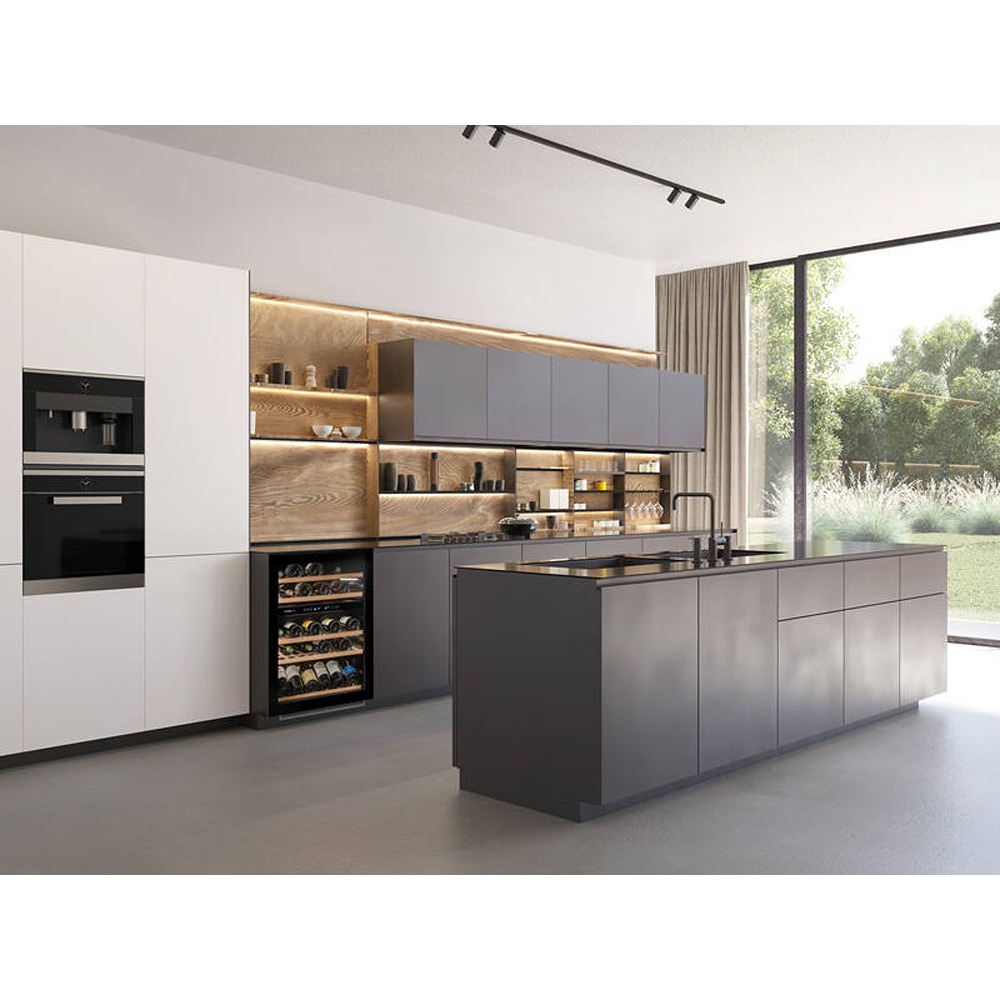

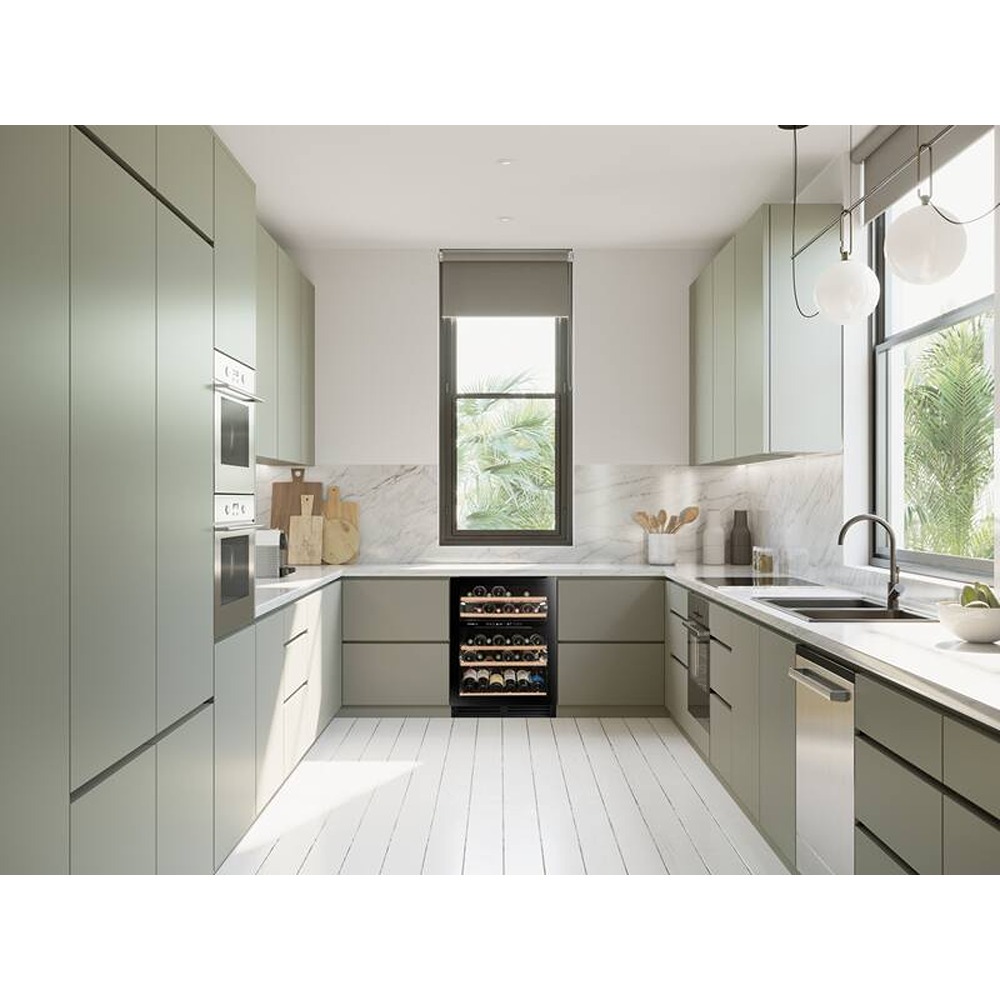

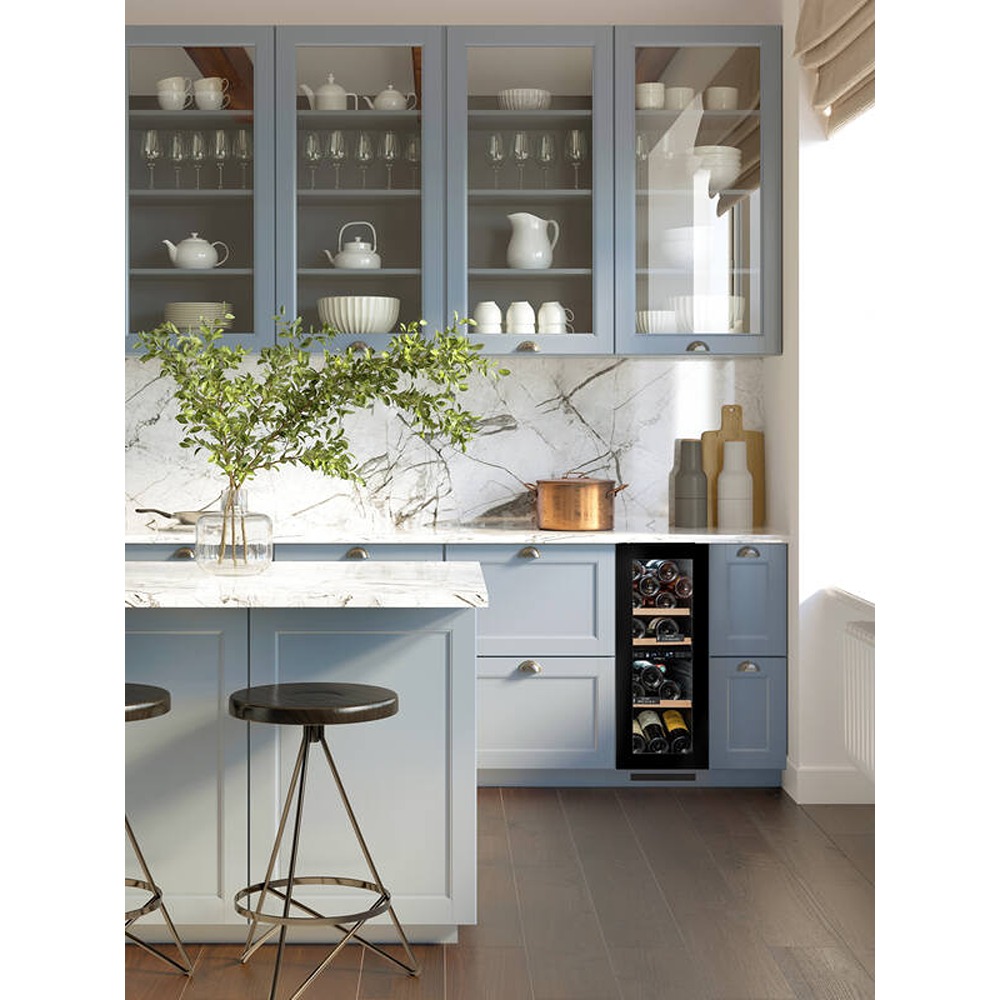

Built-Under-Counter 82 cm range is designed to seamlessly integrate beneath standard kitchen worktops. These units feature hidden handles under the worktop for a refined, discreet aesthetic, a recessed plinth that aligns with kitchen furniture plinths, and removable/replaceable plinths compatible with any standard perforated plinth. Available in two widths 30 cm (narrow) and 60 cm (wide) both are dual-zone service cellars ideal for serving wines at the right temperature. Note: this range does not include remote scalability or front ventilation; low ventilation through the grille at the base is required.
Shared Features Both Built-Under-Counter Variants
Built-under-counter installation 82 cm overall height with 7 cm adjustable feet
72 cm door height flush with kitchen furniture
Recessed plinth for alignment with furniture plinths

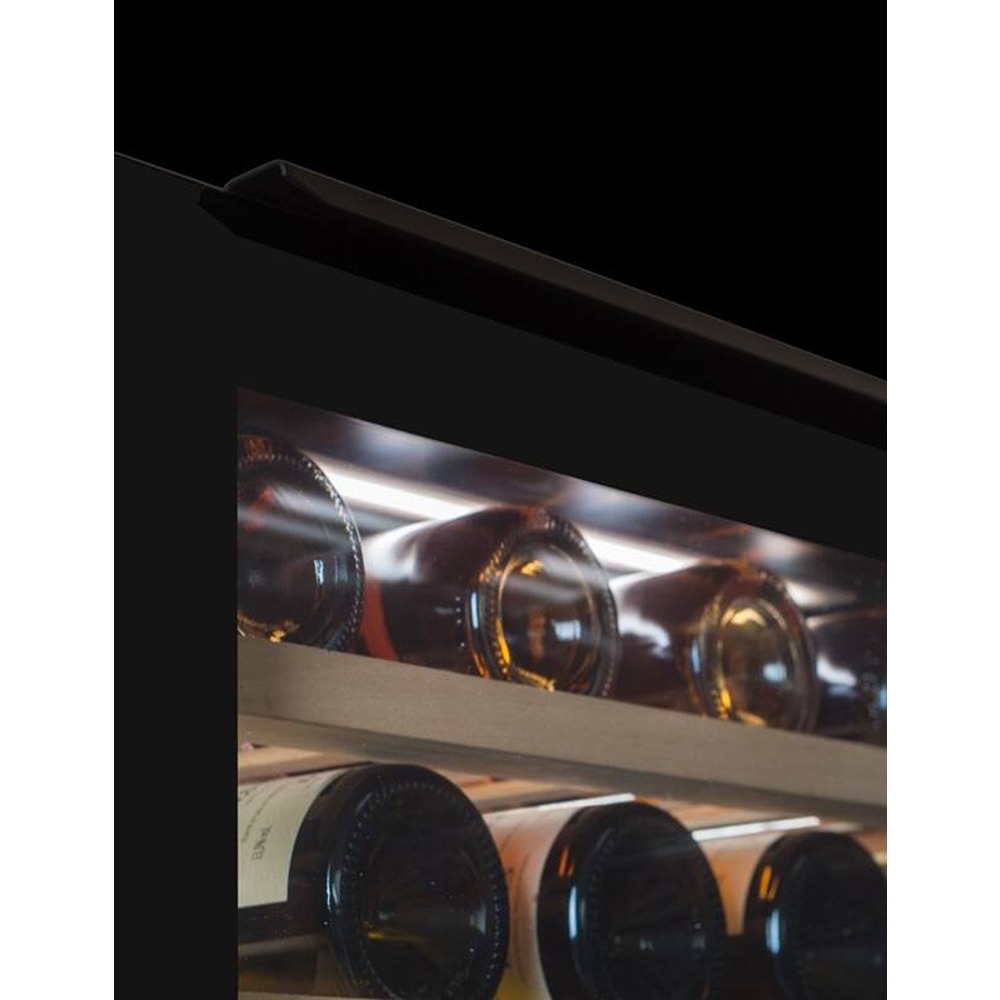

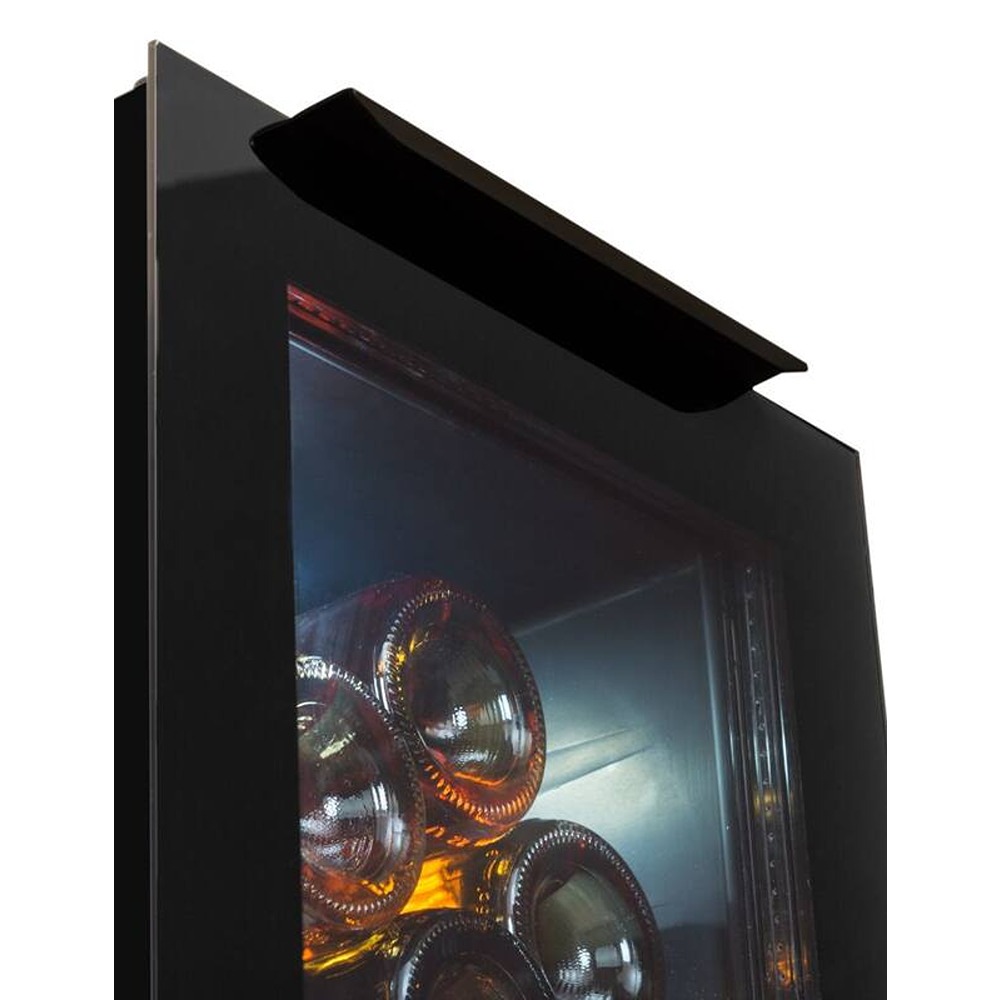

Discreet handles under the worktop

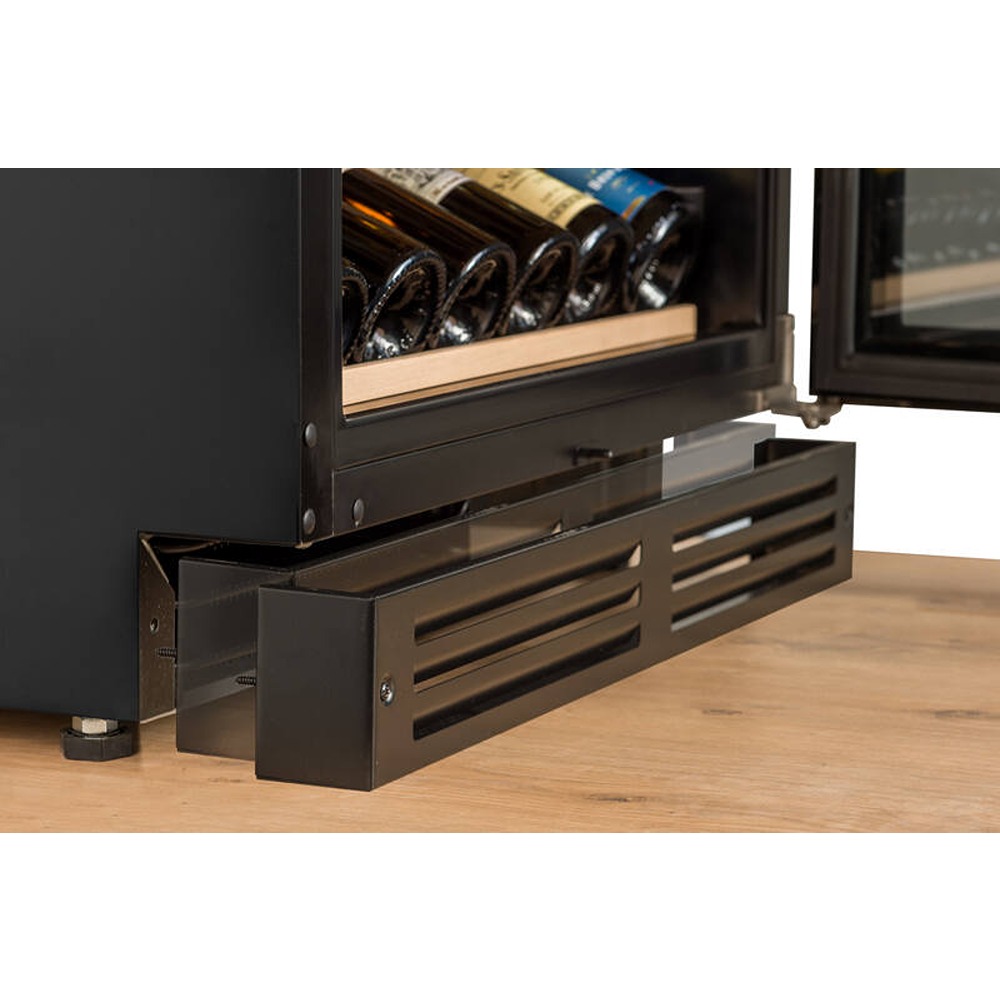

Removable & replaceable plinth (compatible with standard perforated plinths)
Plumbing passage at the back for flush mounting
Dual temperature zones (independently adjustable)
Triple glazing with anti-UV treatment and Low-e glass

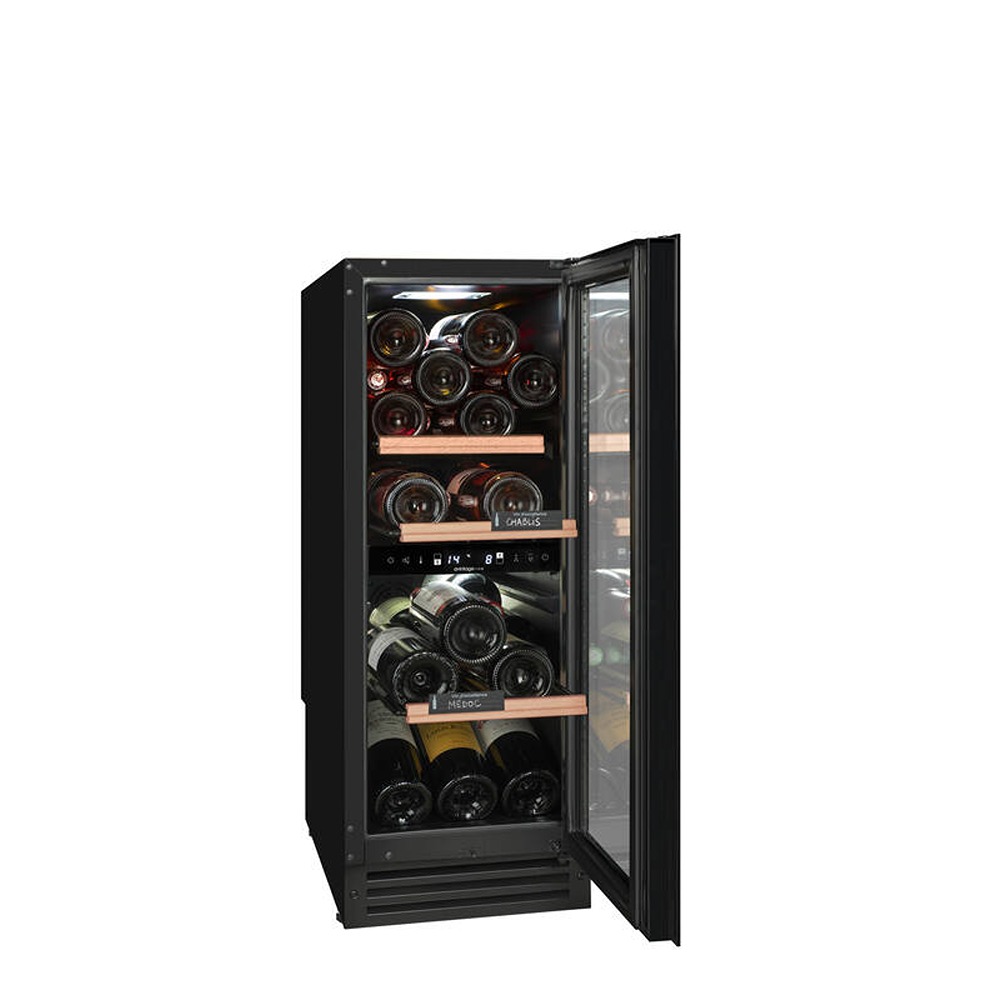

Reversible door
Low ventilation required (cold air through base grille)
Specification:

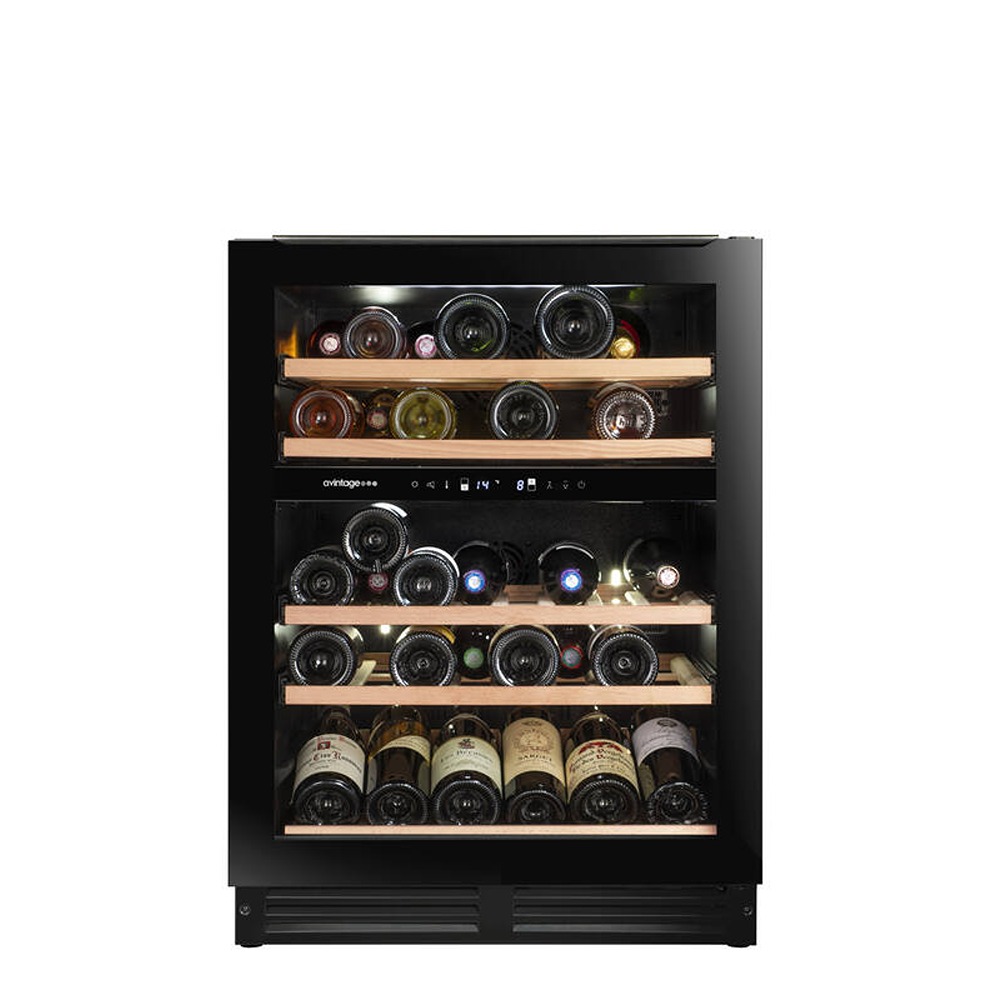

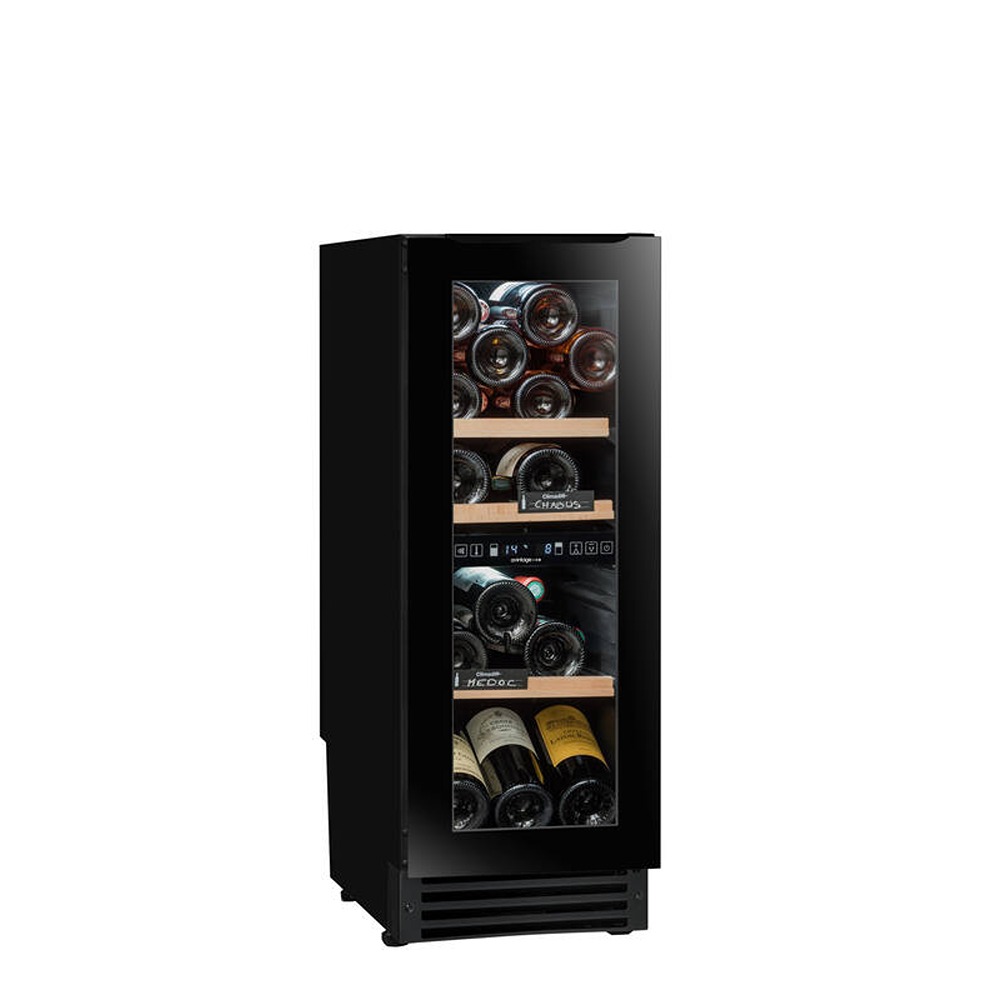

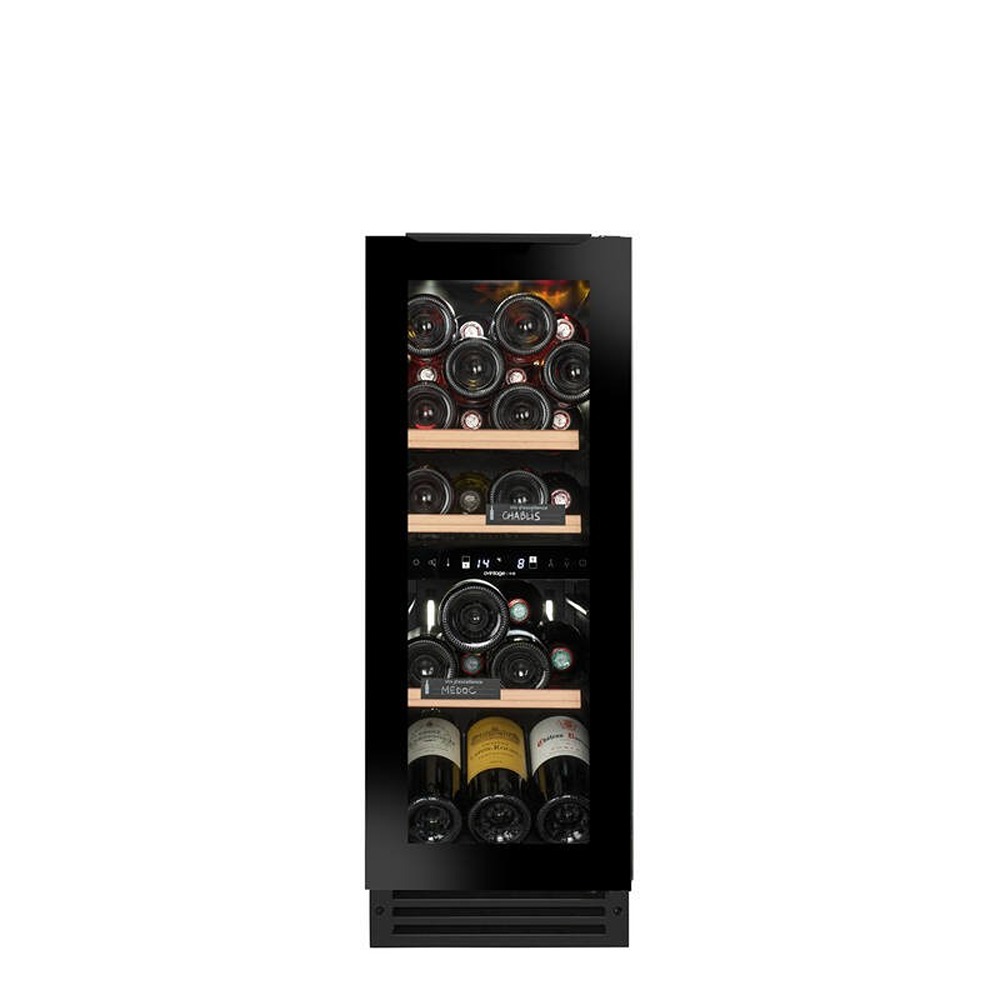

| Description | AVU27D82 30cm | 25 Bottles | AVU51D82 60 cm | 44 Bottles |
| Installation | Built-under-counter 30 cm | Built-under-counter 60 cm |
| Temperature Zones | 2 Zones (independent) | 2 Zones (independent) |
| Capacity | 25 bottles | 44 bottles |
| Temperature | 5 – 12°C (upper) / 12 – 20°C (lower) | 5 – 20°C (upper) / 12 – 20°C (lower) |

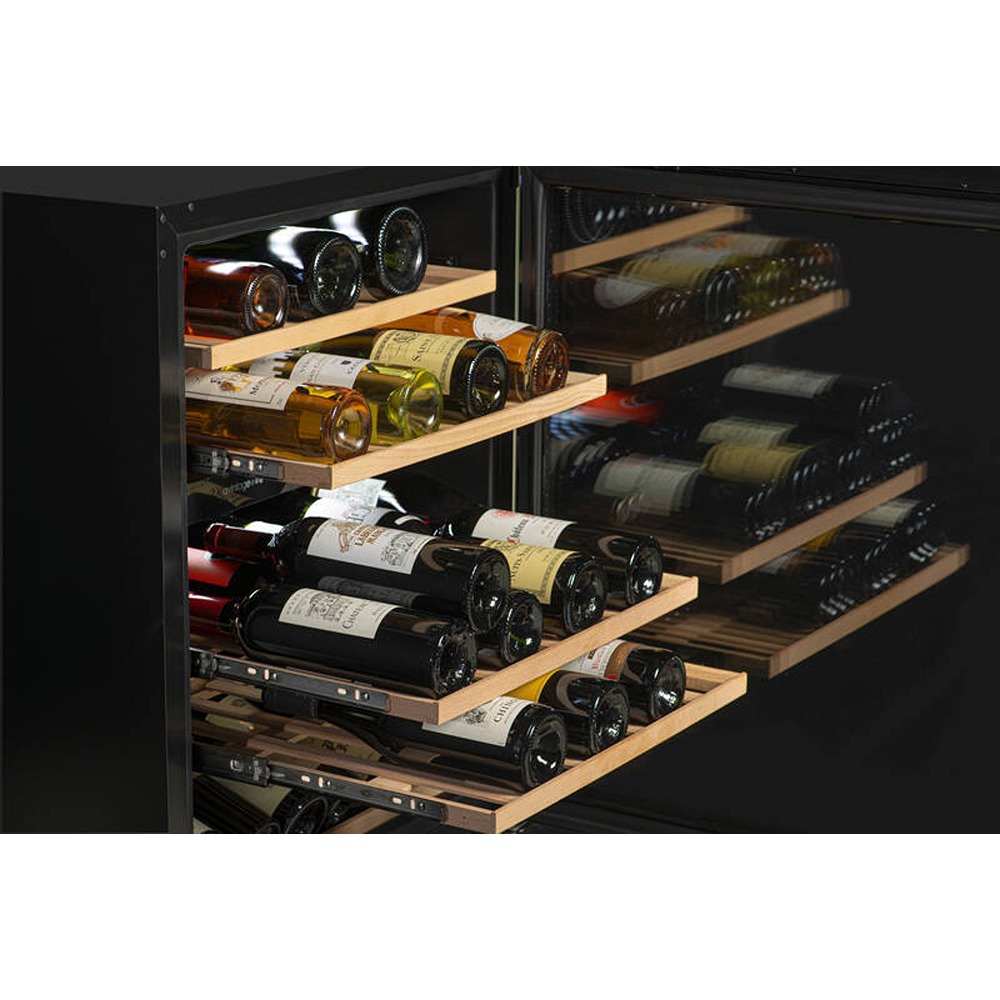

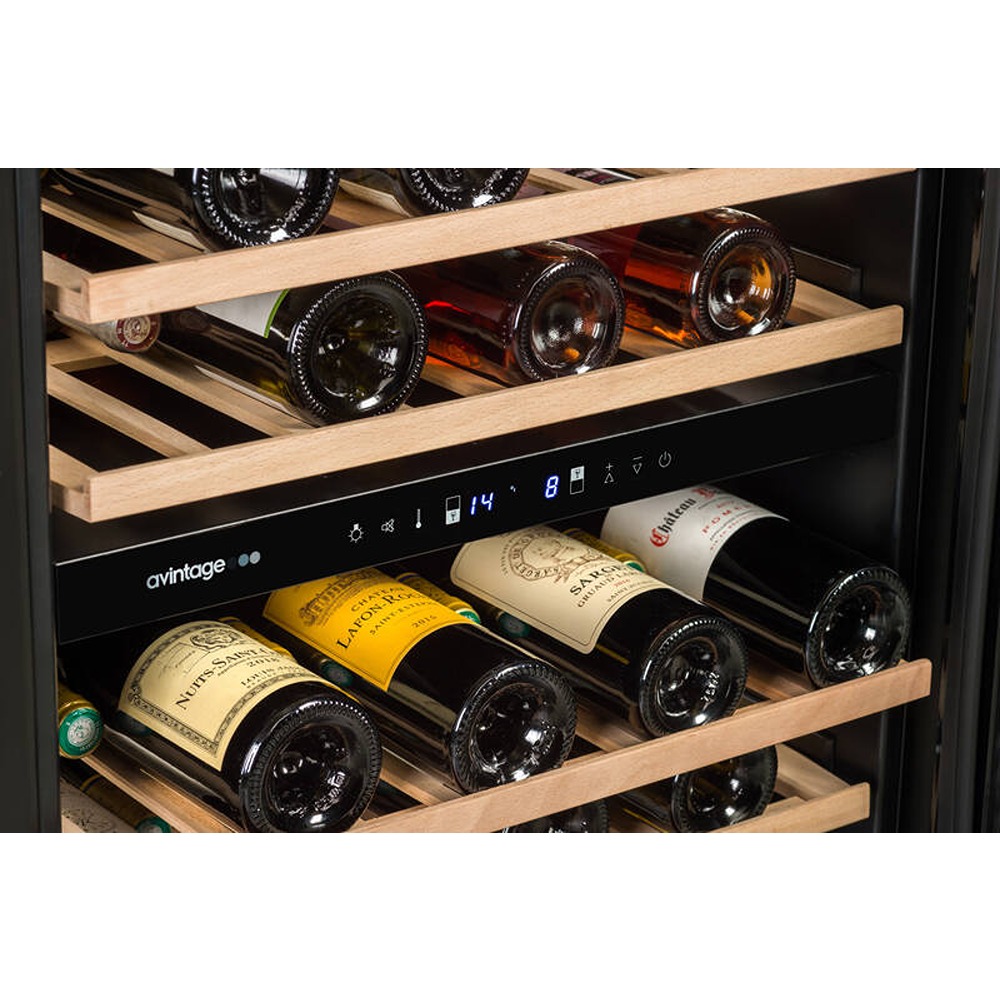

| Shelves | 3 wire shelves with wooden fronts | 4 wooden shelves with telescopic rails + 1 fixed display shelf |
| Dimensions (WxDxH) | 29.5 x 57.4 x 81.7 / 88.7 cm | 59.5 x 57.4 x 81.7 / 88.7 cm |
| Door Height | 72 cm | 72 cm |
| Adjustable Feet | 4 x 7 cm | 4 x 7 cm |
| Noise | 38 dB | 37 dB |
| Energy Class | F | F |
| Remotely Scalable | No | No |
| Net / Gross Weight | 26 / 30 kg | 42 / 46 kg |
