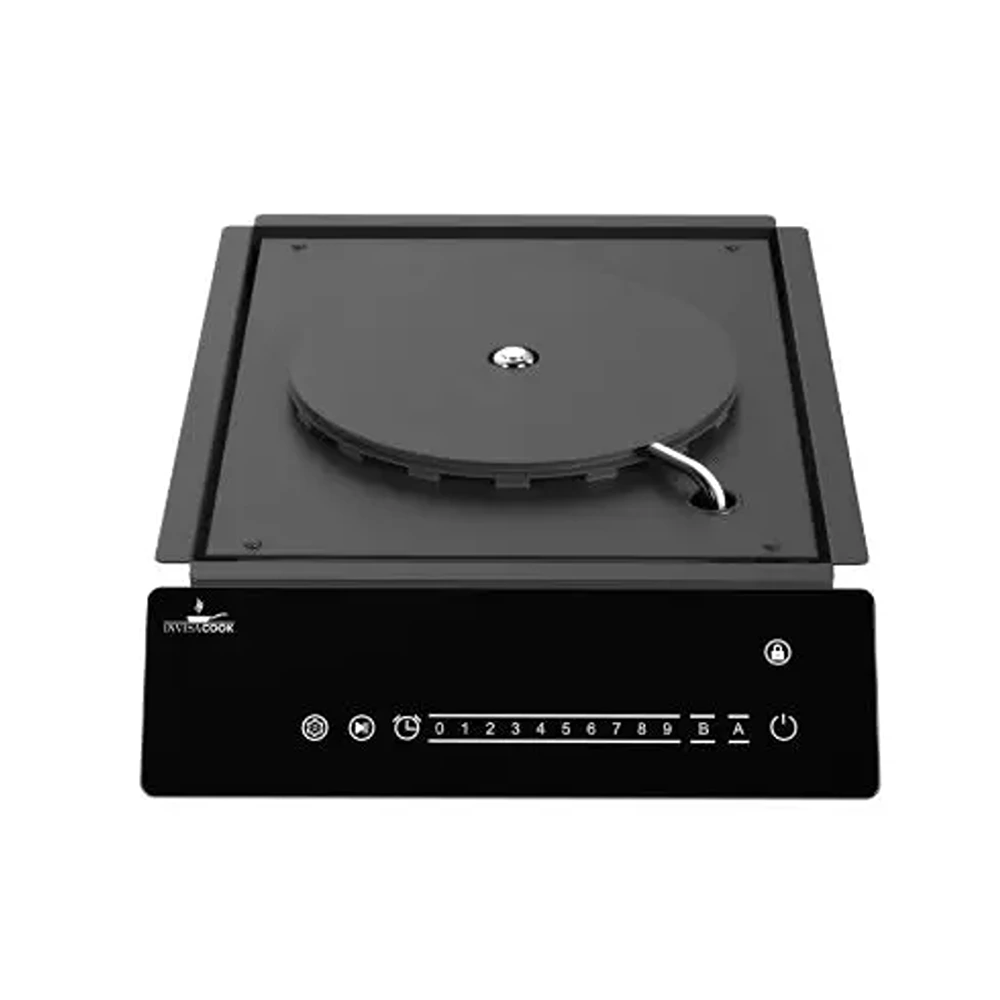

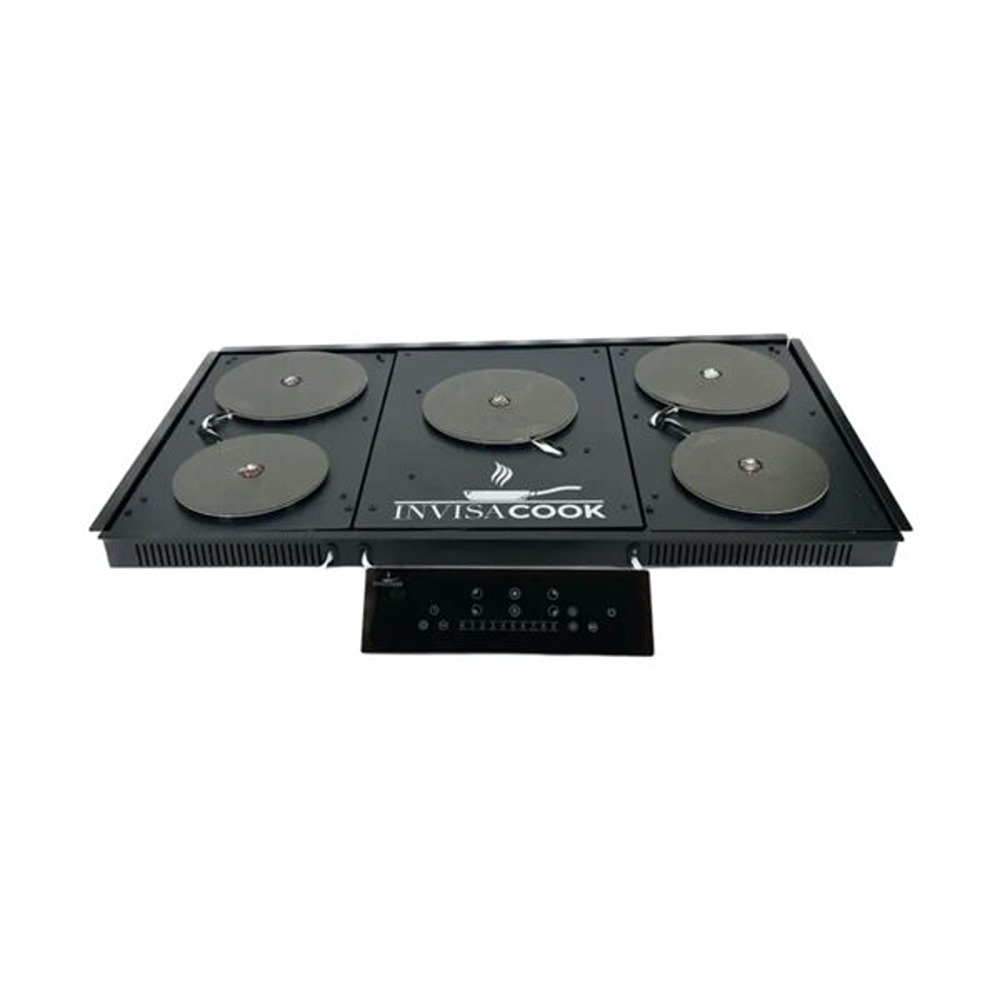

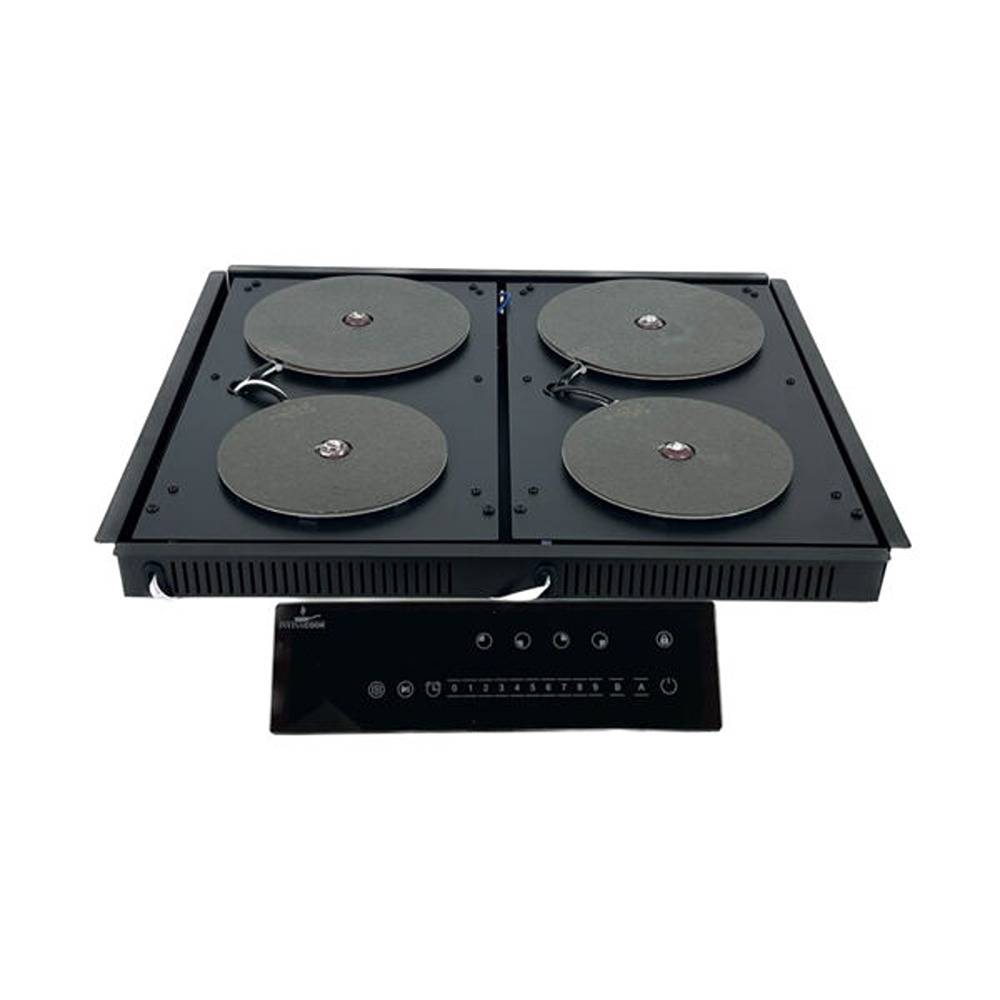

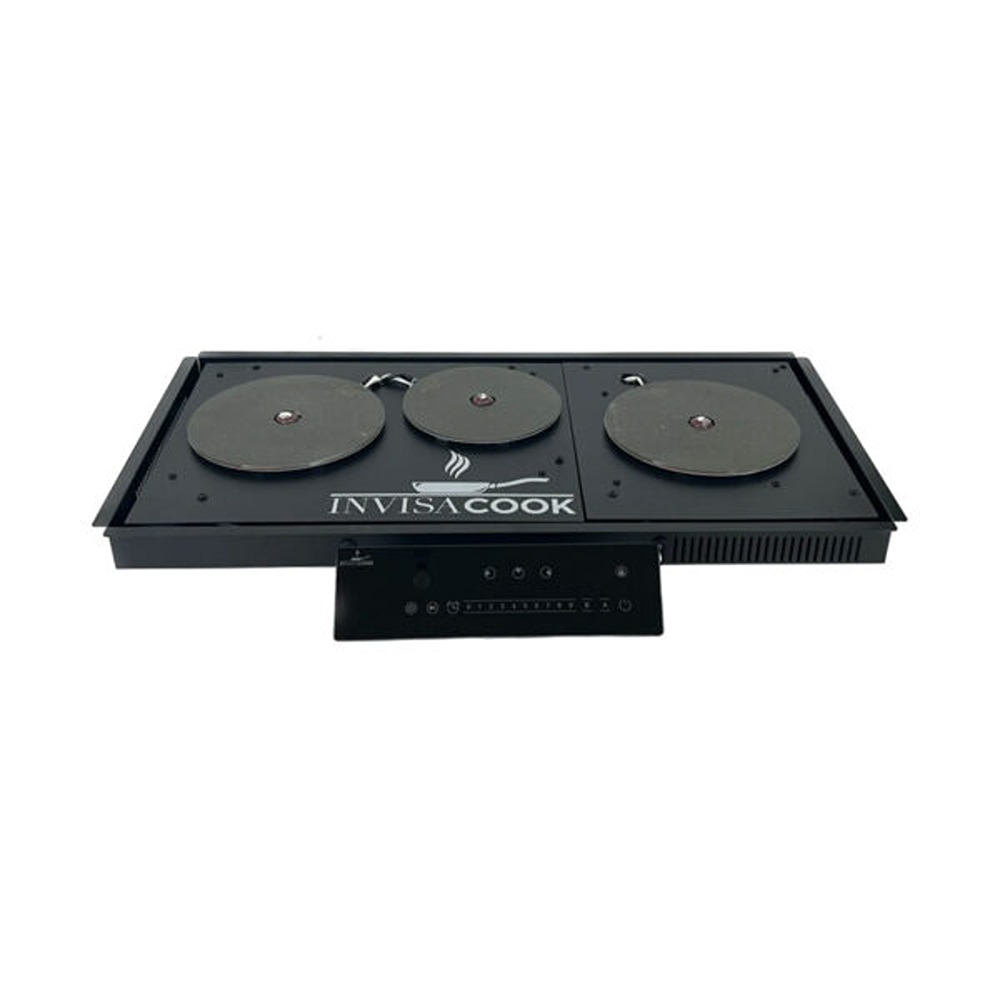

Invisacook Induction Cooktop Burner Unit System
Brand: InvisaCook
Invisacook, an innovative and inventive take on induction cooking. This new take on Induction cooking has made the cooking surface completely seamless, as if to be completely invisible. Designed for Domestic use Only.
Compatible with 12mm Porcelain, certain 20mm Porcelain, and Granite milled to 15mm.
NOT compatible with QUARTZ, CORIAN, HI-MAC and LAMINATE surfaces.
Controlled via touch screen control panel or Wi-Fi on a mobile device or tablet.
Child-safe system with automatic anti-activation device. Fan-cooled electronic system.
Burner Unit is a complete, self-contained system. It has 2 induction points to cook thru your porcelain countertop, evenly and sufficiently. While it has a controller that can place anywhere
Designed for Undermounting installation for any Porcelain countertop surface in any way possible.

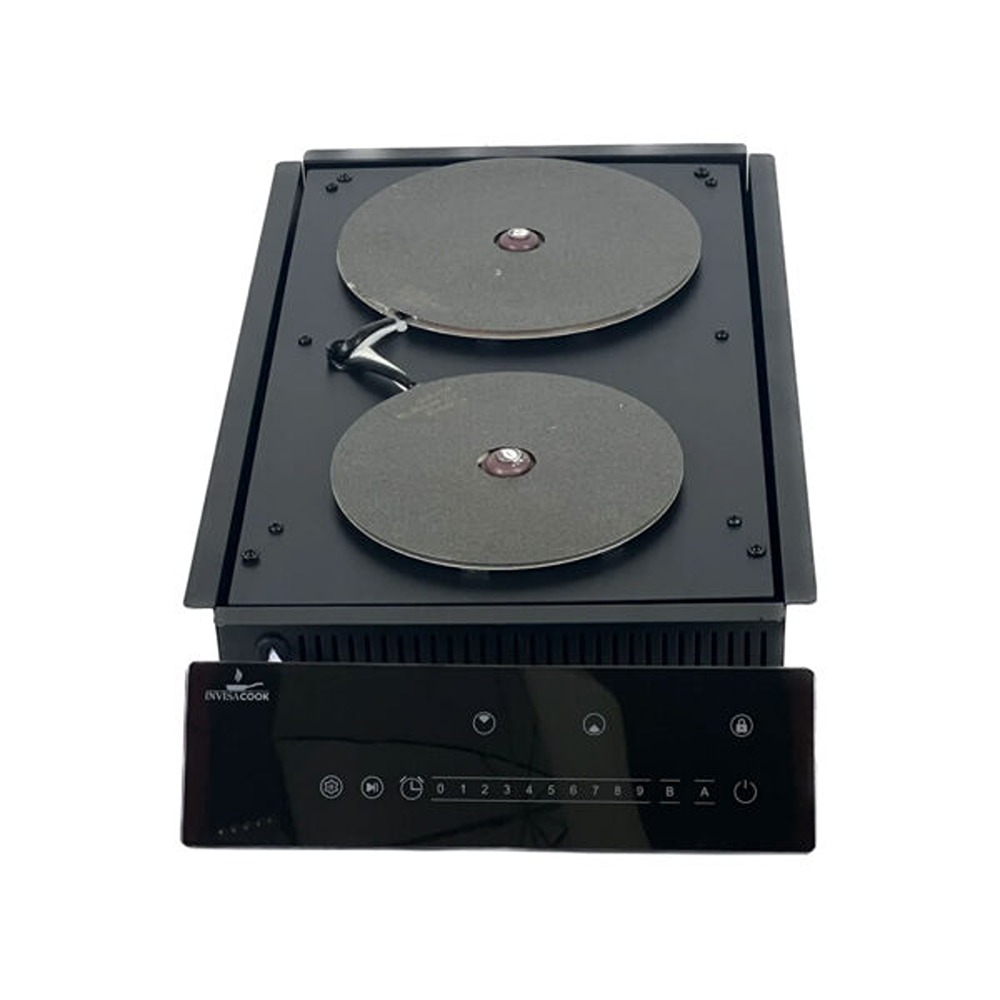

INVISACOOK – 2 Burner Unit is a complete, self-contained system. It has 2 induction points to cook thru your porcelain countertop, evenly and sufficiently. While it has a controller that can be placed anywhere.
Features
2 separate burning unit elements
Power Boost option for faster Water Boiling speed.
Designed for Undermounting installation for any Porcelain countertop surface in any way possible.
Device Operation
When a compliant receiver such as an induction quality pan is placed on the induction coil, the unit will automatically adjust the charging power, based on the feedback command from the controller. When searching for connection, LED number will blink red, once pan and unit are connected the LED number will stay illuminated. If the pan moves too far in relation to the induction coil, the LED will blink IC and a Beeping noise will follow, indicating an error in connection. If this (or any other error condition) occurs, try resetting the unit by unplugging it and waiting 10 seconds to reconnect, for an automatic reset.
Foreign Object Detection
INVISACOOK – 2 Burner Unit contains an algorithm for sensing the presence of foreign objects placed on the unit. When a foreign object is placed on the transmitter coil during operation, the unit will shut down and the LED will flash red showing IC and make a beeping noise.
Applications
2 Burner unit can be used in these options and materials:
Typical House Kitchen
Multi-Family (Apartments)
Boats / RVs / Airplanes
Tiny Houses
Outdoor Kitchens
Entertaining Islands or Tables
Cooking Carts
Materials – Porcelain
Electrical And Mechanical Specifications
| Off | No power / inactive |
| Power on | LED lights on Red Dash |
| Connected | LED Number stays illuminated |
| Lost of Connection | LED Blinking IC Red |
| Noise Alert | Beeping Noise of no Connection |
| Error condition | A Letter Followed by a Number (H-8) |
| Dimension | 507 x 293 x 55 mm |
| Bottom Size | 490 x 285 x 49.5 mm |
| Recommended Material | Max thickness is 12mm porcelain |
| AC Input | 220/240 Vac 50/60 Hz |
| Wattage | 2,200 W (Total Power Shared) |
| Power | 1600w + 1400w (Up + Down) |
| Platen Burner Size | 210mm + 180mm |
| Operating Cooking Temps | 97°F min / 400°F max. (36°C min / 205°C max.) |
| Non-operating Temps | -40°F to 158°F (-40°C to +70°C) |
| Operating | To 85% relative humidity (non-condensing) |
| Non-Operating | To 95% relative humidity (non-condensing) |
| Operating | to 3,048 Meters |
| Non-operating | to 15,240 Meters |
