Yale - YDM4109A - Digital Door Lock
Product Code: 05-4109-005511
Brand: Yale

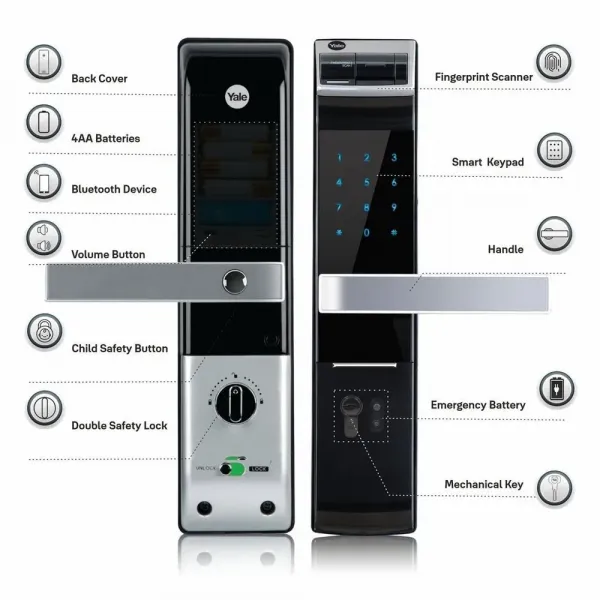

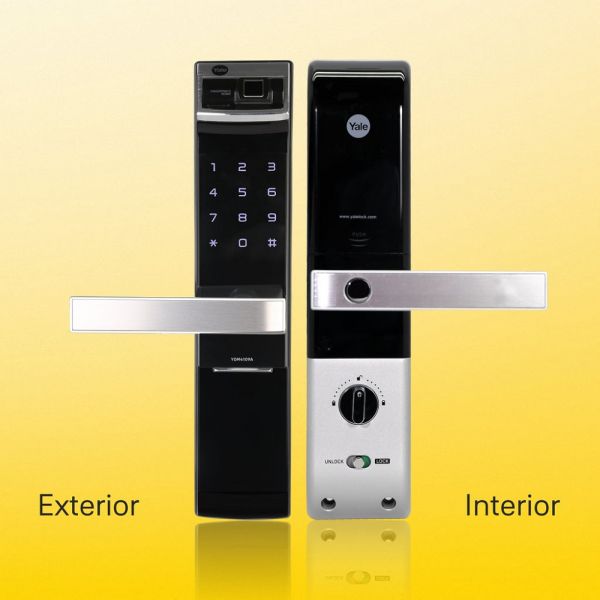

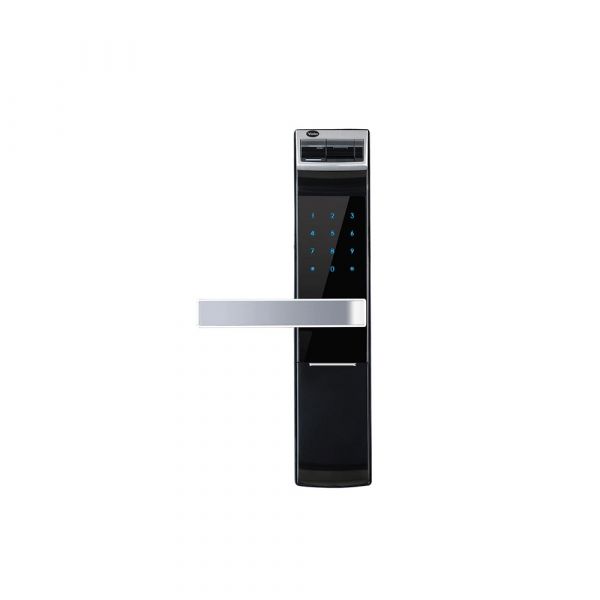

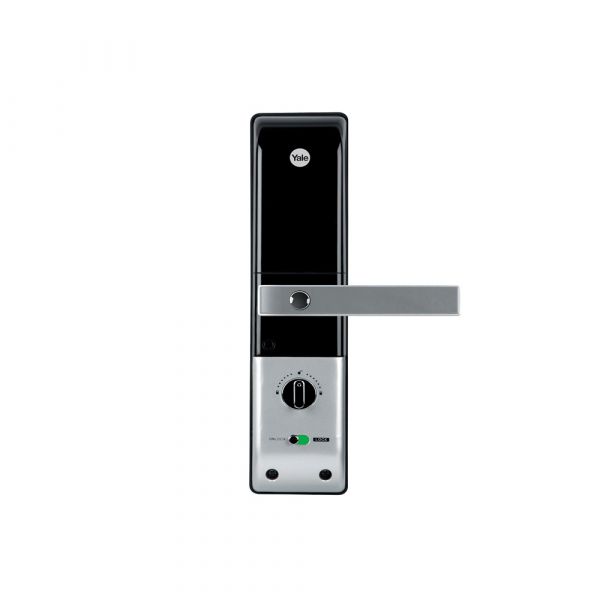

The Yale YDM4109A smart lock is a reliable choice for keyless home entry, making your busy modern life that bit easier. The secure smart lock allows you to lock and unlock your door, send virtual keys to guests and receive notifications all via the Yale Access App*. You can gain access in a way that suits you, with the options to use your fingerprint or a PIN code for simple and convenient access to your home.
App control - Lock and unlock your door, send virtual keys to guests and receive notifications*.
Access in a way that suits you - Unlock your door with the Yale Access App, a PIN code, or your fingerprint.
Auto locking - Automatically locks your door when you leave your home.
Remote functionalities (Yale Connect Wi-Fi Bridge required).
Guest management.
Activity monitoring & notifications.
Tamper alarm.
Low battery warning.
Use your Mechanical key override for emergency access.
Emergency power supply using standard 9V battery.
*Requires Yale Access Module for App functionality & Yale Connect Wi-Fi Bridge for locking/unlocking remotely and voice assistants (sold separately).
Technical Details:
Type: Mortise lock - interior, Exterior
Mechanical keys: 2
Access: Fingerprint access
Access via PIN Code: 6-12 digits
Finish: Silver
Suitable for: left or right opening
Type: DIN type mortise lock
Fingerprint reader: (up to 20 users)
Center distance: 72mm
Backset: 60mm
Door thickness: 40-80mm
Dimensions front body: 28.5 (D) x 68.6 (W)x320.7(H)mm;
Back body: 37(D)x72.8 (W)x 306.6(H)mm
