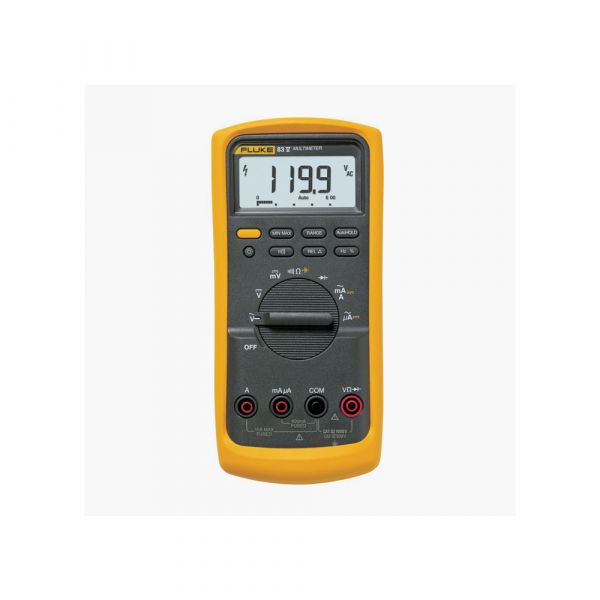

Fluke - 83V Average Responding Industrial Multimeter
Product Code: Fluke-83-V-EUR
Brand: Fluke
Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
Large digit display with bright, two-level backlight makes the 83V significantly easier to read than older models
6000 counts, 3-3/4 digits
Measure up to 1000 V AC and DC
Measure up to 10 A, 20 A for up to 30 seconds
Frequency to 200 kHz and % duty cycle
Resistance, continuity and diode test
10,000 µF capacitance range for components and motor caps
Min/Max-Average recording with Min/Max Alert to capture variations automatically
Relative mode to remove test lead interference from low ohms measurements
Auto and manual ranging for maximum flexibility
Touch Hold to capture stable readings avoiding noisy signals
Large display digits and two-level bright white backlight for increased visibility
Analog bar graph for fast changing or unstable signals
Input Alert provides audible warning against wrong use of input jacks
Improved selectable sleep mode for long battery life
Access door for fast battery changes without breaking the calibration seal
"Classic" design with new removable holster with built in test lead and probe storage
Lifetime warranty
Technical Info:
Operating temperature: –20DegC to +55DegC
Storage temperature: –40DegC to +60DegC
Humidity (without condensation): 0% – 90% (0DegC – 35DegC) 0% – 70% (35DegC – 55DegC)
Operating altitude: 2000 m
Safety Specifications:
Overvoltage category: EN 61010–1 to 1000 V CAT III, 600V CAT IV
Mechanical and General Specifications:
Display: Digital 6000 counts updates 4/sec Analog 32 segments, updates 40/sec
Frequency: 19,999 counts, updates 3/sec at > 10 Hz
Size 201 x 98 x 52 mm (with holster) :
Weight: 355 g
Weigh with holster and flex–stand: 624 g
Warranty: Lifetime
Battery life: Alkaline~400 hours typical, without backlight
