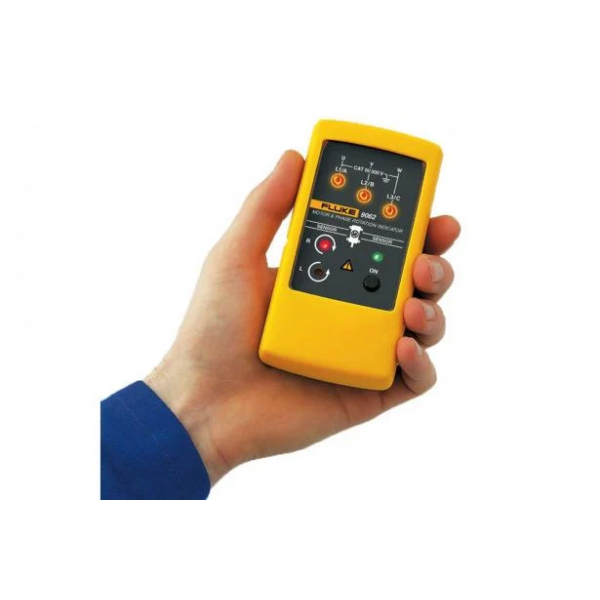

Fluke - Motor and Phase Rotation Indicator
Product Code: Fluke-9062
Brand: Fluke
Unique phase rotation indicator with motor rotation ability
The unique Fluke 9062 provides rotary field and motor rotation indication with the benefits of contact-less detection. Purpose made for commercial and industrial environments, the Fluke 9062 provides rapid indication of 3 phase rotation using test leads supplied or can be used to determine motor rotation on synchronous and asynchronous 3 phase motors. The contact-less detection is ideal for use on motors where the shaft is not visible. The included test probes have a variable clamping range for safe contact, also in industrial sockets.
Includes:
- Test leads (3)
- Test probes (3)
- Alligator clips (3)
- Battery, 9 V
- User manual
Technical specifications
Voltage range: Up to 400 V
Phase display: 120-400 V AC
Frequency range: 2-400 Hz
Operating timer: Continuous
Environmental specifications
Operating temperature : 0 °C to 40 °C
Operating altitude: Up to 2000m
Humidity (without condensation): 15% to 80%
Dust/water resistance: IP 40
Safety specifications
Electrical safety: EN 61010,
EN 61557-7
Overvoltage category : CAT III, 300 V
Mechanical and general specifications
Size: 124 x 61 x 27 mm
Weight: 1 x 9 V
Batteries: 1 x 9 V
Warranty: 2 years
