Hettich - KD Fitting Set - (Socket No. 33 + Screw In Dowel DU 644 + Rastex)
Product Code: 9056601-9047865-1004928
Brand: Hettich

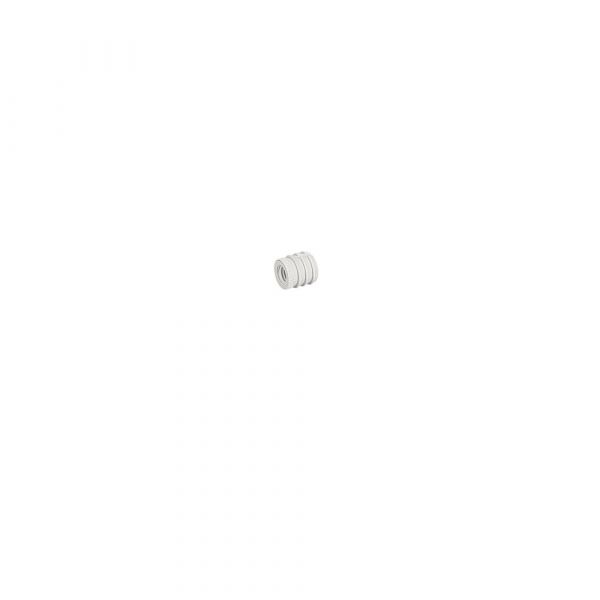

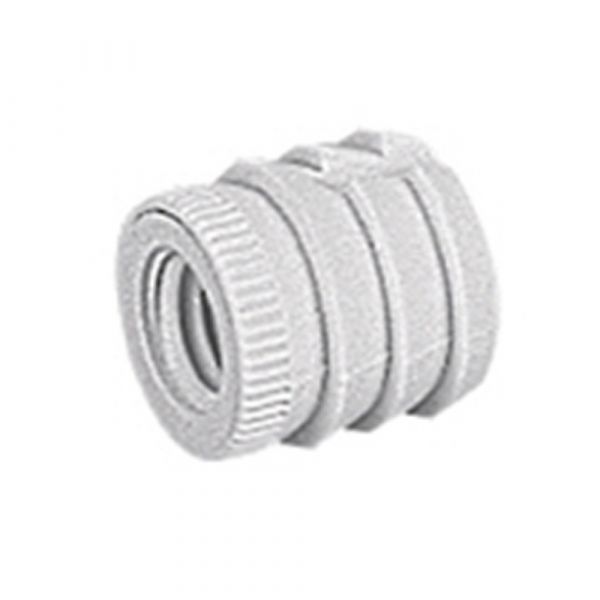

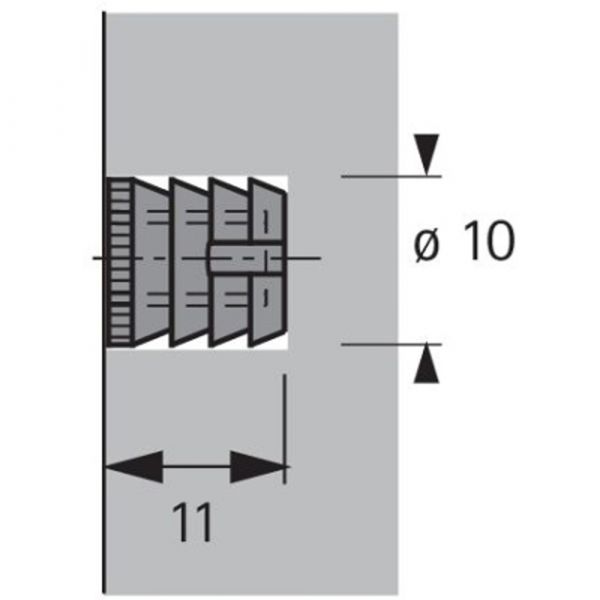

Socket No. 33, M6, Ø 10, Drilling Depth 11 mm
Suitable for use with Rastex 15 / 25, VB 20 / 21 and VB 35 / 36
Plastic, white
For M6 thread
drilling depth 11 mm
Drilling diameter 10 mm
Plastic, white
Length 11 mm
EAN 4023149353345

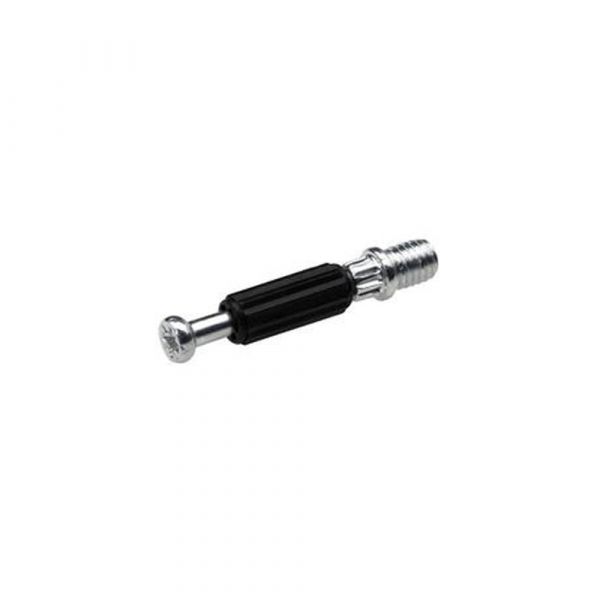

Screw in dowel DU 644, 30 mm, galvanized, black
thread M6 x 7.8 mm
Dowel length 30 mm
Accessories, M6 sockets
Galvanized steel /plastic
Article version Twister DU 644 T, galvanized
Dowel length 30 mm
Thread type M
EAN 4023149353895

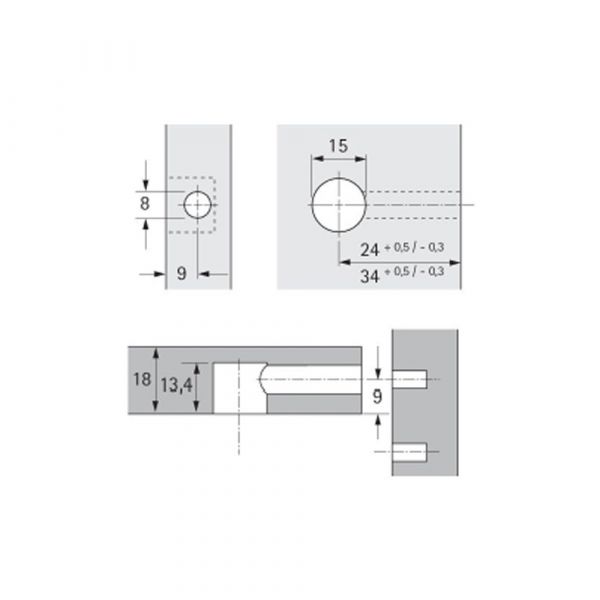

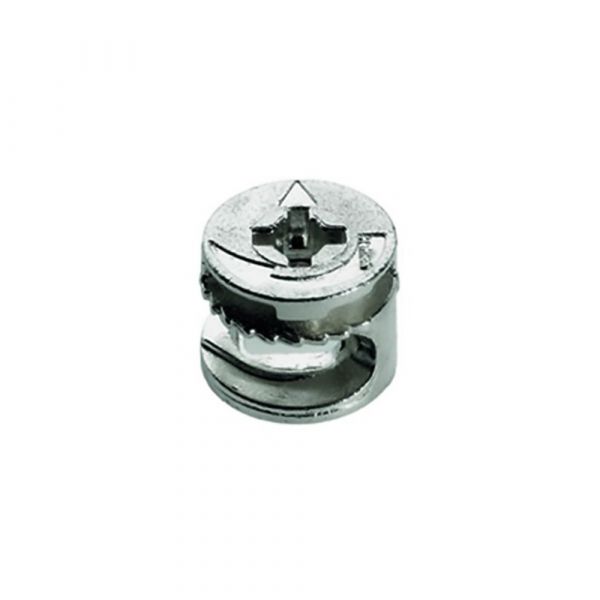

Rastex 15 without rim, nickel plated, 18 mm

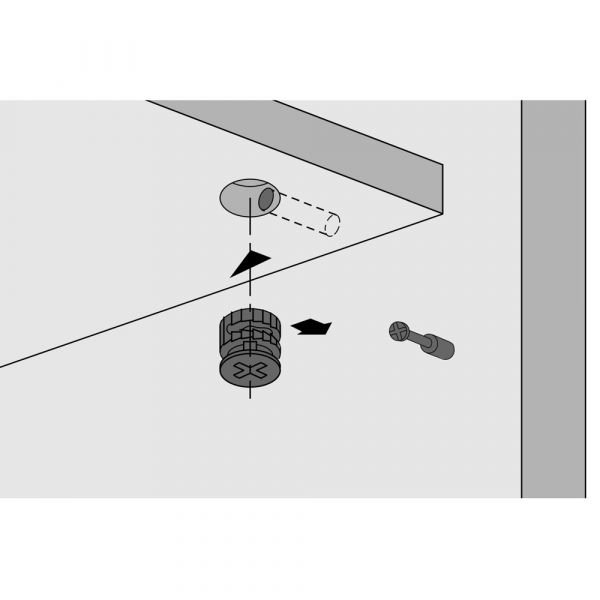

With torque support – allows furniture sides to be pulled into place from space up to 4 mm from the horizontal panel end
Twice as secure thanks to internal and exterior indentations – the dowel is always pulled in to the centered position, ruling out any displacement of furniture components!
Eccentric cam can be tightened with flat-blade screwdriver, Posidrive screwdriver PZ 3 or Allen key
A/F 4
With or without rim, the rim covers any jagged drillings, making an additional cover cap unnecessary
Die-cast zinc
Finish nickel plated
Panel thickness (min.) 18 mm
Panel thickness 18 mm
EAN 4023149357190
