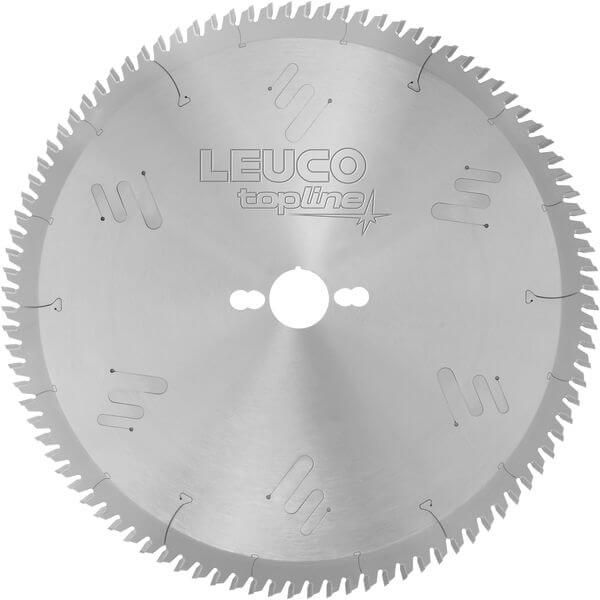

Leuco - Sizing Saw Blades Hw - Lownoise "Tr-F"
Product Code: LE1102370192777
Brand: Leuco
Table saws
Vertical panel sizing saws
For sizing cuts
DESIGN
Vibration and noise damping ornaments.
Additional expansion slots
Cutting material: HL Board 04 plus and HL Board 06.
ADVANTAGES
Extremely low-noise and smooth running thanks to vibration and noise damping ornaments as well as special expansion slot combinations.
For each application case the correct tooth form.
NOTES
Ident-No. 189690: extremely straight steel plate for Striebig panel sizing saws with scoring device.
NL**- Combi2 = 2/7/42 + 2/9/46 + 2/10/60.
NL**- Combi3 = 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60.
Features:

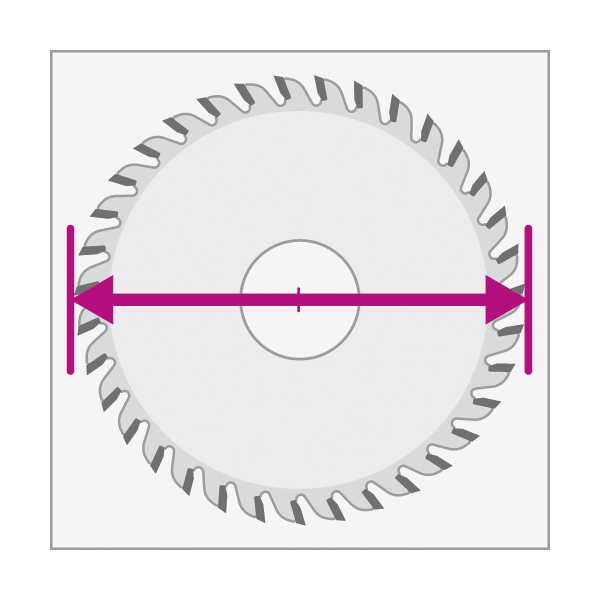

Ø D = Cutting circle diameter 250 [mm]

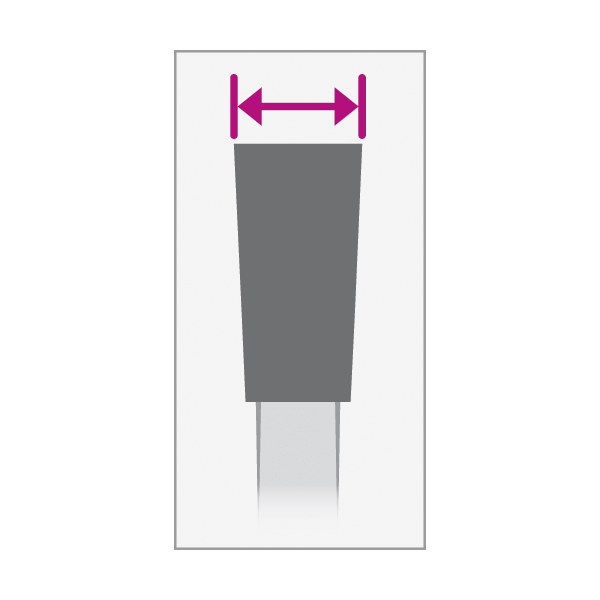

B = Cutting width 3,2 [mm]

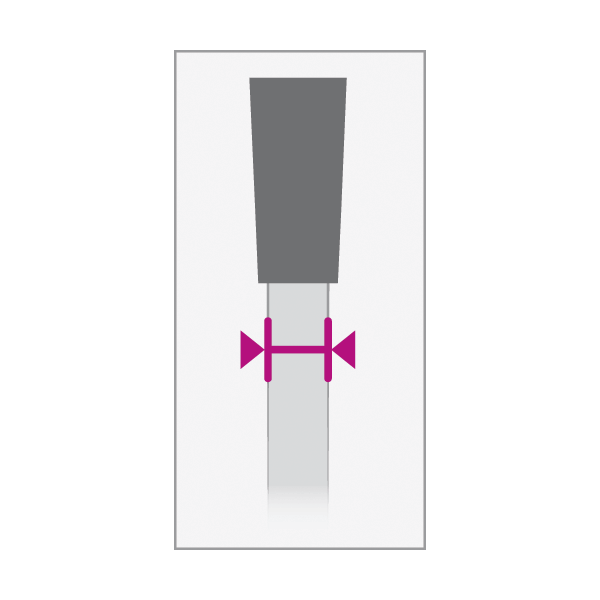

b = Body thickness 2.2 [mm]

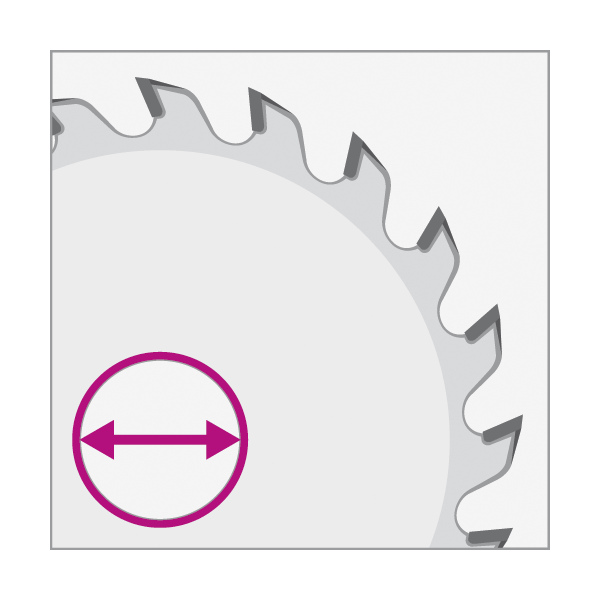

Ø d = Bore diameter 30 [mm]

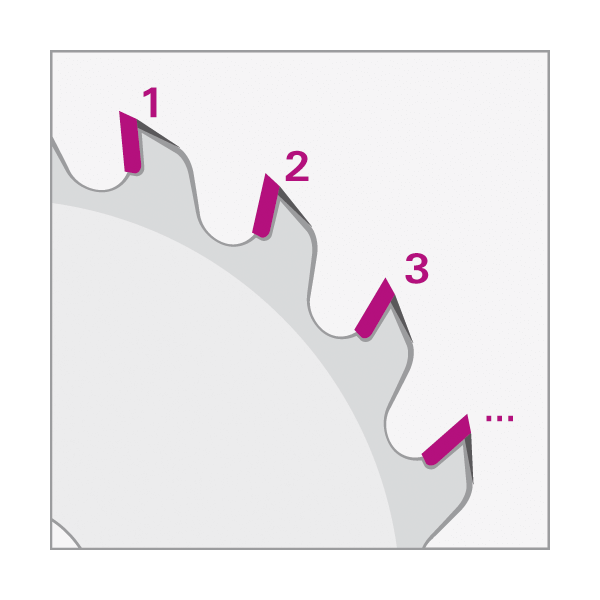

Z = No. of teeth 80

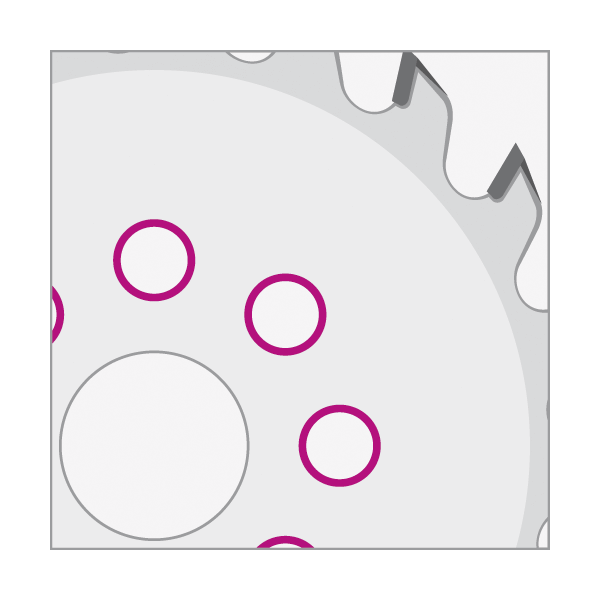

NL = Pin holes 2/7/42 + 2/9/46 + 2/10/60

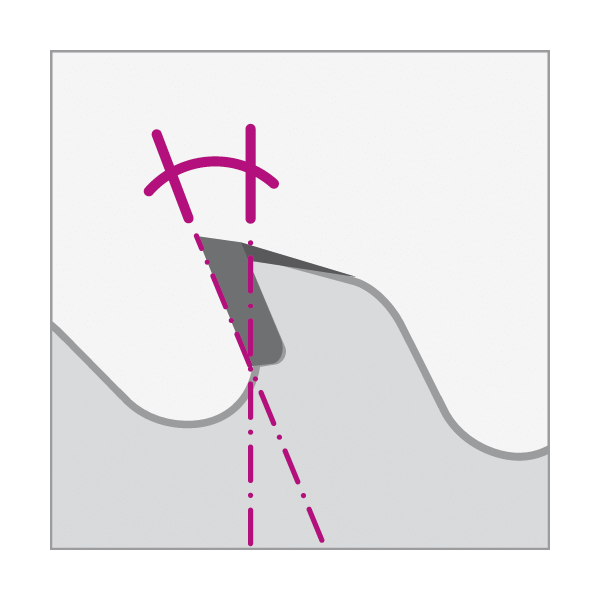

Hook angle = Hook angle 10 [°]
Tooth geometry = Tooth configuration TR-F
LEUCODUR = Cutting material HL Board 04 plus
