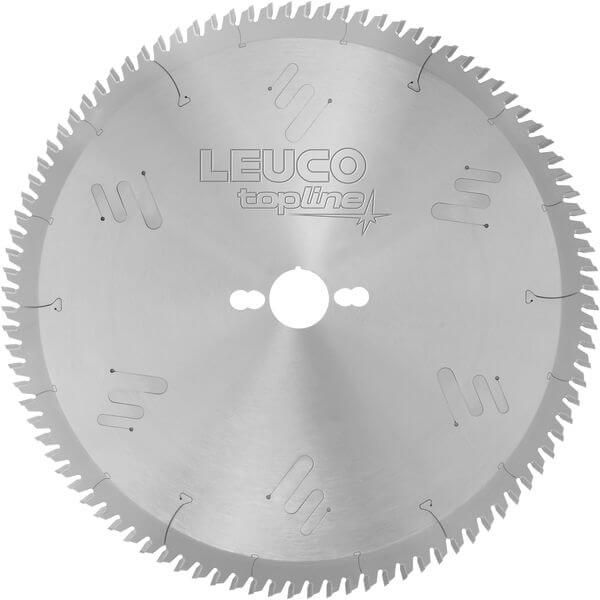

Leuco - Sizing Saw Blades HW Lownoise "TR-F" - 300x3.2x30 Z96
Product Code: LE1102378192459
Brand: Leuco
Specification:
Machine / Application
Table Saws
Vertical Panel Sizing Saws
For Sizing Cuts
Design
Vibration and Noise Damping Ornaments.
Additional Expansion Slots
Cutting Material: HL Board 04 plus and HL Board 06.
Advantages
Extremely low-noise and smooth running thanks to vibration and noise damping ornaments as well as special expansion slot combinations.
For each application case the correct tooth form.
Notes
Ident-No. 189690: extremely straight steel plate for Striebig panel sizing saws with scoring device.
NL**- Combi2 = 2/7/42 + 2/9/46 + 2/10/60.
NL**- Combi3 = 2/7/42 + 2/9/46 + 2/9,5/46,5 + 2/10/60.
Feature

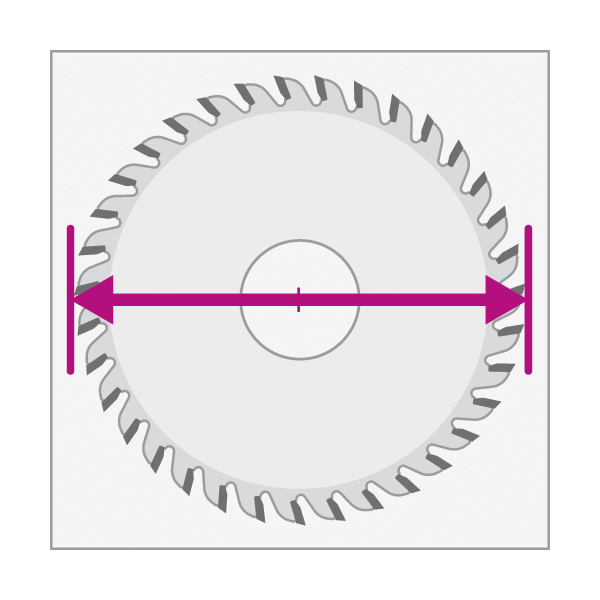

Ø D = Cutting Circle Diameter: 300 [mm]

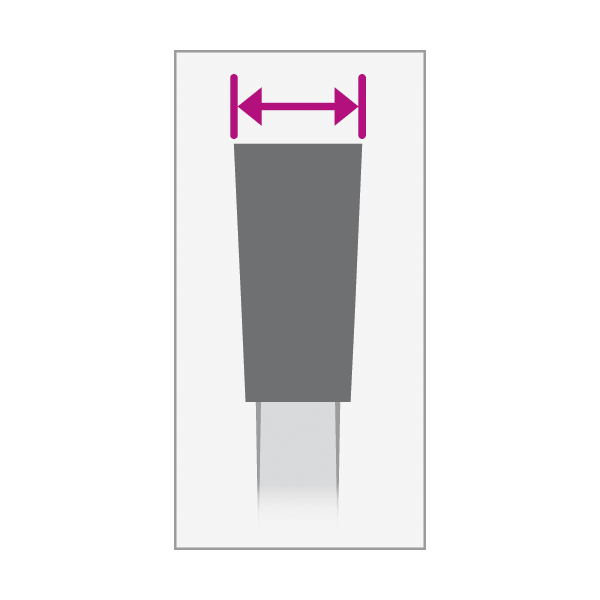

B = Cutting Width: 3,2 [mm]

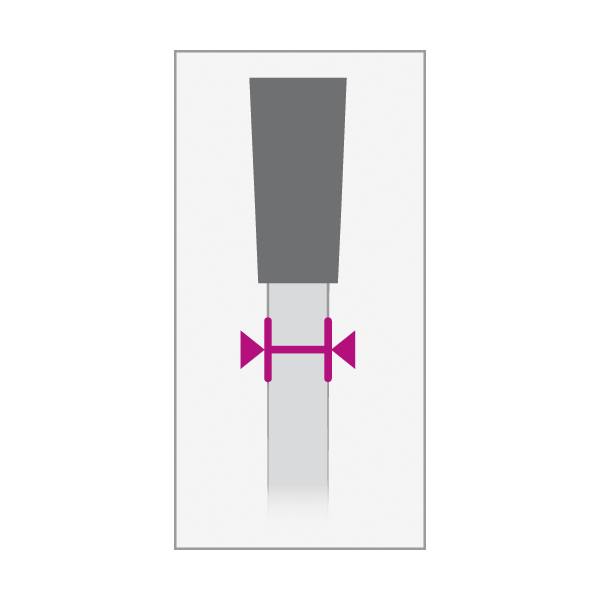

b = Body Thickness: 2.2 [mm]

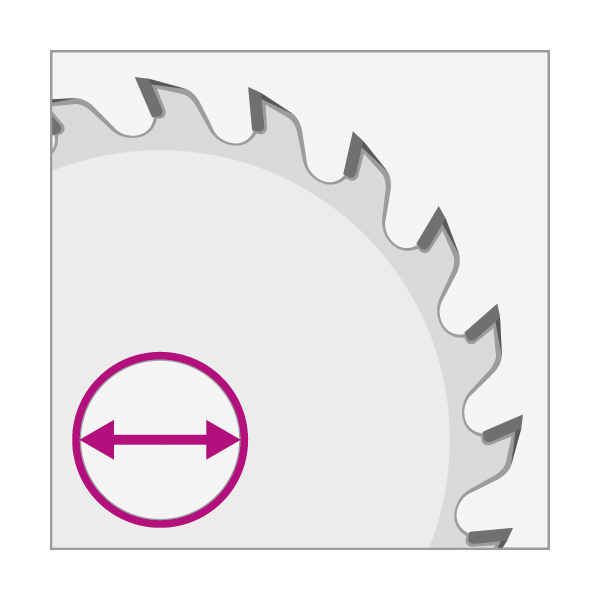

Ø d = Bore Diameter: 30 [mm]

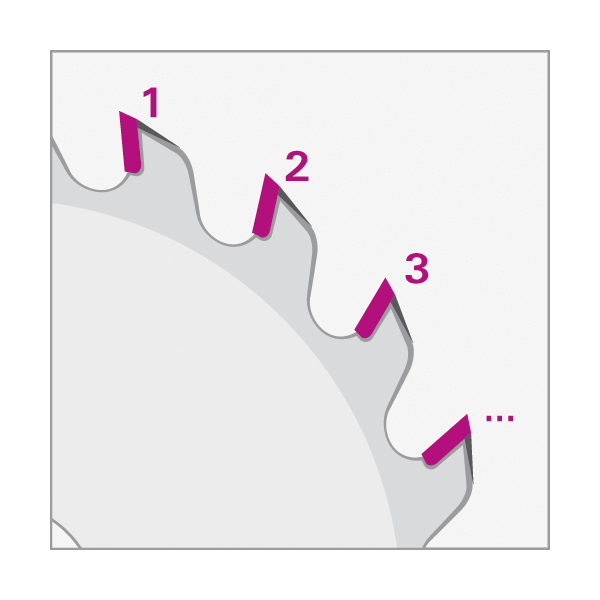

Z = No. of Teeth: 96

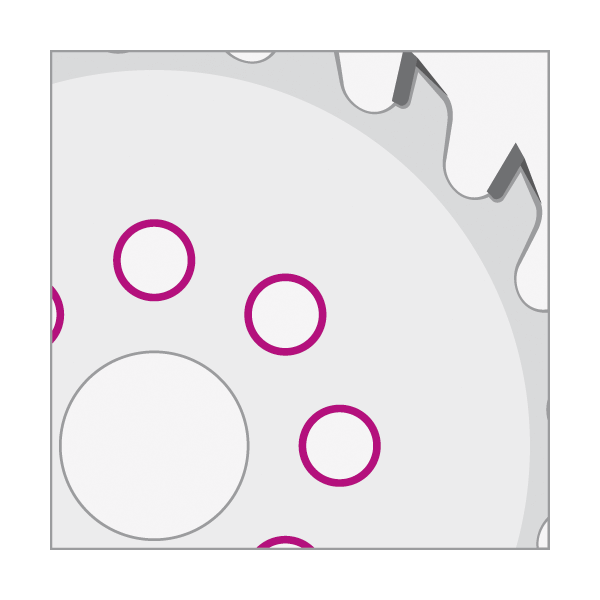

NL = Pin Holes: 2/7/42 + 2/9/46 + 2/10/60

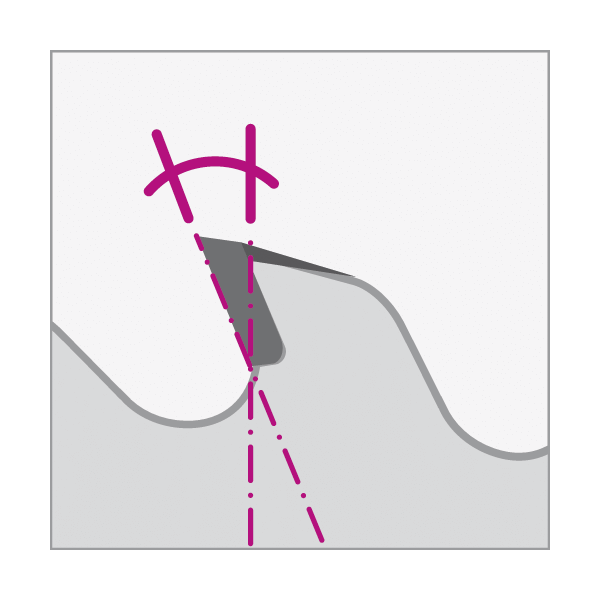

Hook Angle = Hook Angle: 10 [°]

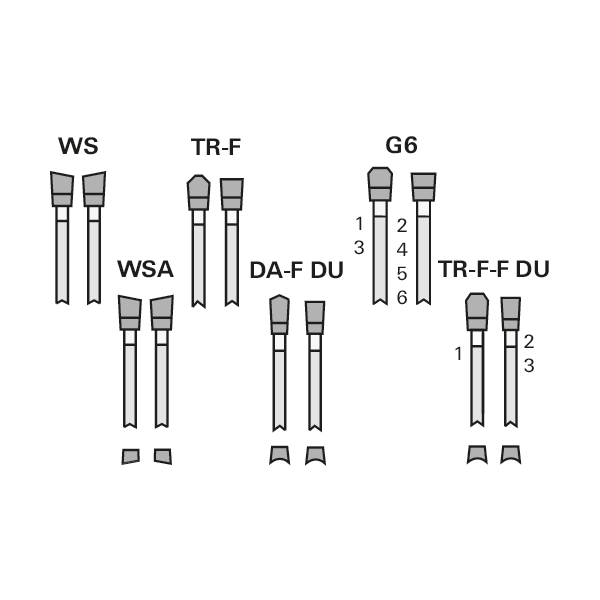

Tooth Geometry = Tooth Configuration: TR-F
LEUCODUR = Cutting Material: HL Board 04 Plus
