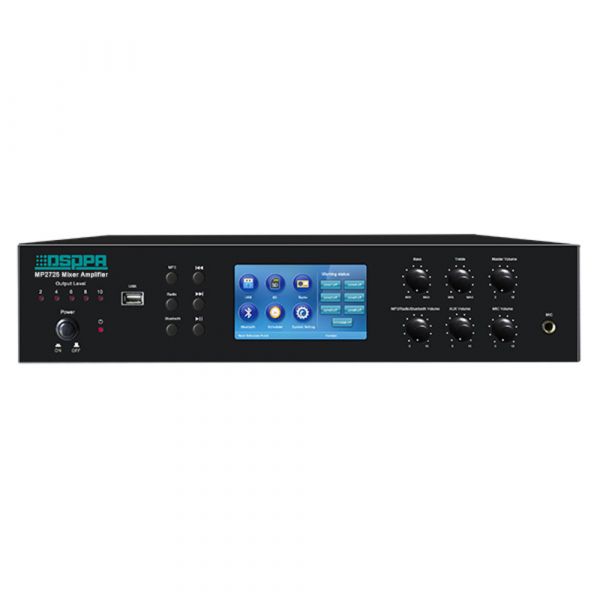

DSPPA 6 Zones Mixer Amplifier with Timer, USB, Tuner & Bluetooth
Brand: DSPPA
The Integrated Mixer Amplifier is 6 zones mix amplifier integrated with the functions of U disk, SD card, tuner, radio, Bluetooth, zones and timer. With various functions, including song files playing, radio, schedule time etc. Touch screen control, all graphical interface, the operation is very simple and user-friendly. The device can meet the requirements of the users and can be widely applied.
Features:
- Power output: 100V
- Support USB/SD/MP3/AM & FM/Bluetooth/schedule player Built-in Bluetooth receiver module.
- 6 zones output with separated switch control
- 4.3” TFT capacitance touch screen.
- 1 AUX ,1 Mic input ,1 AUX output.
- Built-in 4G MP3 program memory.
- Built-in radio; it can be manually / automatically searched and can store 40 radio channels.
- Separate volume control for MP3/FM/Bluetooth, AUX, Mic inputs
Specifications:
| Model | MP2725 | MP2735 | MP2765 |
| |||
| Rated Output | 250W | 350W | 650W |
| |||
| Output Method | 100V | 100V | 100V |
| |||
| Harmonic Distortion | ＜0.5% (1kHz, 1/3rated power) | ||||||
| AUX OUT | 100Ω, 1V (0dBV) | ||||||
| Input | MIC: 600Ω; 10mV (±10% ) | ||||||
| LINE: 10kΩ; 300mV (±10%), unbalanced | |||||||
| LINE Freq. Resp. | 50Hz-18kHz (±3dB) | ||||||
| MIC Freq. Resp. | 40Hz-16kHz (±3dB) | ||||||
| Harmonic Distortion | ＜0.5% (1kHz, 1/3 rated power) | ||||||
| SNR | MIC: 70dB | ||||||
| LINE: 85dB | |||||||
| Tone Adjustment | BASS: ±10dB (100Hz) | ||||||
| TREBLE: ±10dB (10kHz) | |||||||
| Protection | AC fuse, DC output protection, Overload protection | ||||||
| Mute Function | The microphone input can override other inputs (Attenuation 0 to -30dB) | ||||||
| Power Supply | AC220-240V/50-60Hz | ||||||
| Power Consumption | 120W | 220W | 350W | 450W | 560W | 800W | |
| Dimension (mm) | 430×360×88 | ||||||
