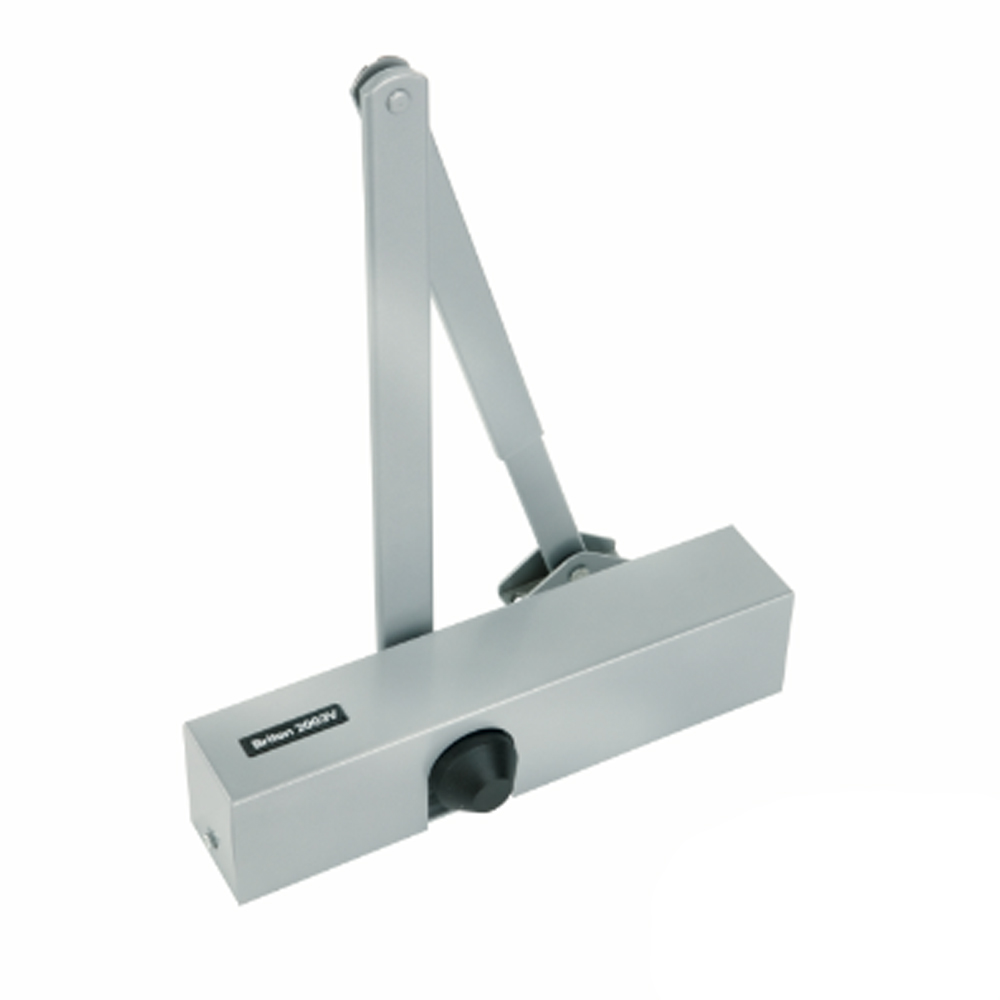

Briton - Surface Overhead Projection Arm Door Closer Silver Colour Finish
Product Code: 2003V.SES
Brand: Briton
The Briton 2000 Series offers adjustable and fixed strength power sizes providing a comprehensive package of solutions to suit most door closing applications.
When the situation of use and the door size and weight is known, fixed strength closers provide an economic solution.
With little on-site adjustment needed, installation is quick and trouble-free.
The adjustable power 2003V provides the flexibility to ‘fine tune’ the closing power of the door control in order to achieve the low ‘opening forces’ necessary to satisfy the requirements of Approved Document M of The Building
Cast aluminium body.
Classic Type Square Cover and Arm.
Steel rack and pinion mechanism is heat treated for strength and durability.
Forged, heat treated and ground steel piston for rugged durability.
High quality hydraulic fluid with built-in temperature compensation ensures reliable performance without the need for seasonal adjustment
Stylish flatform arm in finish to match door closer cover.
The mechanism is safety valve protected to prolong the life of the closer against abuse and misuse.
Precision needle roller bearings for optimum performance and efficiency.
Classic fabricated cover conceals fixings and adjustment screws, reducing the risk of vandalism. Available in a range of architectural finishes with matching arms or track to complement a variety of door hardware ranges.
Briton badge of authenticity.
Accufit template increases the accuracy of installation and helps to reduce installation time
Testing
CE marked to EN1154 - AD0013 (Briton 2003) - AD0014 (Briton 2004) - AD0168 (Briton 2003V)
Fire tested to EN1634 on timber doors to achieve a 2 hour fire rating, and 4 hours for metal doors.
Certifire Approved CF111
Technical Details
Item Ref: 2003V
Description: Closer with Backcheck, Square Cover and Flat Form Armset
EN Power Size: Spring Power Adjustable size 1-4
Finishes: SES Silver Coloured
