Ceam - 1432 Model 3D Adjustable Concealed Hinges

Brand: Ceam

1432 Model

The new hinge model 1432 has been elegantly designed and specifically engineered for heavy-duty applications. For full height doors, entrance doors with door closers, solid wood doors 1432 is always safe and reliable.

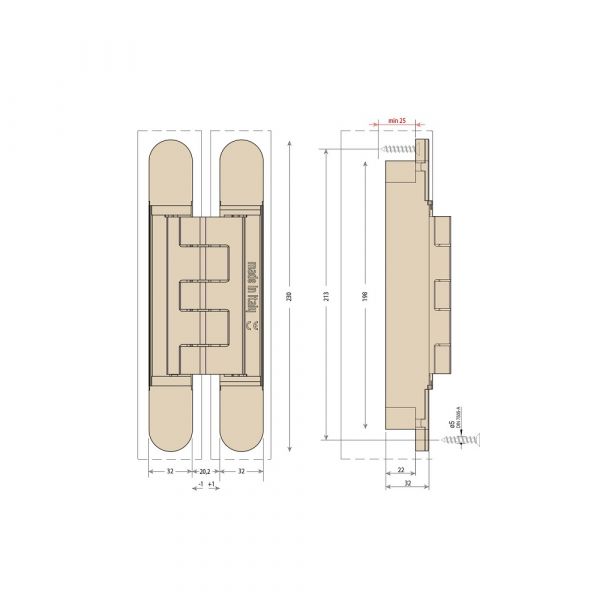

Height:     230 mm

Width:      32 mm

Depth:     32 mm

Suitable for doors: Wood, Alluminium, Steel

Minimum door thickness: 38 mm

Load capacity 2 hinges: 155 kg

Load capacity 3 hinges: 175 kg

Fire resistance: n.d.

Utilization: Residential, Commercial, Office, Entrance door, Marine use

For special door sizes and use of door closer devices, please read carefully the technical guidelines.

Architectural Appeal

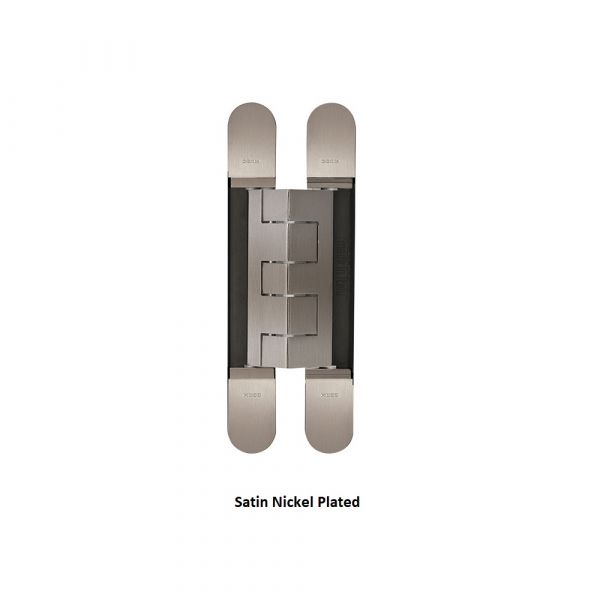

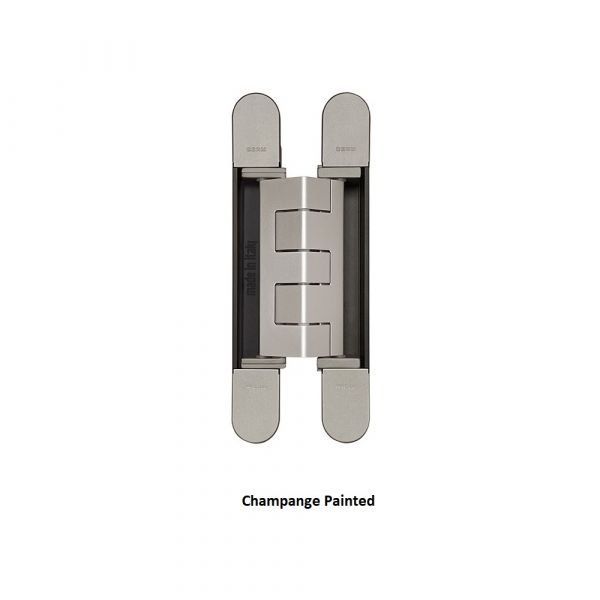

Concealed hinges elegantly designed and finished in 12 stunning galvanic colours.

Adjustable

Fluid 180° opening and adjustable in 3 dimensions: height, width and depth.

Minimal

Minimally invasive, symmetric therefore versatile, all Ceam hinges leave room to client’s imagination. They can be installed on wooden, aluminium or steel profiles. Minimum hinge depth 18mm “Best in Class”

Up To 150kg

Safe, solid, reliable: our hinges are tested to last for 200.000 cycles and now also on Fire rated doors.

Engineering

Manufactured in 3 different materials zinc-alloy, stainless steel and fiberglass, all ceam hinges are symmetrical and engineered to solve the new challenges of the modern buildings.

Easy Installation

Easy installation: the door part and the frame part can be assembled separately in production and united on-site.

100% Made In Italy

From 1962, we specialize with dedication, in manufacturing concealed hinges.

Ultra Certificate

Company ISO 9001-2015 - Hinges tested according to safety European norms CE, also suitable for Fire rated doors up to EI120.
