FritsJurgens - Adjustable Pivot Hinge System M+
- View all variations as list
CODE | Class | Availability | Price | ||
---|---|---|---|---|---|
![]() |
HDH/PVST.MPLUS.70.B.S.SS
|
In stock
|
AED5,19400 | ||
![]() |
HDH/PVST.MPLUS.70.C.S.SS
|
In stock
|
AED5,56500 | ||
![]() |
HDH/PVST.MPLUS.70.D.S.SS
|
In stock
|
AED6,19500 | ||
![]() |
HDH/PVST.MPLUS.70.E.S.SS
|
In stock
|
AED6,51000 | ||
![]() |
HDH/PVST.MPLUS.70.F.S.SS
|
In stock
|
AED7,69600 | ||
![]() |
HDH/PVST.MPLUS.70.G.S.SS
|
In stock
|
AED8,21600 | ||
![]() |
HDH/PVST.MPLUS.70.A.S.SS
|
In stock
|
AED4,70800 |
![](https://arabtools.com/images/thumbnails/80/80/logos/12/logo-arab-tools_7jx8-kx_xckt-uh.png)
Brand: FritsJurgens
System M+ takes the System M pivot hinge range to a new level. This adjustable pivot hinge brings Latch Control to ensure proper latching, guaranteed control over the movement of doors up to 500 kg, and extra adjustability for the movement of the door.
System M+, like System M, is equipped with FlowMotion technology which creates and controls the movement of the pivot door.
- Damper Control
- 30° Speed Control
- Latch Control
- Guaranteed control over the movement from 20 to 500 kg
8MM IN THE FLOOR | The floorplate fasteners only need to be mortised 8mm in the floor, which means System M can be applied in combination with floor heating. |
MODEL SELECTOR | To ensure the pivot hinge provides the appropriate movement for your door, System M+ is available in seven models suited to the weight and width of the door. |
LOAD-BEARING CAPACITY | System M+ is suitable for both light and heavy pivot doors covering a range between 20 and 500 kg. |
MINIMUM DOOR THICKNESS | 40 mm or 50 mm, depending on the suitable model for your door measurements and weight. |
MINIMUM-INSTALLATION DIMENSIONS AROUND THE DOOR | Below: 11 mm Above: Minimum 4 mm, maximum 10 mm Door/closing side. |
HOLD POSITIONS | 0˚, 90˚ and -90˚ |
MINIMUM DISTANCE FROM THE PIVOT POINT TO THE SIDE OF THE DOOR | 91 mm |
MAXIMUM DOOR DIMENSIONS | Unrestricted up to a maximum weight of 500 kg. |
FOR ANY TYPE OF PIVOT DOOR | System M+ is suitable for interior and exterior doors. For more information please contact us. |
FLOATING FLOORS / SUSPENDED CEILINGS | It is possible to fit a pivot door if the floor plate or ceiling plate is connected to the structural subfloor or ceiling. |
PACKAGING | Delivered as a complete set with top pivot, floor plate, ceiling plate and mounting accessories. |
GUARANTEE | Two years conditional guarantee. |
Components | |

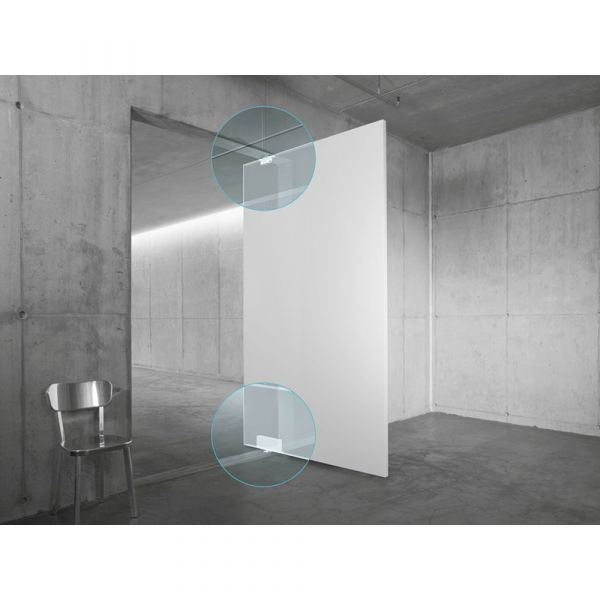

CEILING PLATE | The ceiling plate is fitted in the ceiling, where the pin of the top pivot seamlessly fits into the hole in the ceiling plate. The ceiling plate is available in two finishes: brushed stainless steel and black. |
TOP PIVOT | The top pivot is mounted into the top of the door. It uses a so-called pinhole connection, in which the pin is fixed to the top pivot and goes into the hole in the ceiling plate when the door is placed. |

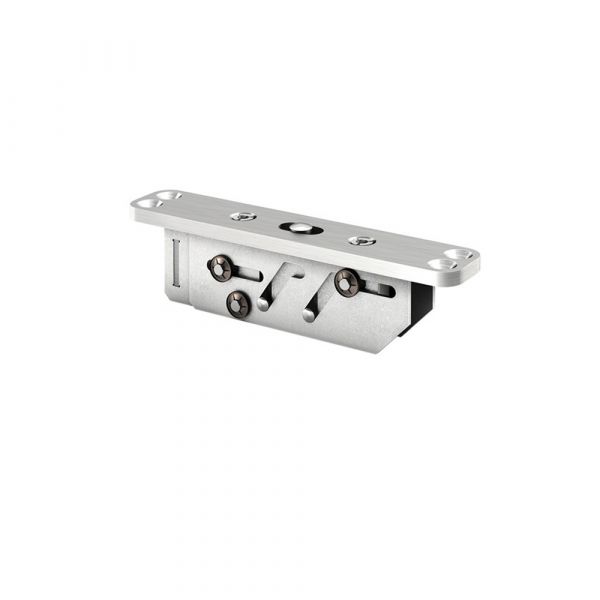

SYSTEM M+ | FritsJurgens’ adjustable pivot hinge System M+ is integrated into the bottom part of the door. The oval base of the hinge fits exactly into the slot in the floor plate that supports the door. |

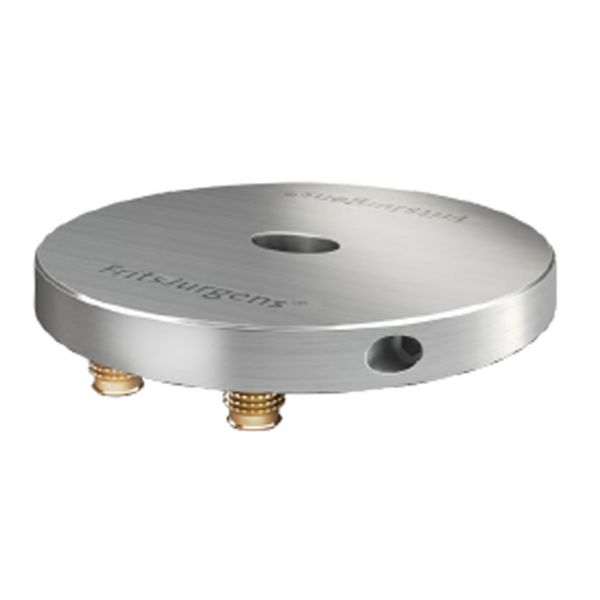

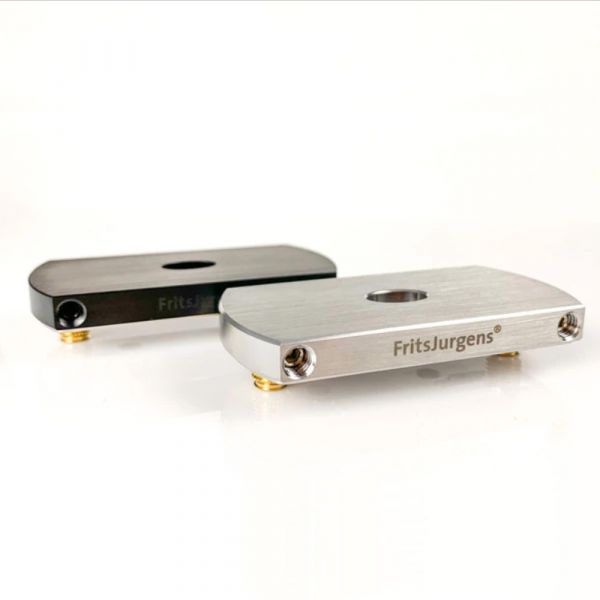

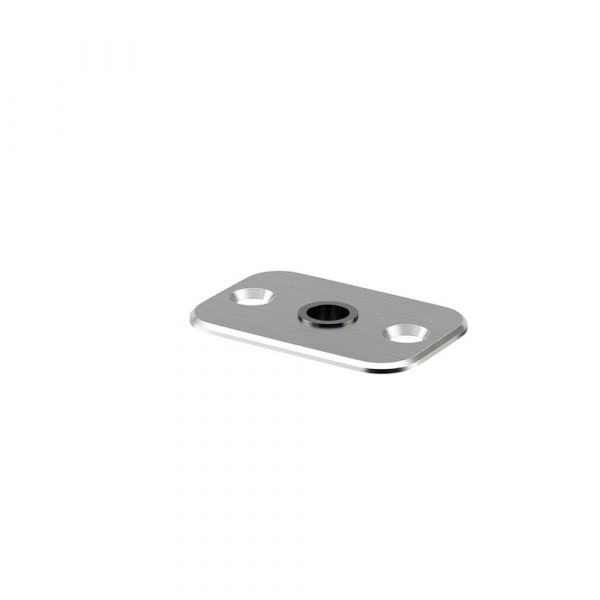

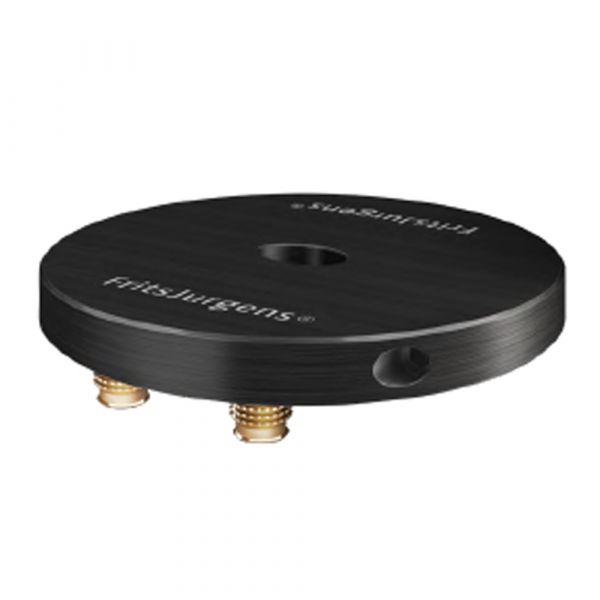

FLOOR PLATES | Floor plates for System M+ can be obtained in two finishes and shapes. There is a round and a rectangular version, both in brushed stainless steel and in black. They are made of solid tempered steel (Series 420) and thus fully scratch resistant. |
Specifications
System M+ — Class A-E
System Specifications | |

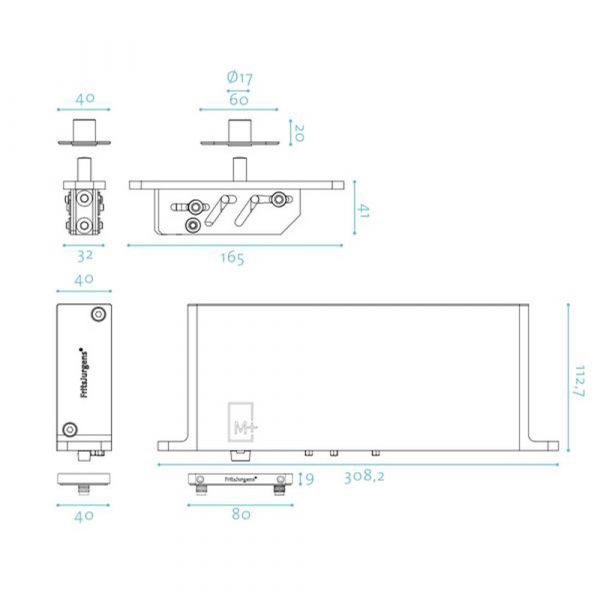

Dimensions | 294,8 x 32 x 99,6 mm |
Weight | 2,6 kg |
Material | Stainless Steel | Anodized aluminum |
Corrosion resistance | EN 1670 - class 5 (norm:0-5) |
Door Specifications | |
Door acting | Single & double-acting |
Door weight | Between 20 and 349 kg |
Minimum door thickness | 40 mm |
Maximum door width | 400 - 5000 mm |
Top gap | 4-10 mm |
Bottom gap | 11 mm |
Hold positions | 90º, -90º and 0º |
| |
Functionalities | |
Free Swing | No |
Damper control | Yes |
30° Speed Control | Yes |
Latch Control | Yes |
System M+ — Class F-G
System Specifications | |
Dimensions | 308,2 x 42 x 112,7 mm |
Weight | 3,6 kg |
Material | Stainless Steel | Anodized aluminum |
Corrosion resistance | EN 1670 - class 5 (norm:0-5) |
Door Specifications | |
Door acting | Single & double-acting |
Door weight | Between 350 and 500 kg |
Minimum door thickness | 50 mm |
Maximum door width | 400 - 5000 mm |
Hold positions | 90º, -90º and 0º |
| |
Functionalities | |
Free Swing | No |
Damper Control | Yes |
30° Speed Control | Yes |
Latch Control | Yes |
Generally:
- Classes A to E: Suitable for lighter to medium-weight doors with standard dimensions.
- Classes F and G: Designed for heavier and larger doors.
