Hawa - Sliding Door Hardware Junior 40/B - Adjustable Vertically ± 3 mm
HW25903
Item Code: HW25903
Brand: Hawa
The HAWA-Junior 40/B is a hardware system with top fixed suspension for low headroom applications and for sliding doors with a weight of up to 40 kg (88 lbs.).
Features

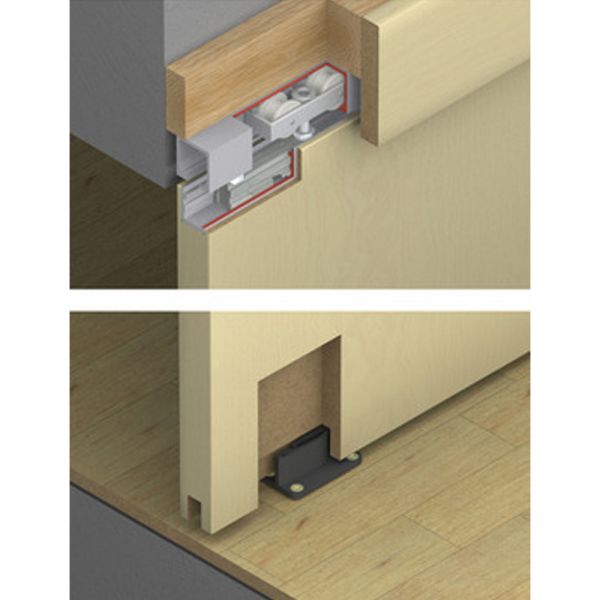

Top fixed suspension
Low headroom applications
Light and silent action

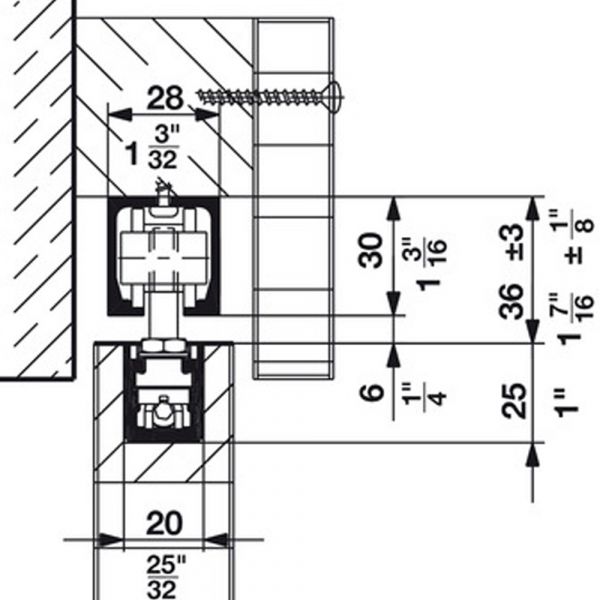

Adjustable vertically ± 3 mm

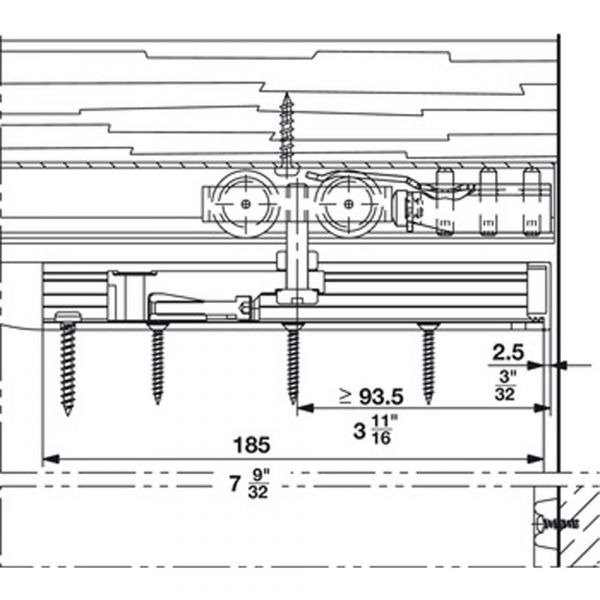

Track stop, adjustable retaining force

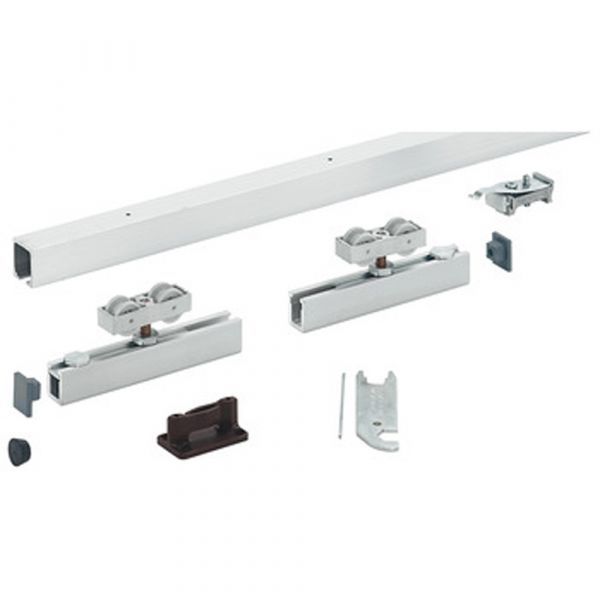

Set:
- 2 Two-wheeled trolley, M8, with plastic wheels.
- 2 Top fixed suspension with plate and hanger bolt M8, frontal attachment.
- 2 Cover cap for suspension profile, plastic anthracite-grey RAL 7016.
- 1 Track stop, adjustable retaining force.
- 1 Screw-on rubber door stop.

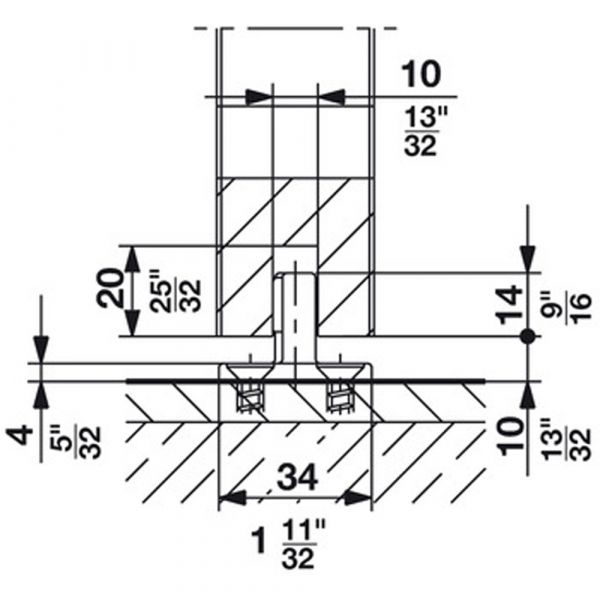

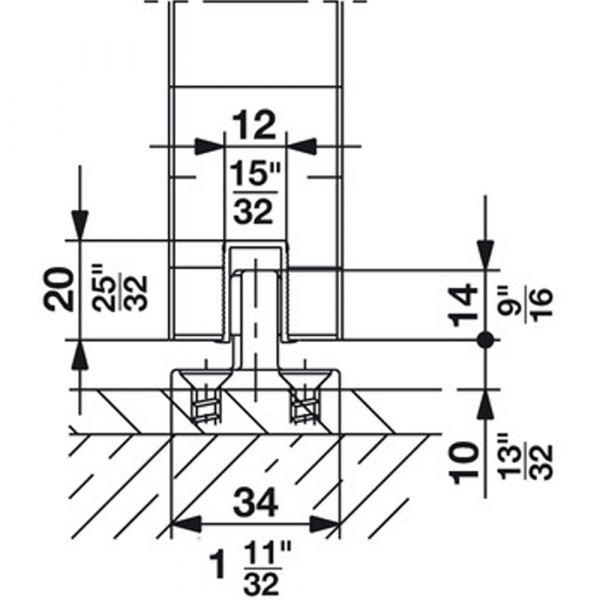

- 1 Guide, rattle proof, for screw mounting to floor, groove width 10 mm (13/32"), black plastic.
- 1 Suspension assembly locking wrench.
- 1 Hex key, 4 mm (5/32"), length 160 mm (6 5/16 ").
