Hawa - Sliding Door Hardware Junior 120/A For Panel Weight Up To 120kg
HW25907
Product Code: HW25907
Brand: Hawa
The Hawa-Junior 120/A is a hardware system with bracket suspension for panel weight up to 120kg (264Ibs.)
Smooth quiet operation.
Outstanding durability.
Rattle-free bottom guide.
Simple installation.
Steel suspension bracket.
Vertically and laterally adjustable.
Door stop with adjustable retention spring.
Load bearing capacity Max: (264 lbs) 120 kg.

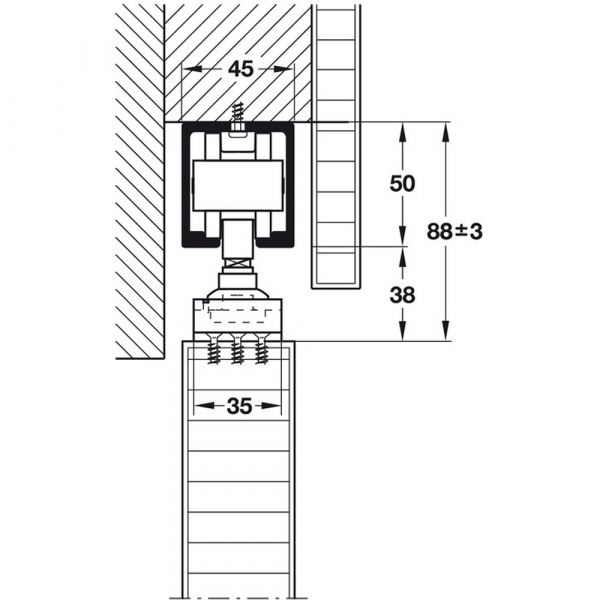

For door thickness: min. (1 3/8”) 35 mm.
Application: For 1 and 2 sliding wood doors.
Adjustable vertically ± 3mm (1/8") and laterally.

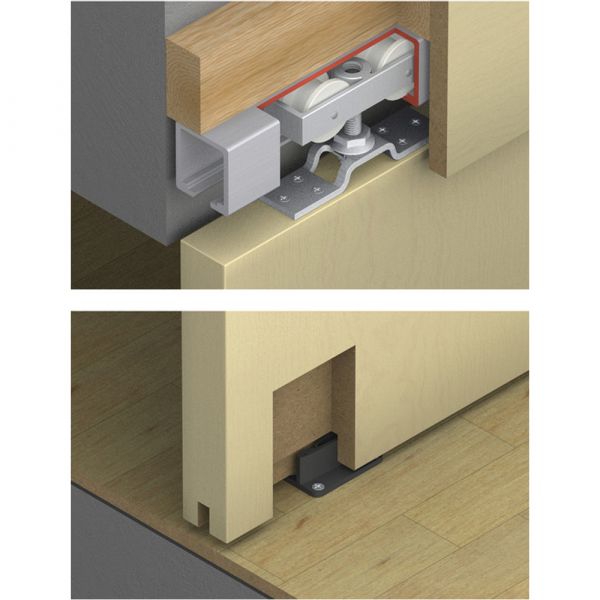

Components:
- 2 Trolley hanger, M12, sleave bearing mounted, high grade polyamide tandem rollers.
- 2 Top fixing plate, galvanized steel, with hanger bolt M12 and fixing screws.
- 1 Track stop, adjustable retaining force.
- 1 Screw-on rubber door stop.

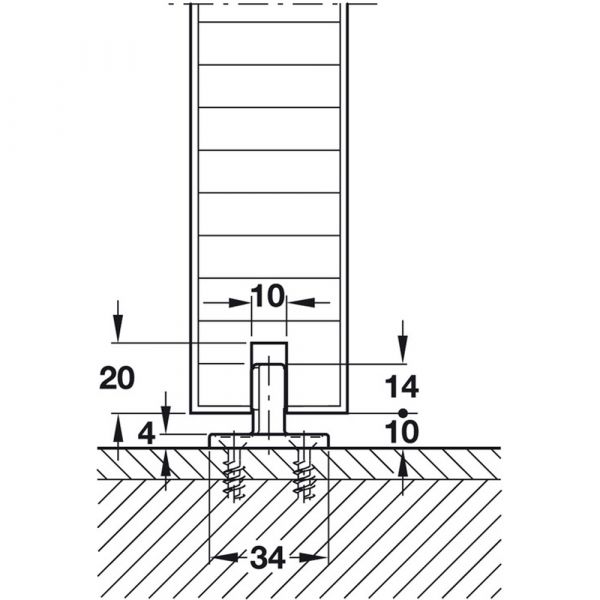

- 1 Guide, rattle proof, for screw mounting to floor, black plastic.
- 1 Suspension assembly locking wrench.
