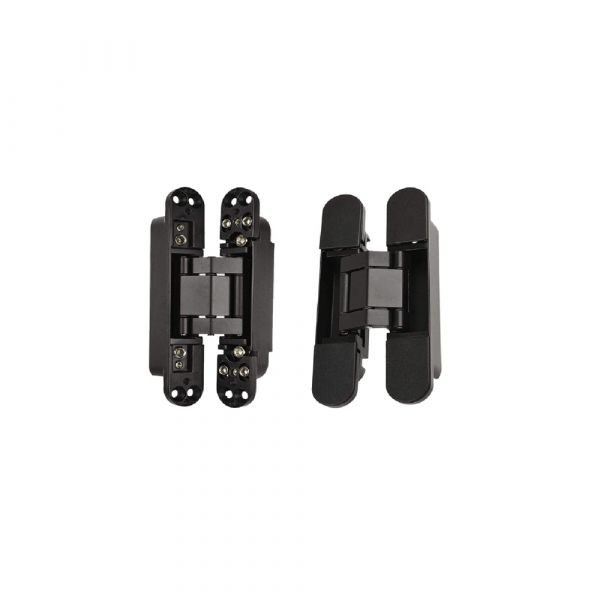

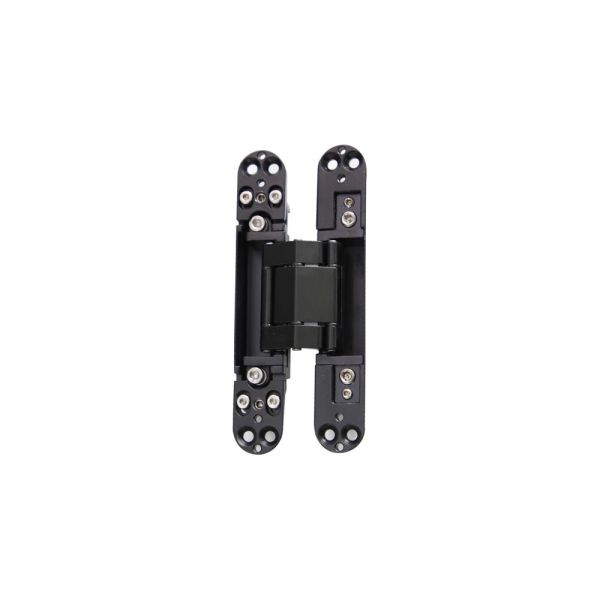

Hettich - 3D Adjustable Concealed Hinges - Black Painted
Brand: Hettich
Zinc Alloy Die Die-cast Hinge with SS 304 connecting flanges.
Loading Capacity up to 40/ 80/ 120 kg per 2 hinges.
Tested for 200,000 cycles.
Hinge with 3 Dimension adjustment to create perfect alignment.
Supplied with SS 304 screws Opening angle 180 degree.
Recommended for Both Steel & Wooden doors.
Specifications
Suitable for door thickness: 35mm respectively
High Quality PVD Coating Thickness: 16 Micron
Hinge Length: 150 / 177 / 246 mm respectively

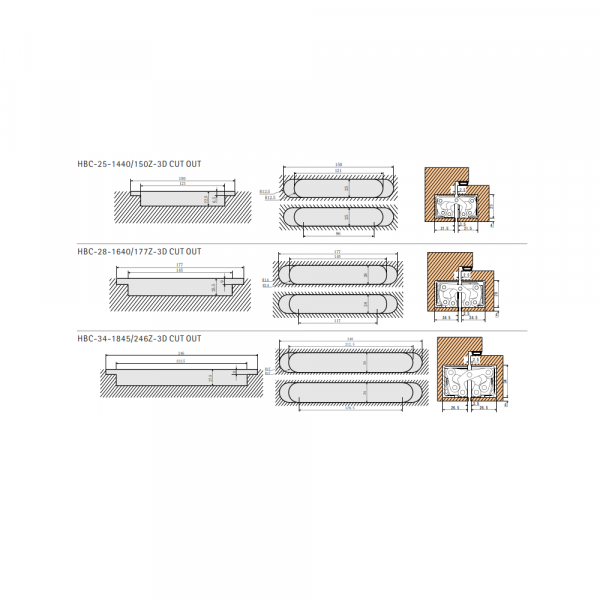

Milling for doors: According to drilling pattern
3-D Adjustment Range: +/- 3 mm Up and down, +/- 2 mm Left and right +/- 1 mm Front and back
Pointed wood screws Supplied: 5x30 mm
Finish Available: Black Painted
Maximum opening angle: 180°
Material: Base - Zinc alloy, Connector- Aluminium alloy
Door types: Unrebated security
Pair: Left / Right useable
