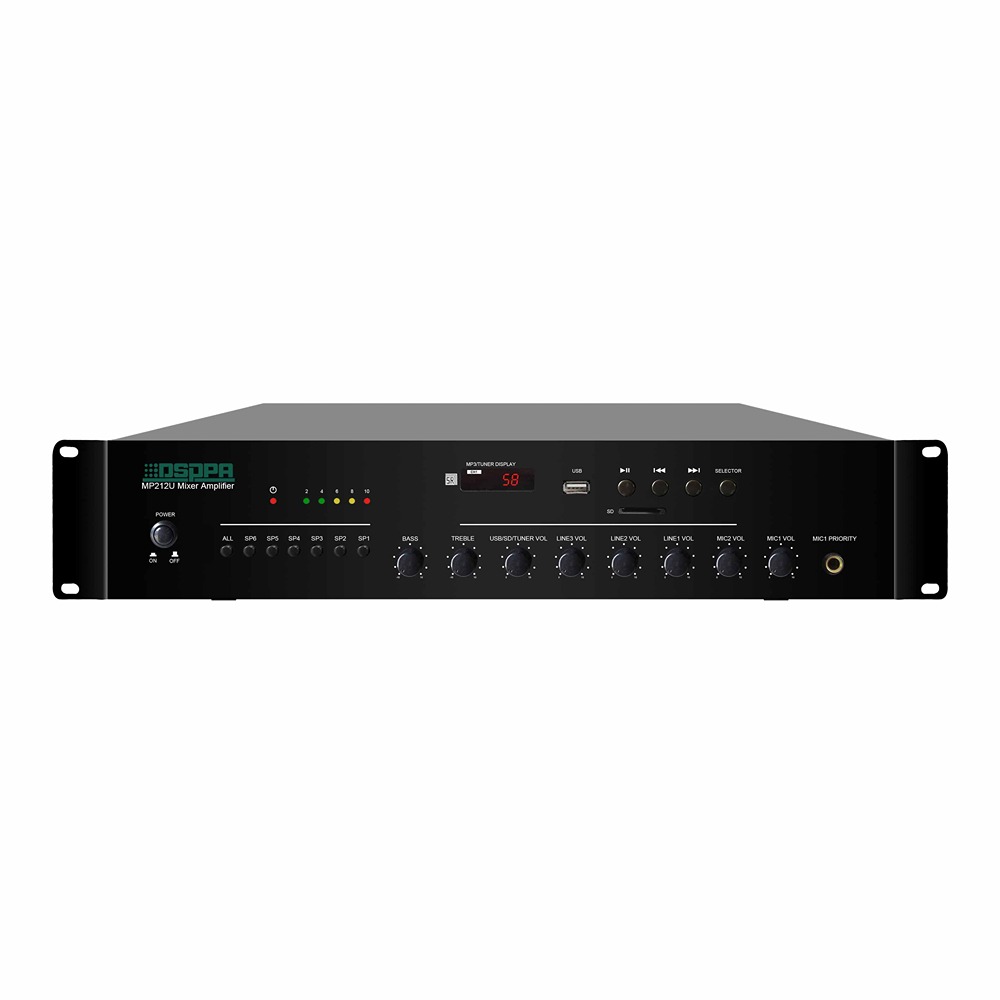

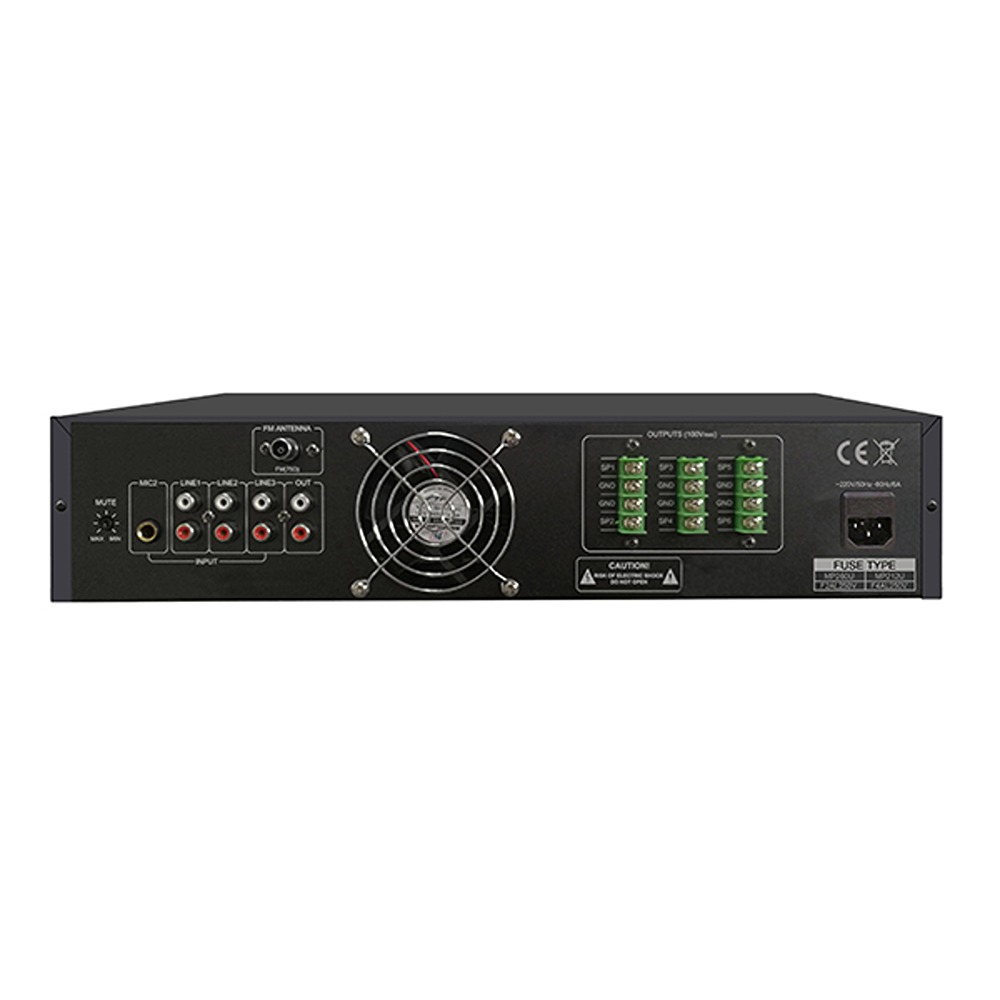

DSPPA 120W 6 Zones USB/SD/FM Mixer Amplifier
Product Code: MP212U (with BT)
Brand: DSPPA
Built-in MP3/Tuner/USB/SD card inputs.
6 zones output with pre-amplifier, 6 channels @ 100V outputs.
3 LINE& 2 MIC inputs with individual volume control.
Mute function, easy to insert priority broadcast.
Each zone with independent switch; bass and treble controlled.
With level indicators and 5-unit LED display.
Output short-circuit protection.
Specification
| Output regulation | Less than 3dB。 |
| Speaker output | 100V |
| AUX output | 0dBV |
| Input Sensitivity | Mic1,2 : 3mV(±0.5mV) unbalanced |
| Line 1,2,3 : 300mV(±30mV) unbalanced | |
| Frequency response | 65Hz-20kHz（±3dB） |
| Distortion | Less than 1% at 1kHz , 1/3 rated output voltage |
| The ratio of signal to noise ratio | Bigger than 80dB |
| Tone | Bass: ±12dB (100Hz) |
| Treble: ±12dB (10kHz) | |
| FM | 87.5MHz-108.0MHz |
| MP3 Input Sensitivity | 230-280mV |
| Protection | AC fuse; DC voltage; overload; short-circuit. |
| Colling | Steeples frequency conversion fan for heat radiation。 |
| Muting function | Mic1 overrides other input signals with 0 ~ -30dB attenuation |
| Power requirements | AC220-240V/50-60Hz |
| Power consumption | 200W |
| Dimensions | 430×280×88mm |
| Gross weight | 10.3kg |
| Net weight | 8.9kg |
