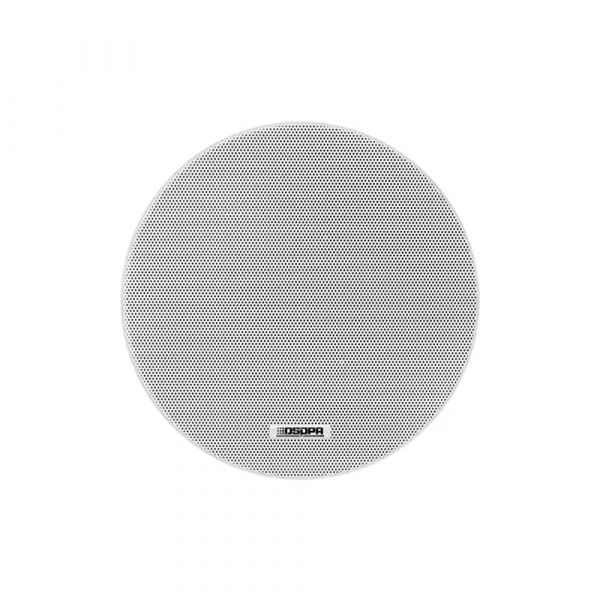

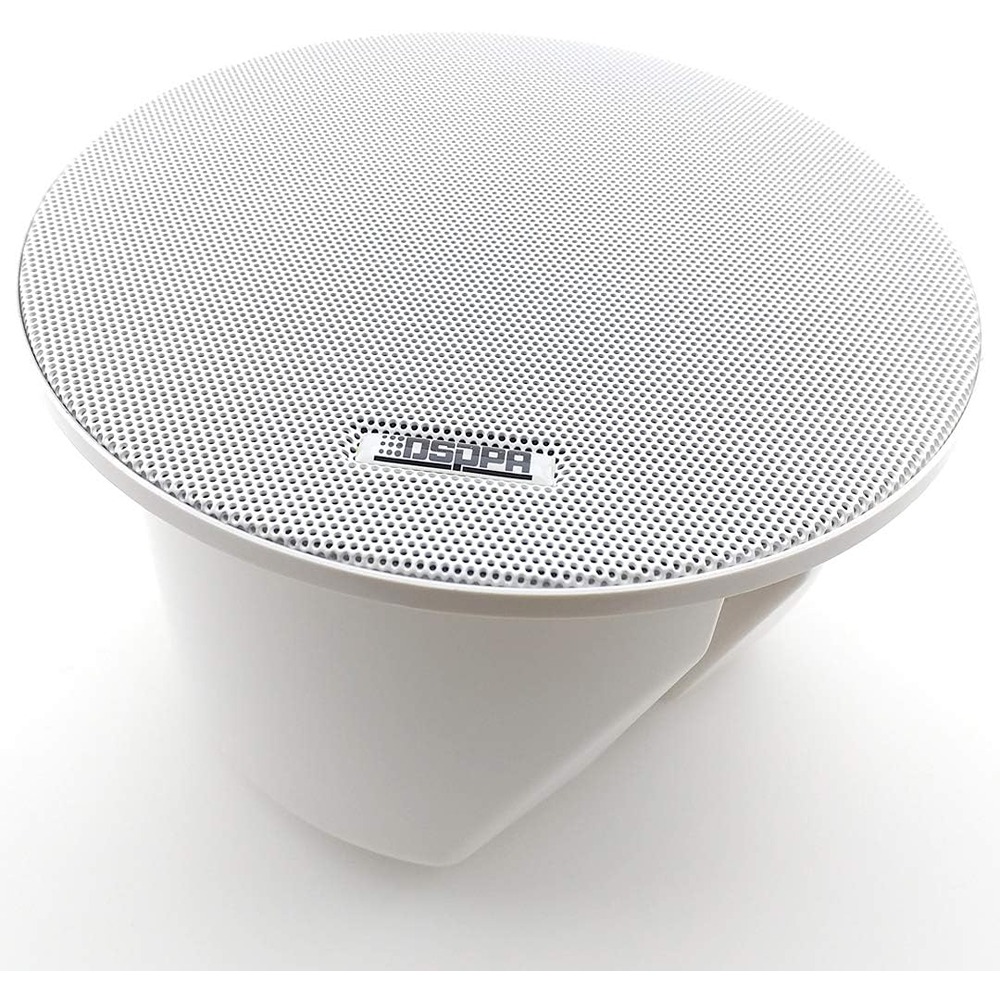

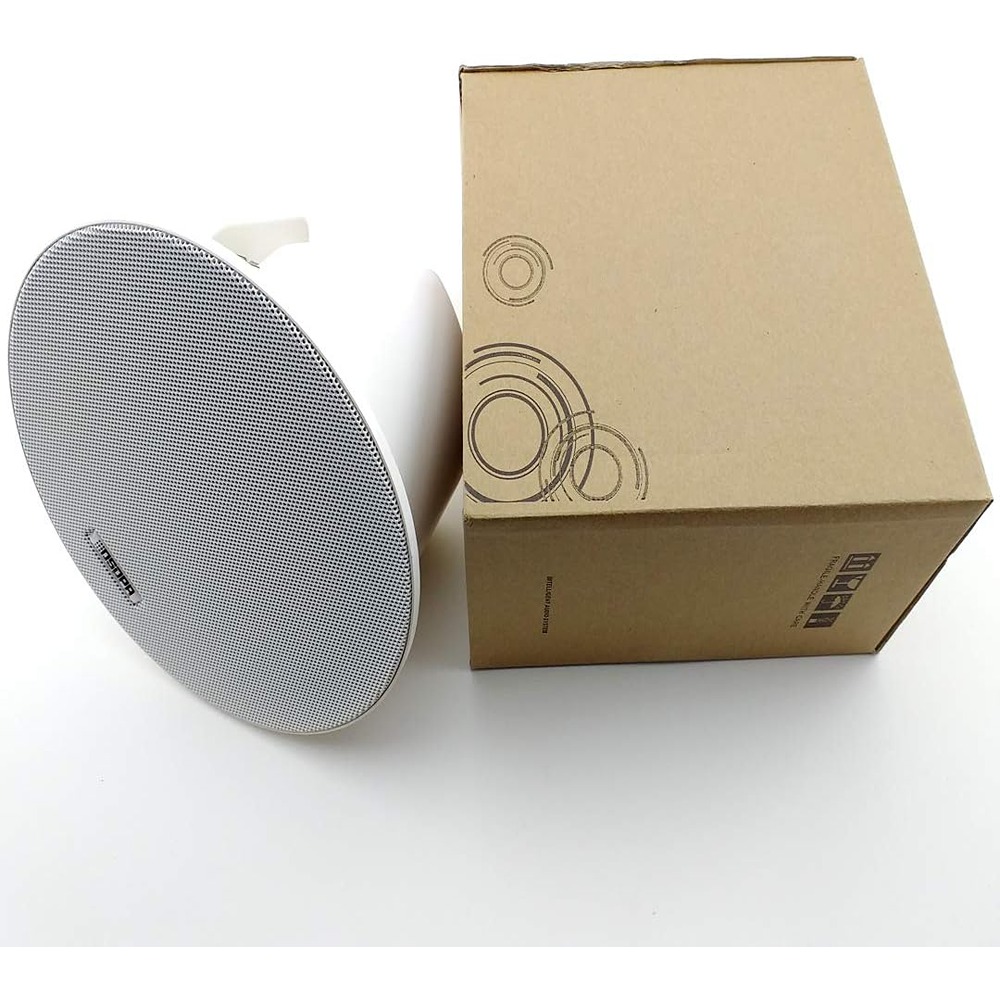

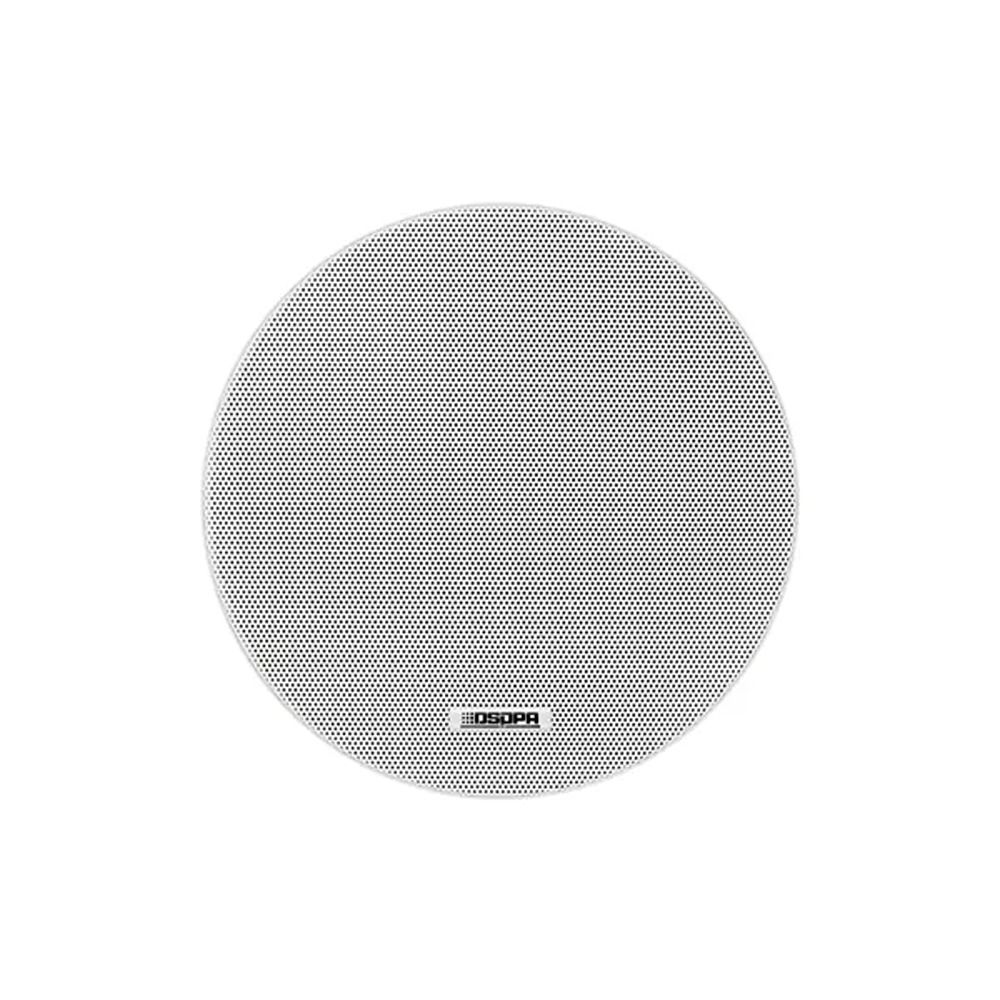

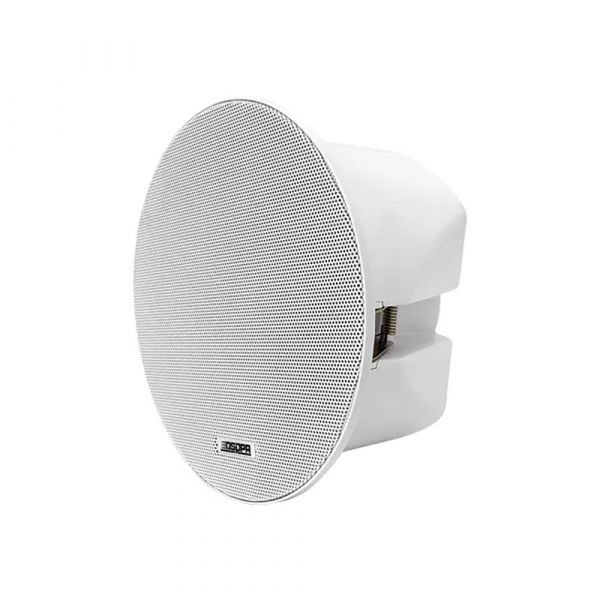

DSPPA 6-12W EN54 Fireproof Ceiling Speaker
Product Code: DSP602EN
Brand: DSPPA
(Parts in ABS not V0 type, anti-UV)
6W 6.5" Frameless Ceiling Speaker with Fire Dome
EN54-24 certified, suitable for indoor voice alarm and public address systems.
Supports 100V line connection with selectable 6W/3W/1.5W power taps.
Features a 6.5" full-range dual-cone driver for clear and intelligible voice reproduction.
ABS V0 flame-retardant enclosure and fire dome with an aluminium protective grille ensure fire safety and durability.

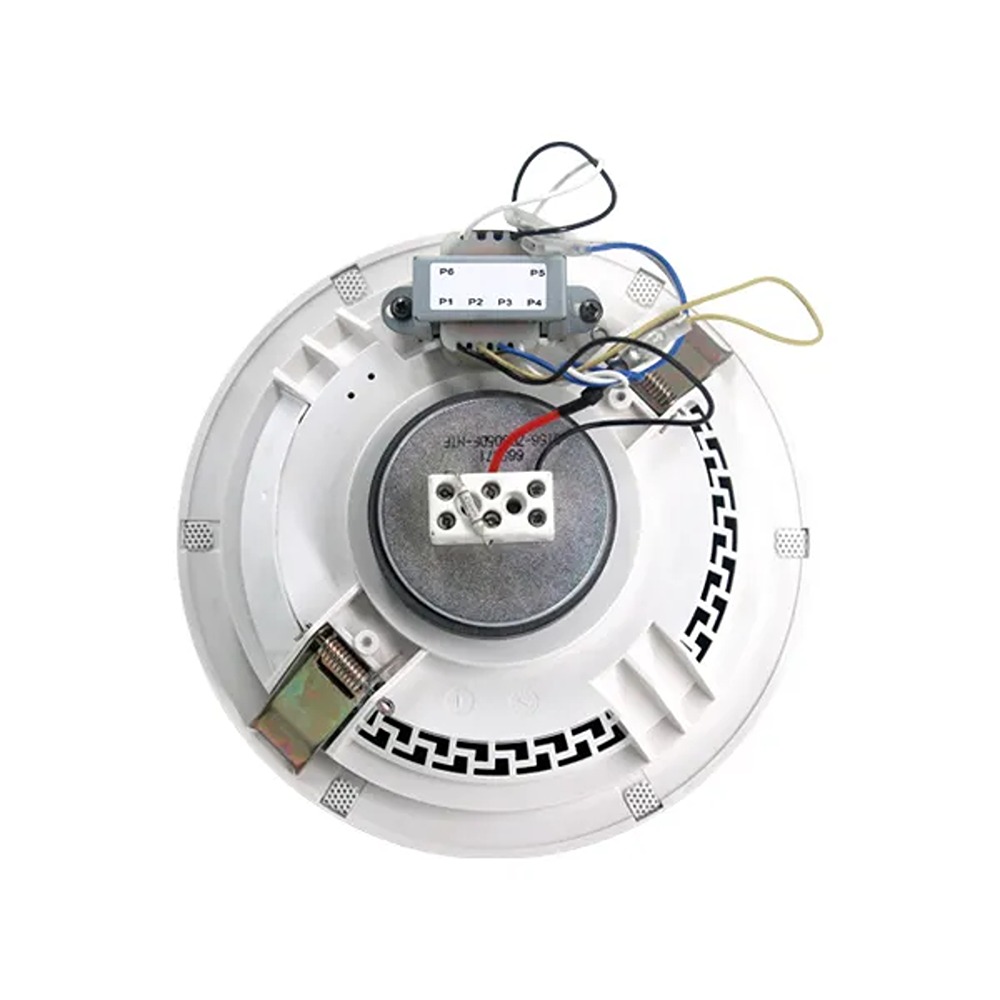

Equipped with a ceramic connector and built-in thermal fuse for reliable and safe operation.

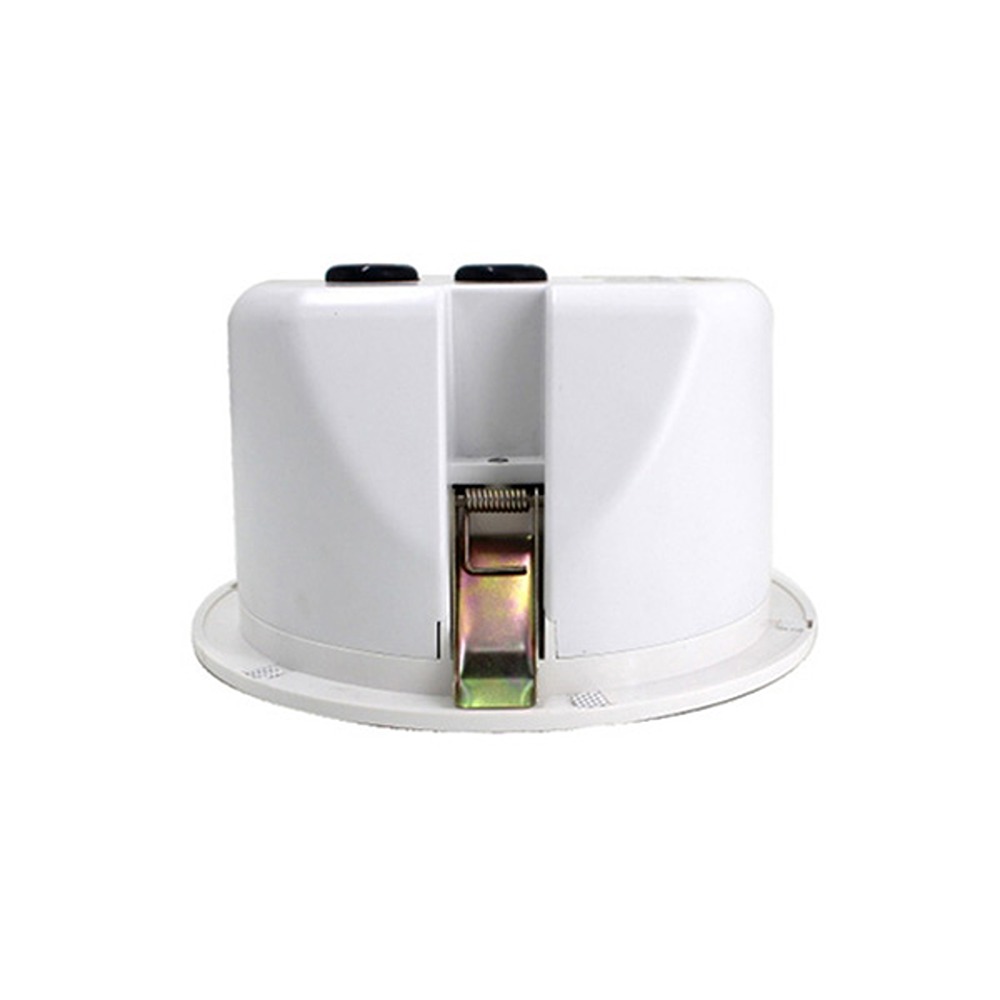

Designed for false ceiling or gypsum panel installation and supports daisy-chain wiring.
Specification
| Standards | EN54-24:2008 Loudspeaker for voice alarm system for fire detection and fire alarm system |
| Environment Class EN54-24 | Type A, indoor applications |
| IP rate protection (EN60529) | IP21C |
| Way no. / Speaker type | 1-way dual cone, full range Ø165mm |
| Transformer | 100V (6W – 3W – 1.5W) |
| In-axis Freq. response (-10dB) | 350–20,000Hz |
| Sensitivity (@1m, 1W) | 88dB |
| SPL max (@1m, Pmax) | 96dB |
| Coverage angle (-6dB) | 281° (500 Hz), 170° (1 kHz), 87° (2 kHz), 52° (4 kHz), 30° (8 kHz) |
| Directivity Index DI (dB) | 2.8 (500 Hz), 4.0 (1 kHz), 7.1 (2 kHz), 9.2 (4 kHz), 11.3 (8 kHz) |
| Directivity Factor Q | 1.9 (500 Hz), 2.5 (1 kHz), 5.1 (2 kHz), 8.4 (4 kHz), 13.6 (8 kHz) |
| Nominal/Music power | 6W/12W |
| Nominal Impedance @ 1kHz | 1.66kΩ (6W), 3.33kΩ (3W), 6.66kΩ (1.5W) |
| Dimensions Ø - P | 190mm – 108mm |
| Weight | 1.0kg |
| Material | ABS V0 type, painted grid in aluminium |
| Colour | White |
| Connections | Ceramic connector and thermal fuse |
| Power Input | AC90-250V |
| Output Power | 8*10W |
| Music Power | 8*20W |
| Output Impedance | 8Ω |
| Display Screen | 8" TFT digital HD screen |
| Operating System | Android 6.0 |
| Memory | 2+8G |
| Audio Input (AUX) | 1 group |
| Audio Output | 1 group |
| WIFI Audio Push | Support |
| Bluetooth Audio Push | Support |
| Cable Box Cut-Out Size | 175*110*70mm |
| Product Dimensions | 182*130mm |
