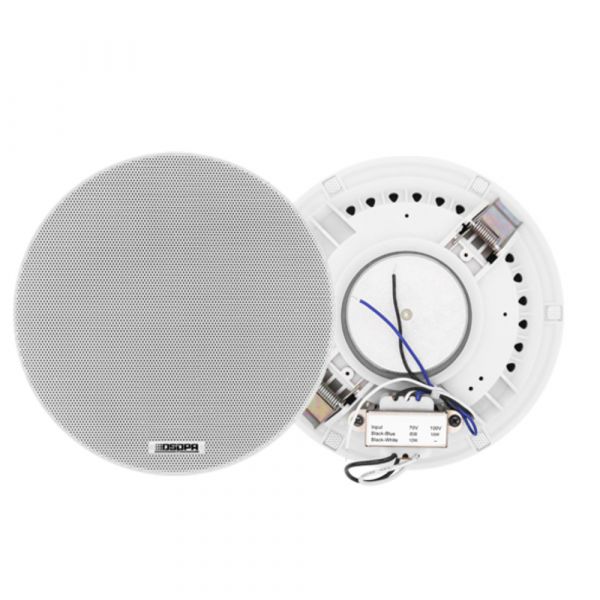

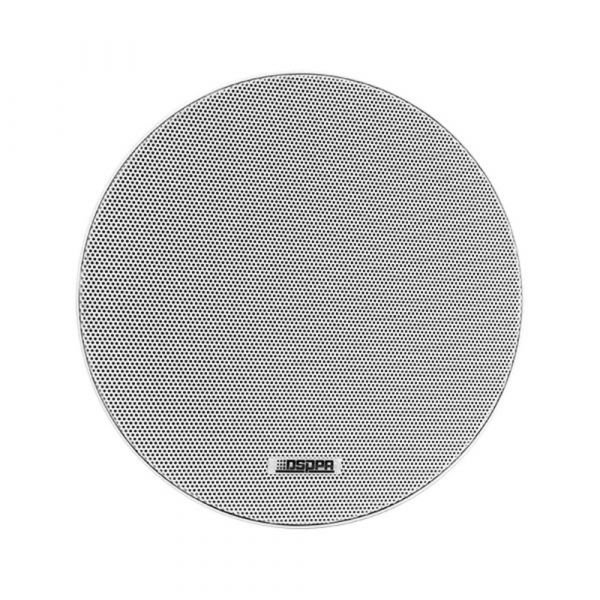

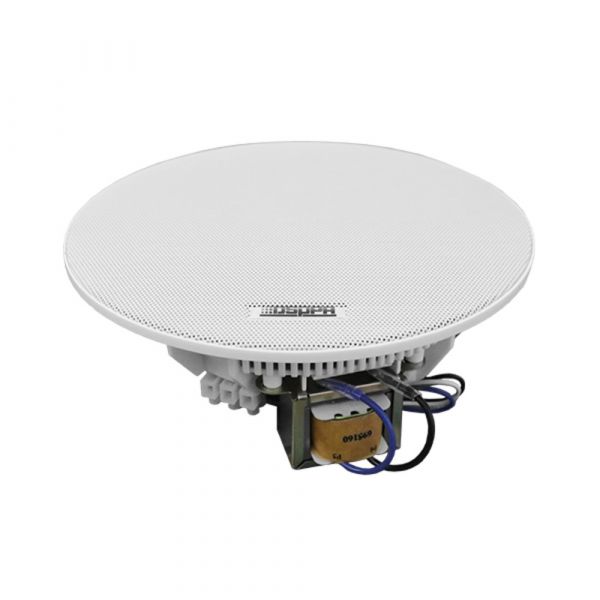

DSPPA 6.5 Inch Frameless 10W Ceiling Speaker with Transformer
Product Code: DSP7011
Brand: DSPPA
The DSP7011 is a surface mount ceiling speaker with a 70v/100v transformer built in. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible. It's easy to install with strong clip, and made of high-quality engineering plastic, which is durable, non-deformable and non-fading. It is an ideal choice for these places, such as schools, gymnasiums, square halls, parks, parking lots, railway stations, airports, villa communities and mall supermarkets, etc. with a 70v/100v transformer built in. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.
It’s easy to install with strong clip, and made of high-quality engineering plastic, which is durable, non-deformable and non-fading. It is an ideal choice for these places, such as schools, gymnasiums, square halls, parks, parking lots, railway stations, airports, villa communities and mall supermarkets, etc.
Features
- High quality anti-UV engineering plastic, long-term durability and fashionable;
- Fence structure can be avoid damaging speaker from roaches, rats etc.;
- Big power design (6-10W), long life, sounds clear and sonorousness;
- Different input voltage (70V/100V) can be chosen for different public address wires;
- Frequency response 120Hz-16kHz, maximum SPL. 92±2dB, High sensitivity 90±2dB, distortion<1.5%;
- Weight 0.9kg, equipped with clamps for installation.
- Cutout size: Φ165mm-170mm
| Unit Driver | 3"×1 |
| Rated Power (RMS) | 6W |
| WorkingVoltage | 70V/100V |
| Sensitivity (1m, 1W) | 88dB±2dB |
| MAX. SPL. (1m) | 95dB±2dB |
| Freq. Resp. | 120Hz~20kHz |
| Product Dimensions (W×H) | φ104×76mm |
| Net Weight | 0.5kg |
