DSPPA 6.5 Inch Frameless Ceiling Speaker
- View all variations as list
| CODE | Color | Availability | Price | ||
|---|---|---|---|---|---|
|
DSP6011 (black)
|
In stock
|
AED3400 | ||
|
DSP6011
|
In stock
|
AED3100 |
Brand: DSPPA

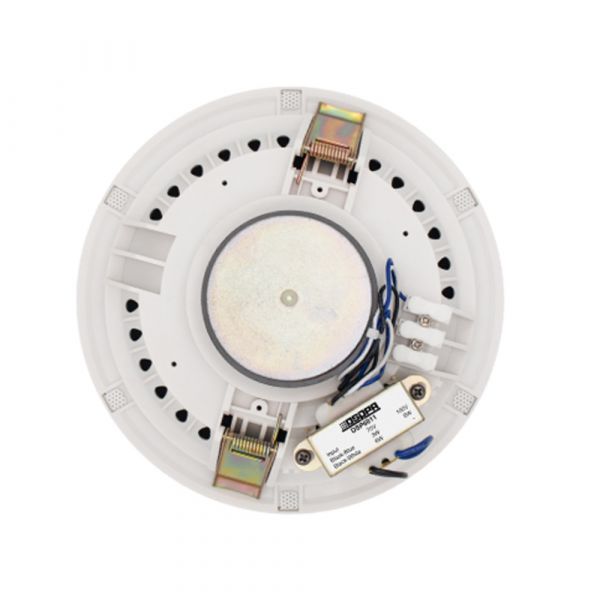

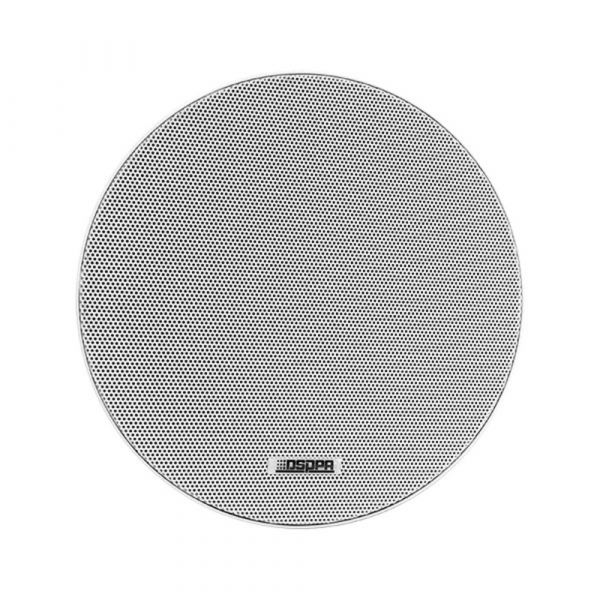

The DSP6011 is a surface mount ceiling speaker with a 70v/100v transformer built in. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.
It’s so easy to install with strong clip, and made of high-quality engineering plastic, which is durable, non-deformable and non-fading. It is an ideal choice for these places, such as schools, gymnasiums, square halls, parks, parking lots, railway stations, airports, villa communities and mall supermarkets, etc.
Features
- 6.5 inch Frameless
- Aluminum Grille
- 70/100V, Rated Power:6W
- Max. SPL:97±2dB
- Freq. Resp.:110Hz - 15kHz
- Sensitivity 90±2dB
- Cutout size: Ø165-170mm
- Three speaker line terminal, support different power
- In-ceiling quick installation by spring clip
Specifications:
DSP6011
| Unit Driver | 3"×1 |
| Rated Power (RMS) | 6W |
| Working Voltage | 70V/100V |
| Sensitivity (1m, 1W) | 88dB±2dB |
| MAX. SPL. (1m) | 95dB±2dB |
| Freq. Resp. | 120Hz~20kHz |
| Product Dimensions (W×H) | φ104×76mm |
| Net Weight | 0.5kg |

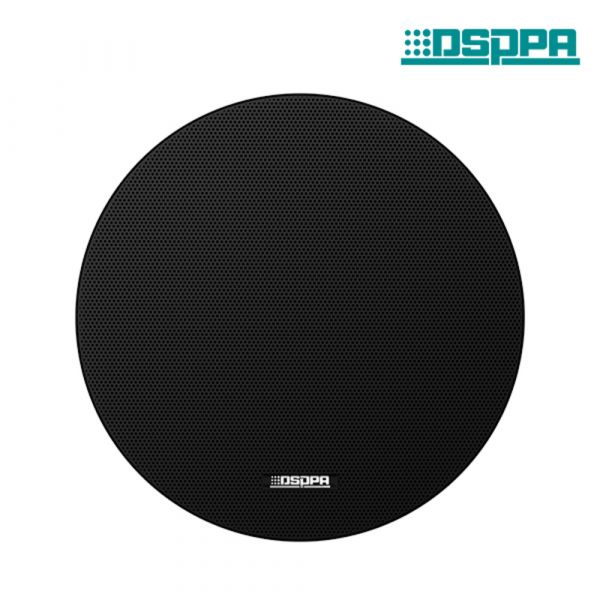

DSP6011B (Black Color)
| Freq. Response (-10dB) | 90 Hz -20,000Hz |
| Sensitivity | 95±2dB |
| Max SPL | 103±2dB |
| Input Voltage | 70V/100V optional |
| RMS | 6W |
| Dimension | φ185mm×74mm |
| Weight | 0.9kg |
