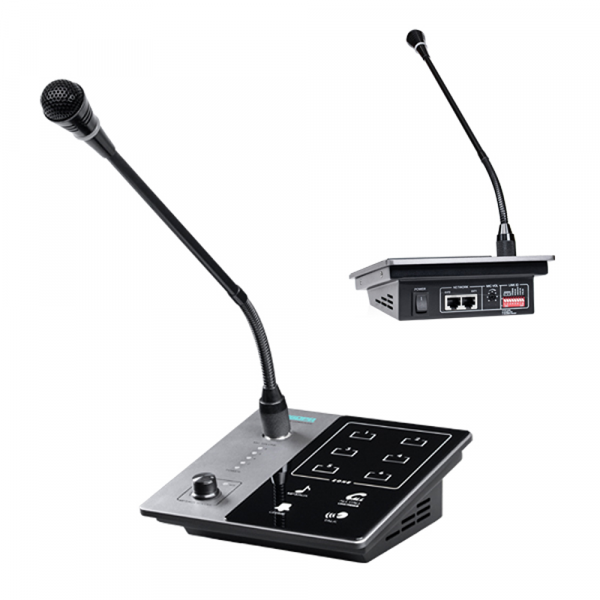

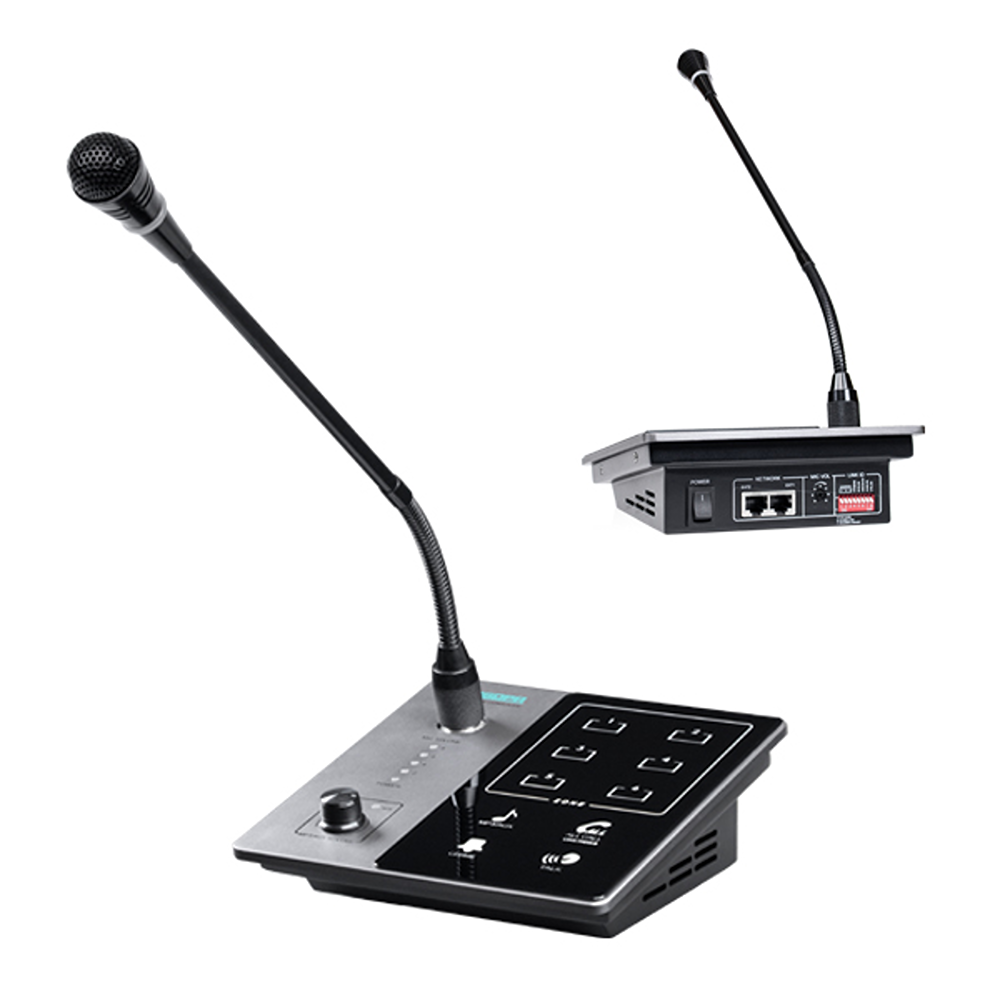

DSPPA 6 Channel Remote Paging Station
Product Code: DMA60M
Brand: DSPPA

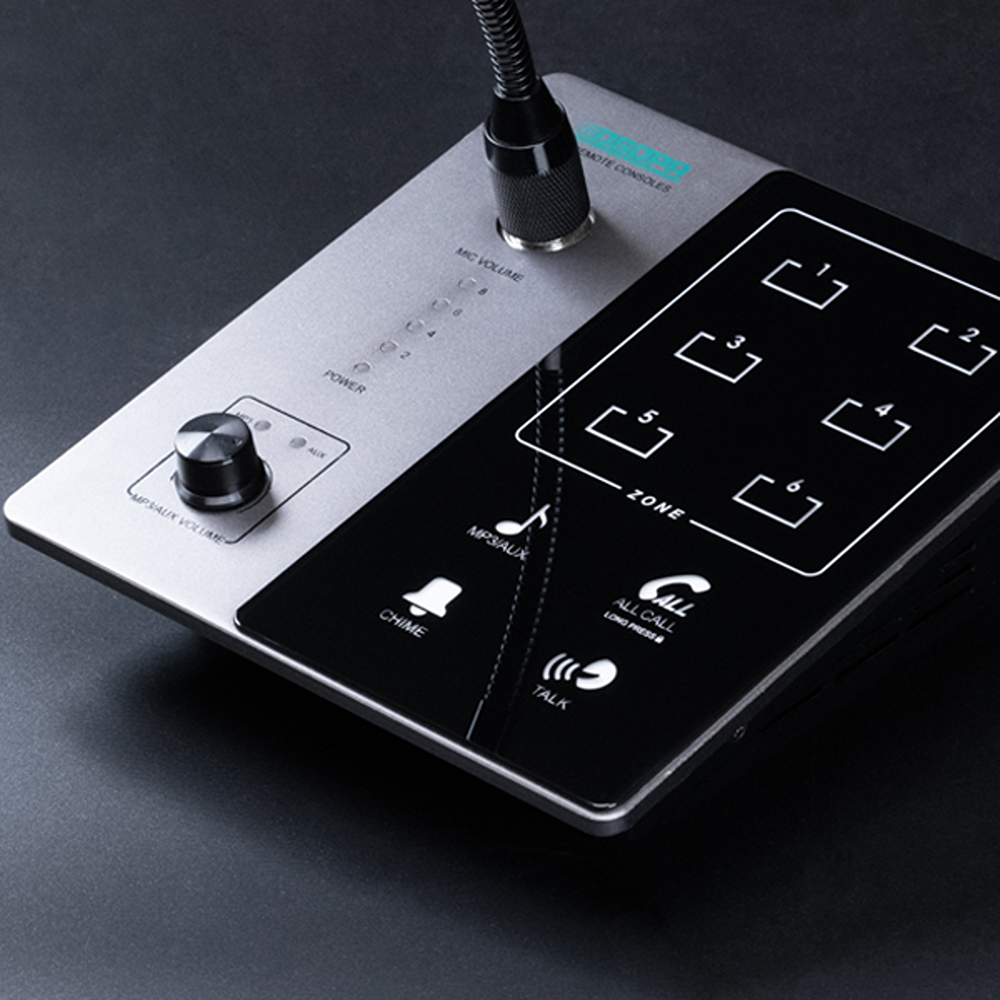

With independent zone switches for quick control of the 6 zones of the amplifier.
With signal level indication function for more intuitive paging volume.
With key lock function.
One chime tone with a descending tone.

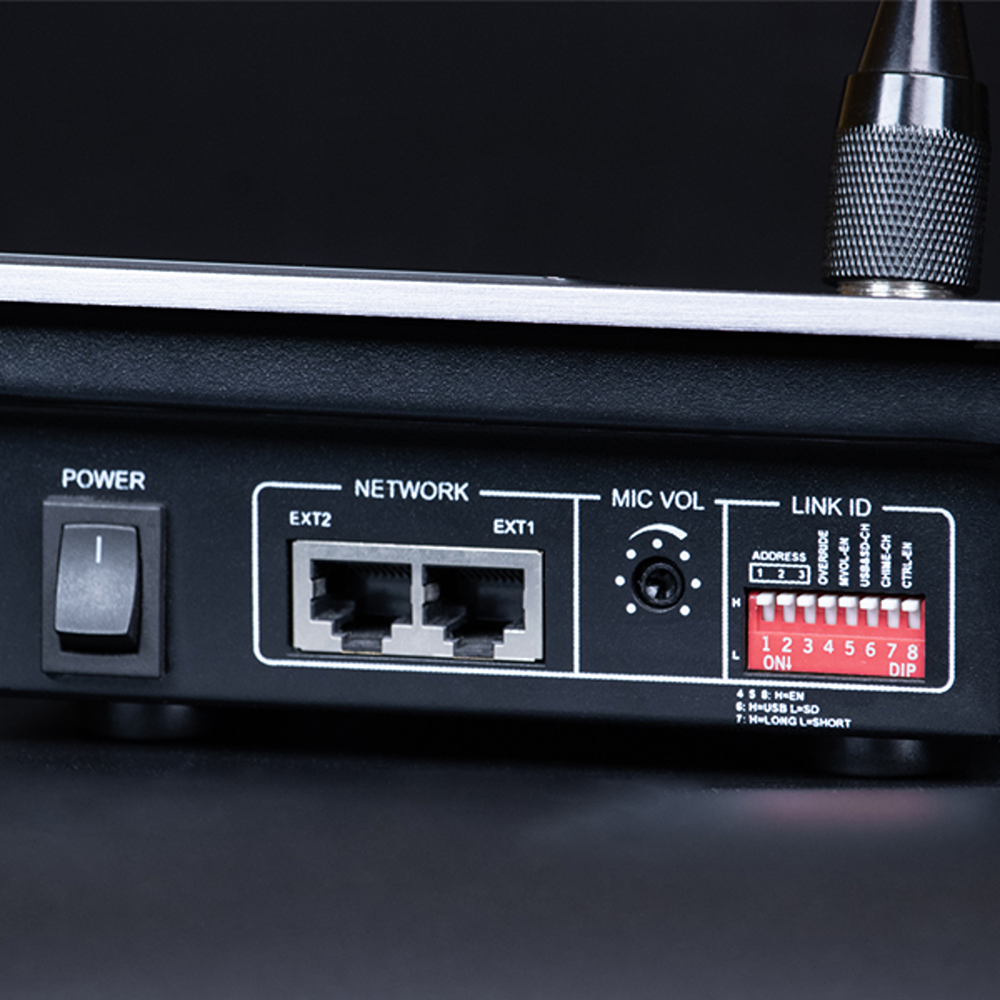

With dual RJ45 interfaces for zone control and override functions. When cascading paging stations with a single port, the mixer amplifier can support up to 6 paging stations on a single port, with a maximum transmission distance of 300m. If only one paging station is connected to the mixer amplifier, the transmission distance can be up to 600m. The paging microphone does not require a separate power adapter and it is powered and receives audio transmission from the DMA series 6-zone amplifier. Note: Each host supports a maximum of 6 remote paging microphones.
With 1-channel microphone volume adjustment.
With one-touch all-zone paging function.
With anti-fingerprint coating for the touch panel.
Specification
| Sensitivity | 30±3mV |
| Frequency Response | 200Hz-15KHz |
| S/N Ratio | ≥70db |
| RJ45 Connector | RS485 communication protocol |
| Input Power | Powered by the host |
| Package Dimensions (H×W×D) | 425×285×115mm |
| Machine Dimensions (H×W×D) | 172×160×53mm |
| Gross Weight | 1.6KG |
| Net Weight | 0.89KG |
