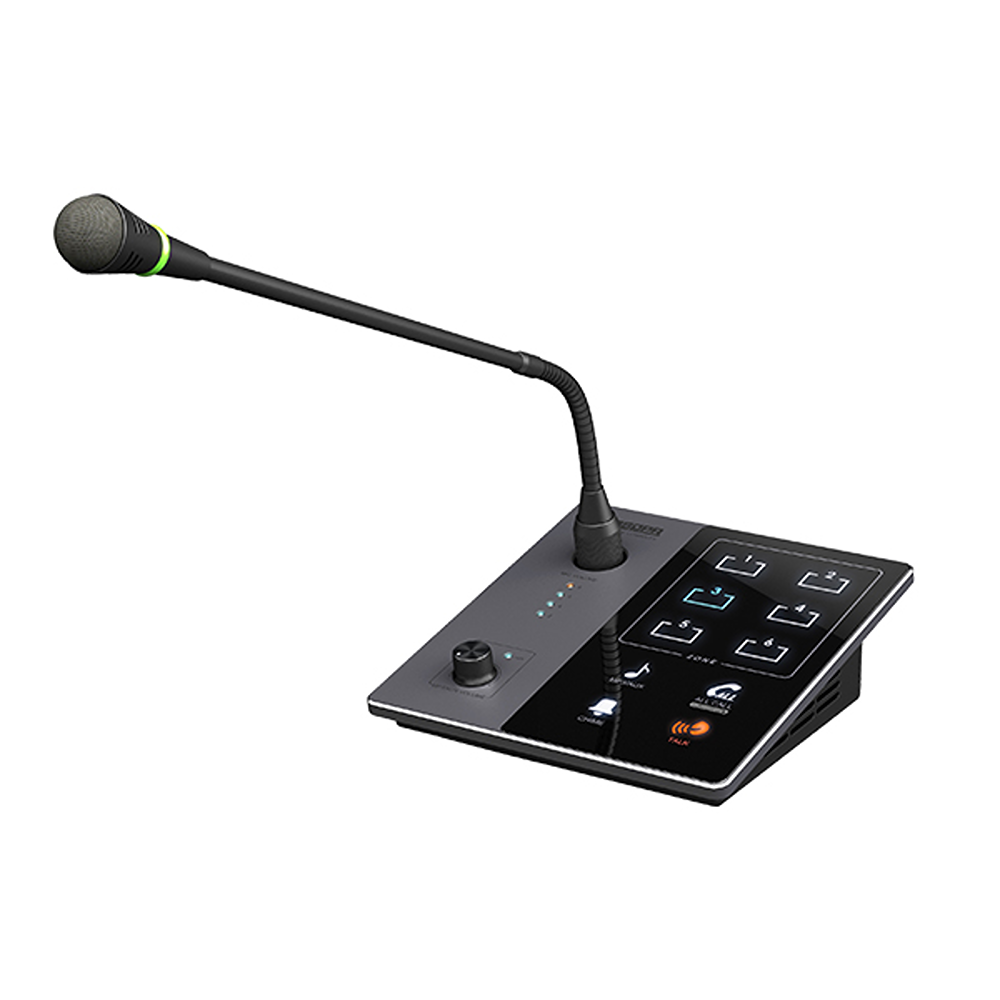

DSPPA 6 Zone Remote Paging Station
Product Code: DMA20
Brand: DSPPA
Zone-independent switches for quick control of six-zone switches of the amplifier.
Featured by signal level indication, it has more intuitive paging sound pressure.
With key lock function.
2 chime tones, chime up and chime down.

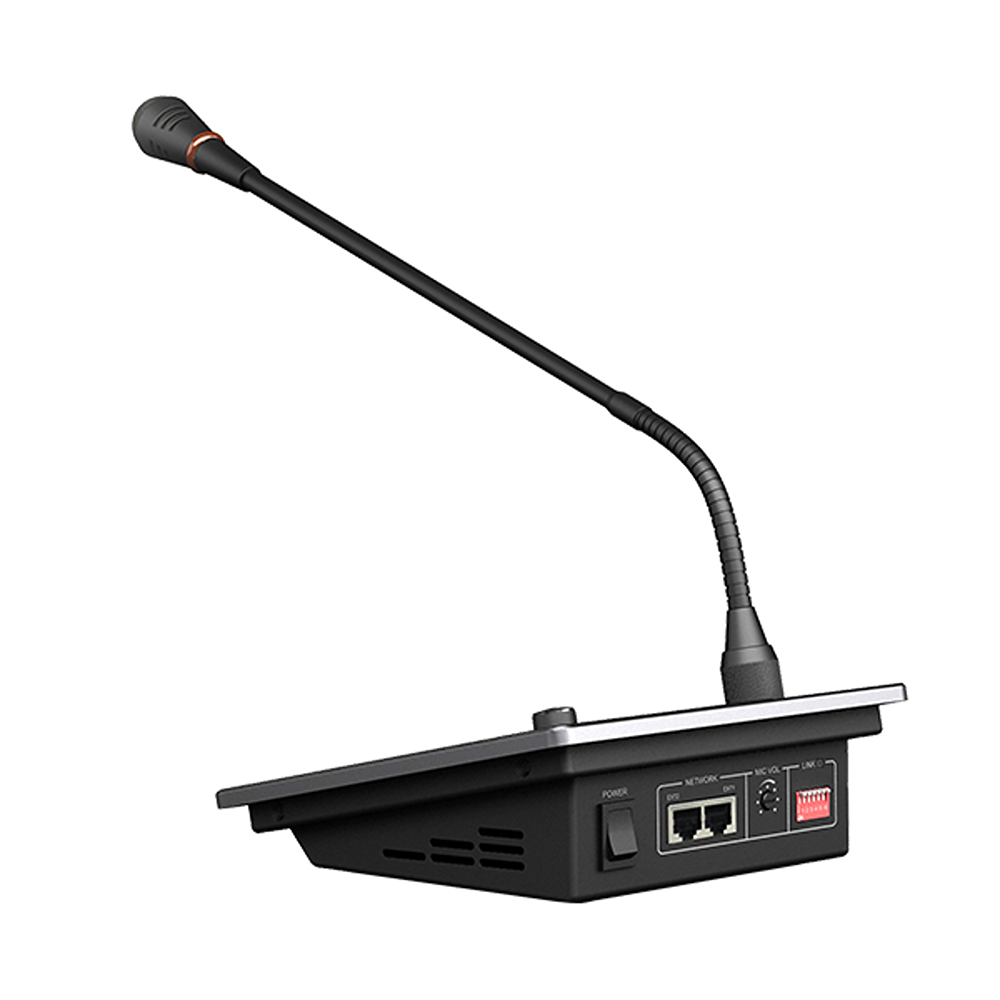

With dual RJ45 ports. With zone control and override function. When cascading paging stations with a single port, this single port of the mixer amplifier can support up to 6 paging stations, with the maximum transmission distance of 300m. If only one paging station is connected to the mixer amplifier, the transmission distance can be up to 600m. The paging station does not require an independent power adapter, and is powered by the DMA series 6-zone amplifier for audio transmission. Note: Each host can support up to 6 remote paging microphones.
One-channel hidden microphone volume knob.
One key to page all zones.
With anti-fingerprint coating for the touch panel.
With priority function, with the ID6 as the highest-priority paging microphone.
Specification
| Sensitivity | 30±3mV |
| Frequency Response | 200Hz-15KHz |
| SNR | ≥70db |
| RJ45 | RS485 communication protocol |
| Input Power | Host power supply |
| Package Dimensions (H×W×D mm) | 425×285×115mm |
| Machine Dimensions (H×W×D mm) | 172×160×53mm |
| Gross Weight | 1.6KG |
| Net Weight | 0.89KG |
