DSPPA 8" Dual-Zone Stereo Music Amplifier
Product Code: DM868
Brand: DSPPA

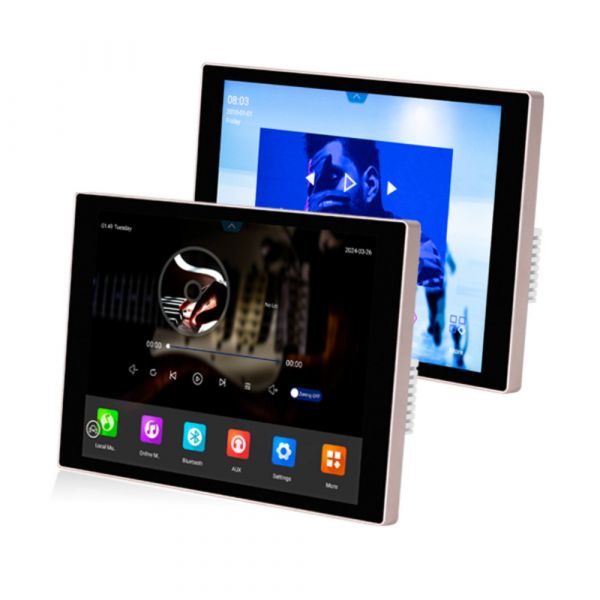

Our smart background music amplifier adopts a 8" TFT digital HD screen (1080×1440 HD resolution), and supports multi-point capacitive touch, with 4-core 2G running processor and Android 6.0 system for the main chip. The unit holds 2GB RAM and 8GB ROM. It supports DLNA, Airplay, Qplay and other protocols. It features WIFI, Bluetooth, and timing power-on/off, and supports LAN multi-zone control and intercom function.
Features
- Support LAN multi-zone control and intercom function.
- Support 8-channel speaker output (with independent control of audio sources in two zones) and 4-zone volume control.
- Support DLNA, Airplay, Qplay and other protocols, and can push music, videos, pictures, files, and apps from the mobile phone to the host for playback or installation.
- Support mobile devices to push music via Bluetooth.
- Support external devices to control the machine via 485.
- Support audio input and output functions.
- Support TF card and 2.0 USB interface, which can be attached to a hard disk.
Specification:
| Power input | ~110-240V/50/60Hz |
| Output power | 2 ×10W |
| Rated impedance | 8Ω |
| Total harmonic distortion | ≤1% (1KHz, 1W, 8Ω) |
| SNR | >71dB |
| Frequency response | 50Hz –18KHz |
| Sensitivity of auxiliary input | AUX: 1.0V |
| Audio format | MP3,WMA,WAV,FLAC |
| Bluetooth | BT4.1 |
| Control interface | RS485 |
| Storage type | SD card, USB |
| Package dimension | 150×125×95mm |
| Product dimension | 86×86×38mm |
| Net weight | 0.2kg |
| Gross weight | 0.5kg |
