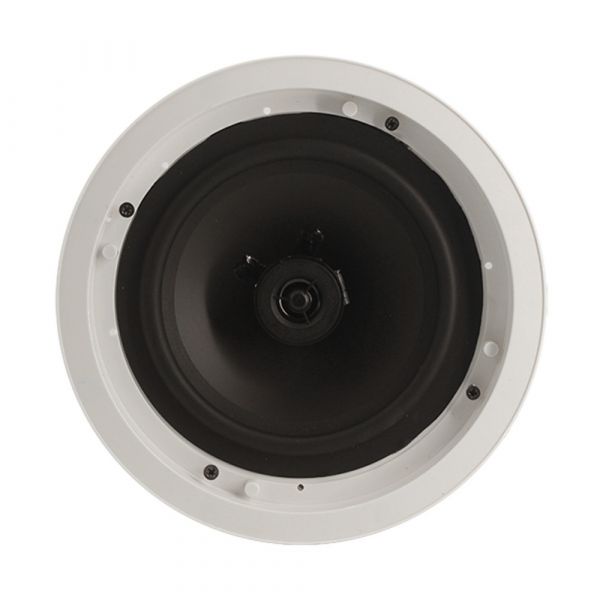

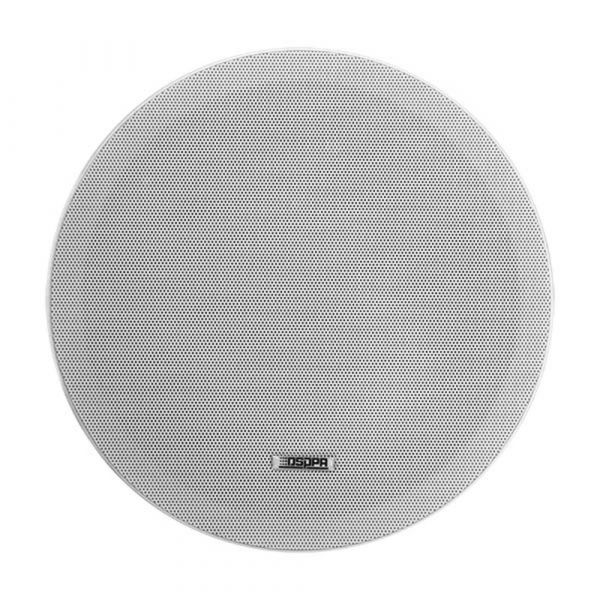

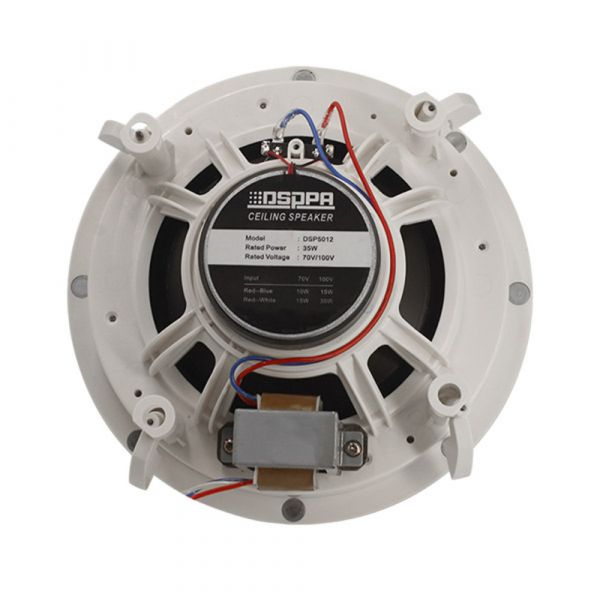

DSPPA 8 Inch 35W Coaxial Frameless Ceiling Speaker
Product Code: DSP5012
Brand: DSPPA
The DSP5012 35W coaxial frame-less ceiling speaker is a coaxial two-frequency ceiling speakers. With wide angle and high output power and rotary clip design, easy installation, durable and reliable, it can output good sound effect. Besides, it’s easy to install. Ultra-narrow edge design, with RAL white coating, fit in with all indoor occasions. It’s an ideal choice for you.
Features:
- Ultra-narrow edge design, with RAL white coating, fit in with all indoor occasions;
- With 8-inch base unit, its magnetic body processed by engineering plastics, its cone paper made from algae heat pressing and processed by waterproof coating. Its rear net is optional for installation. With rear net, its bass effect is better;
- With 14mm treble unit, crisp and clear. High pitched diffract loading provides wider range coverage;
- Complied with IEC268-5 power handling capability (PHC) standard, and can work continuously for 100 hours at rated power;
- With simulated Acoustic Feedback Exposure (SAFE) test, it can withstand twice the rated power in a short time, which ensures high reliability of the loudspeaker under extreme conditions, extending its service life.
- Rotary clip design, easy installation, durable and reliable
Specification:
| Model | DSP5012 |
| Unit Driver | 8"×1 |
| Rated Power | 35W |
| Impedance | 70V/100V |
| Sensitivity (1m, 1W) | 88±3dB |
| MAX. SPL. (1m) | 103±3dB |
| Freq. Resp. | 55Hz-20KHz |
| Dimension | Φ262×100mm |
| Weight | 2kg |
