DSPPA Control Panel
Product Code: BM828RII
Brand: DSPPA

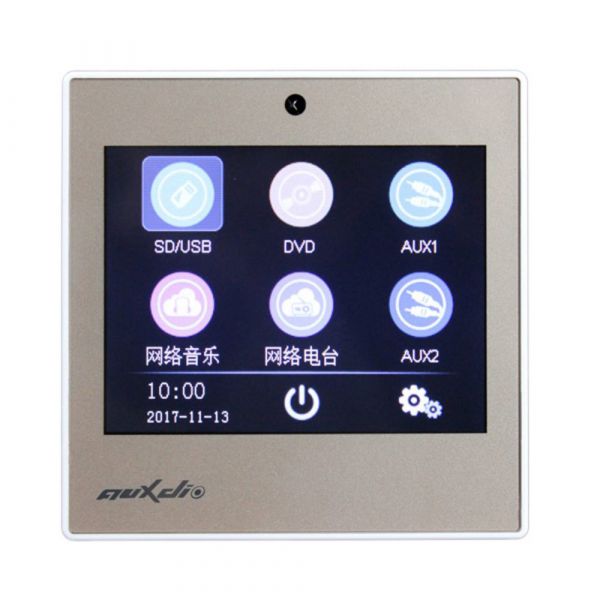

3.5” TFT LCD display screen, fully touchable operation.
Luxurious appearance design, optional colors in black and white.
With the operational functions of the AM8318, AM8328, and AM8328II hosts
One BM828RII controls one partition by means of setting of address.
Control external DVD and TV through the infrared learning function of the host.
Controllable distance up to 100 meters.
Specifications:
| Item | Indicators |

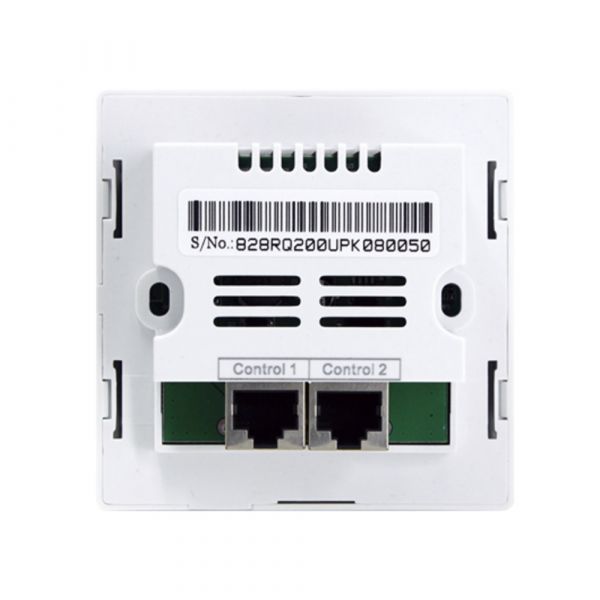

| Connection mode | RJ45 cable connection |
| Infrared remote control | Supported |
| Distance of communication | 100m |
| Control function | Selection of sound source, volume, room switch, controlling the playing of USB/SD and DVD connected to the host |
| Power input | 9-30V DC |
| Dimension | 86 x 86 x 38mm |
| Weight | 214g |
