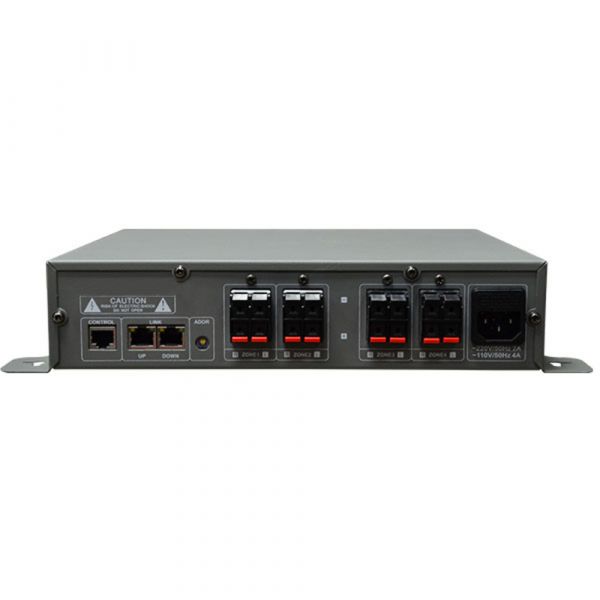

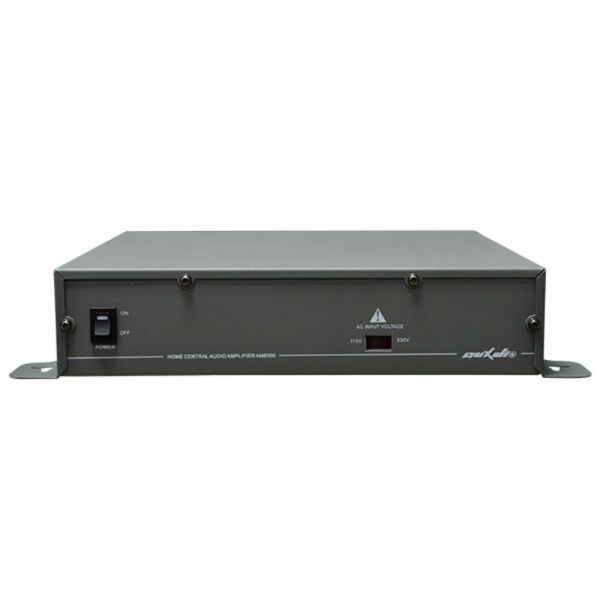

DSPPA Intelligent Zone Extender
Product Code: AM8300
Brand: DSPPA
AM8300 is the partition extended power amplifier used for the multi-room network music system. Every set of AM8300 is able to provided 4 additional partitions for the user, so as to meet the needs of the user for multiple partitions. One AM8328 host is able to connect 16 AM8300 extending boxes by the “hand-in-hand” or star connection mode. Any set of AM8300 has its own address ID, which the user may change according to his/her own needs.
Features:
- RJ45 network cable for control signal；
- Support hand-in-hand between AM8300；
- Supply power output for 4 zones, each zone 2x30 8Ω stereo output;
- Input power supply switchable between 115V and 230V;
- One AM8328 system can connect with 16 sets of AM8300;
- One AM8300 can connect with 4 sets of BM828R room controller.
Specification:
| Item | Indicator | |
| Number of partitions | 4 partitions | |
| Audio frequency indicator | Rated output power | Stereo,8×30W/8Ω |
| Frequency response | 20Hz-20kHz (±0.5dB) | |
| Total harmonic distortion | <0.3% (f=1kHz, 1/3 of rated output power) | |
| Signal to noise ratio | > 81dB | |
| Room controller interface | Using RJ45 network cable | |
| Power amplifier output protection | Any partition has output short-circuit, overloading and direct current protection | |
| Power supply | AC115V or 230V/50-60Hz | |
| Consumed power | < 350W | |
| Power protection | AC220V/F6A | |
| Dimension of outer packing (mm) | (L×W×H) 340×340×160 | |
| Dimension (mm) | (L×W×H) 230×285×65 | |
| Gross weight | 3.2kg | |
| Net weight | 2.8kg |
