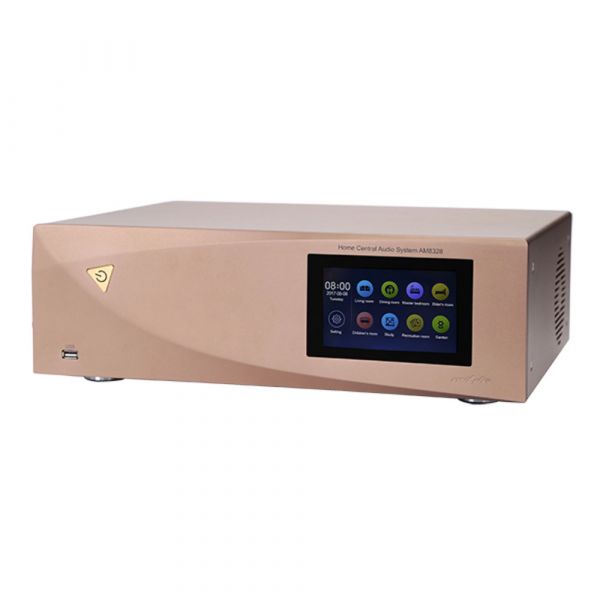

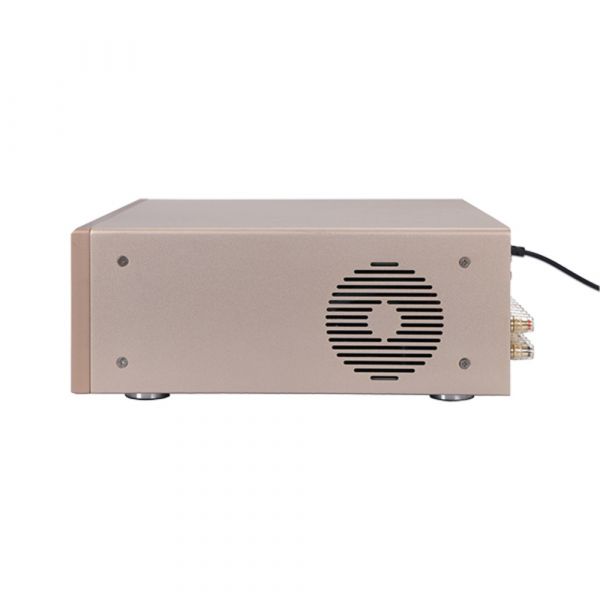

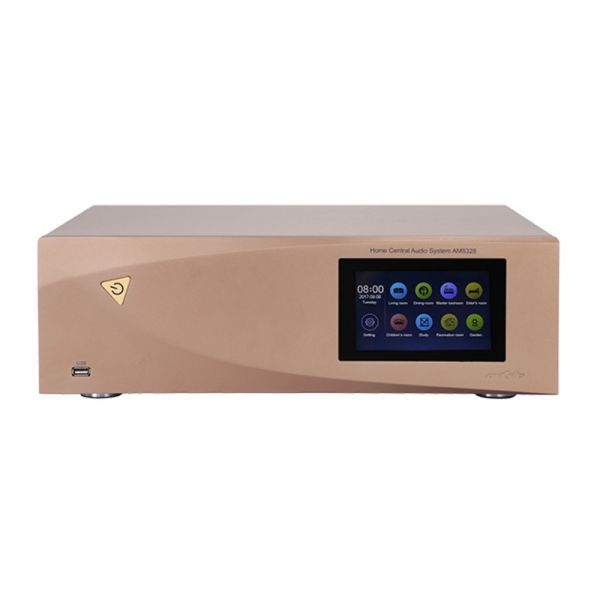

DSPPA Multi-Room Home Central Music Host
Product Code: AM8328
Brand: DSPPA
Equipped with RS-232 communication interface and TCP/IP network interface, can interlink with intelligent central control systems or intelligent home systems.
With infrared learning function for remote control of external audio equipment.
All-digital audio processing technology which can realize Hi-Fi sound quality.
Independent timing control of every room which can realize intelligent music life.
All zones in one operation interfaces to realize independent or centralized control.
Support online software upgrading and time calibration automatically.
Equipped with brand-new control software including IOS and ANDROID platforms.
Features
- 8 zones independent output, can extend to 72 zones at most
- High-power output for living-room or garden with rated power 2x100W
- Both programs and partitions can be renamed
- 16-million pixel 7.0” TFT true-color capacitance display and touch screen
- Rich audio sources: 8 internet modules (supports internet music and internet radio),
- built-in MP3 player, memory card, 3 audio source inputs
- Support DLNA, can push music from mobile phones and DLNA network hard disk
Specification:
| Item | Indicator | |
| Quantity of zone | Eight zone | |
| Audio indicator | Line input sensitivity | 520mV (±50mV) |
| Line input resistance | >10kΩ | |
| Rated output power | Zone1, 2×100W/8Ω | |
| Zone2-8, 14×30W/8Ω | ||
| Frequency response | 20Hz-20kHz (±0.5dB) | |
| Total harmonic distortion | <0.3% (f=1kHz, 1/3 of rated output power) | |
| Signal-noise ratio | > 81dB | |
| Auxiliary audio output | Stereo output: 520mV (±50mV) | |
| Power amplifier output protection | Output short circuit, overloading, direct current protection | |
| Power supply | AC220-240V/50-60Hz | |
| Whole power | 600W | |
| Power protection | AC220V/F6A | |
| Dimension of outer packing (mm) | (L×W×H) 540×540×230 | |
| Dimension (mm) | (L×W×H) 430×345×132 | |
| Gross weight | 19kg | |
| Net weight | 14.6kg |
