DSPPA Professional Intercom Microphone
Product Code: D950
Brand: DSPPA

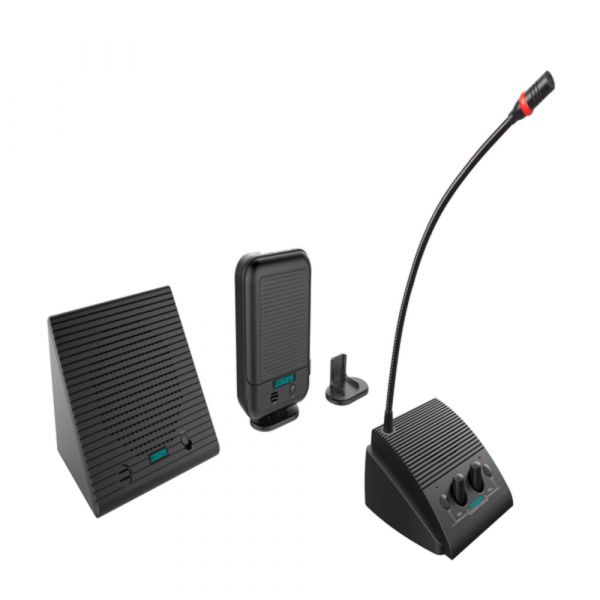

With clear sound for voice and easy installation, the D950 Window Intercom Microphone System is designed to lift voices for supporting intelligible communications through counter windows, glass partitions or windows in box offices, banks, offices, control points, private accesses, car parks, etc.
Features:

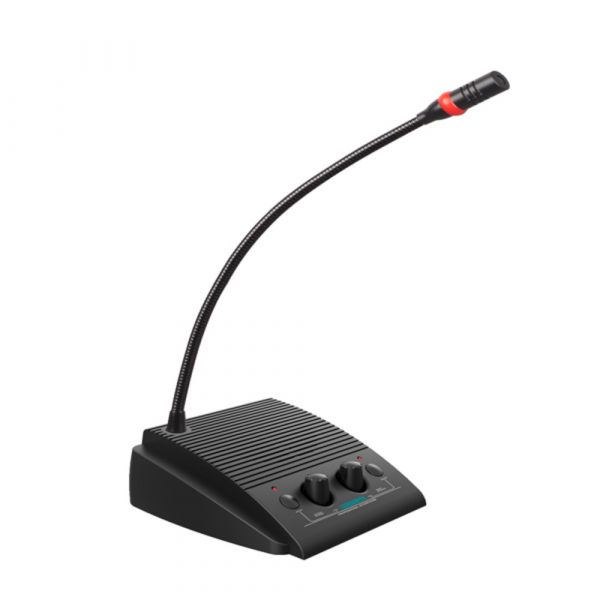

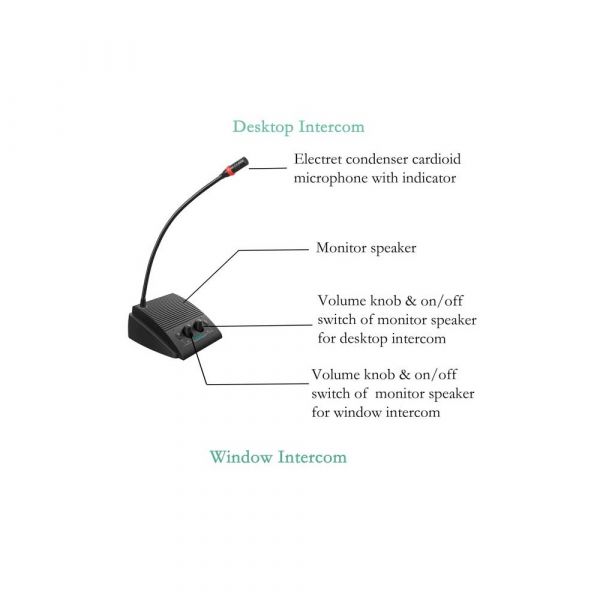

- Electret condenser cardioid microphone; Indicator light on active microphone: when microphone is active, indicator light switches on
- Monitor speaker of desktop intercom, to monitor the sound from the window microphone.
- Volume knob and on/off switch of monitor speaker for desktop intercom (with indicator).
- Volume knob and on/off switch of monitor speaker for window intercom (with indicator).
- SPEAKER: Connection for window intercom, 3.5 mm stereo jack
- LINE IN: 3.5 mm jack for reproduction through window intercom
- REC OUT: 1 REC, 3.5 mm stereo jack
- Power on/off switch
- POWER INPUT: DC12V

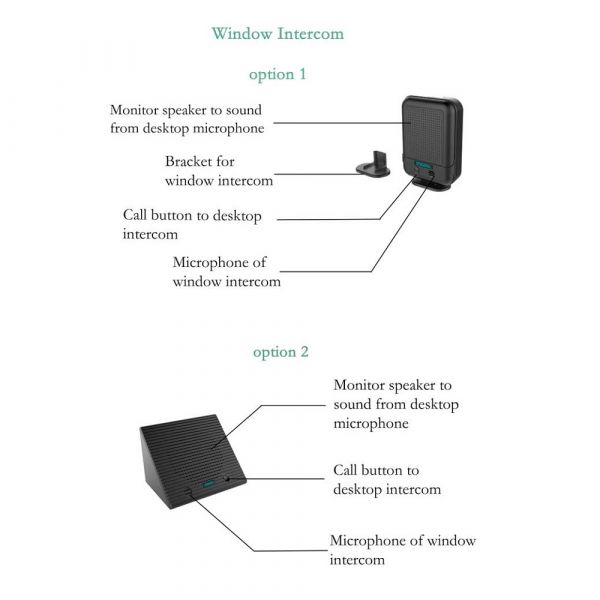

- Monitor speaker of window intercom, to monitor the sound from the desktop microphone.
- Microphone of window intercom
- Call: Press this key to give a call indicator to the desktop intercom.
- Bracket for window intercom (Option 1)
Specification:
| | |
| Controls | On/off Independent window and interior volume Windows and interior mute button |
| Functions | Automatic communication control, internal intercom priority Anti-feedback processor LED power indicators on desktop intercom Power 2 x 5 W Optimum distance for speaking into window intercom microphone 20 cm The window intercom can be hung or stuck on the glass with the provided. double-sided adhesive pads. |
| Input | 1 microphone-loudspeaker connection for window intercom, 3.5 mm stereo jack 1 line, 3.5 mm jack for reproduction through window intercom |
| Output | 1 REC, 3.5 mm stereo jack |
| Power Supply | 12 V DC, 1 A with adapter included |
| Cable | 2.4 m cable for window intercom |
| Dimensions | Desktop intercom: 141 x 62 x 142 mm depth Gooseneck microphone: 340mm height Window intercom: Option 1:84 x 124 x 37 mm depth (with bracket) Option 2：145 x 100 x100 mm depth |
| Weight | 1.2 kg |
| Accessories | Foam windshield Adhesive pad for window intercom installation |
