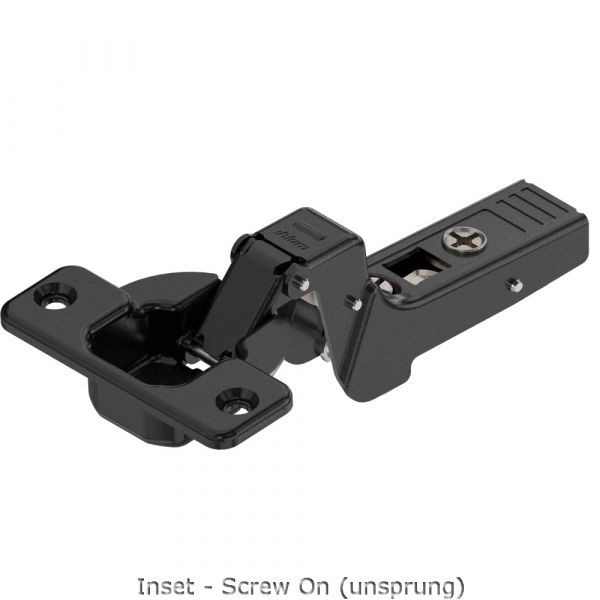

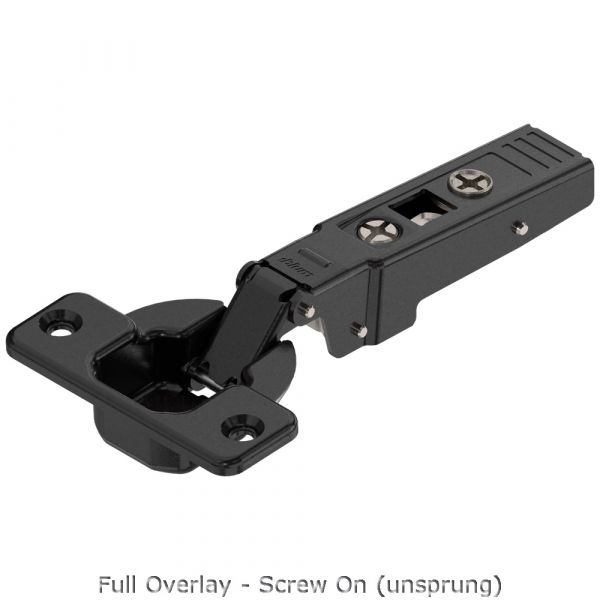

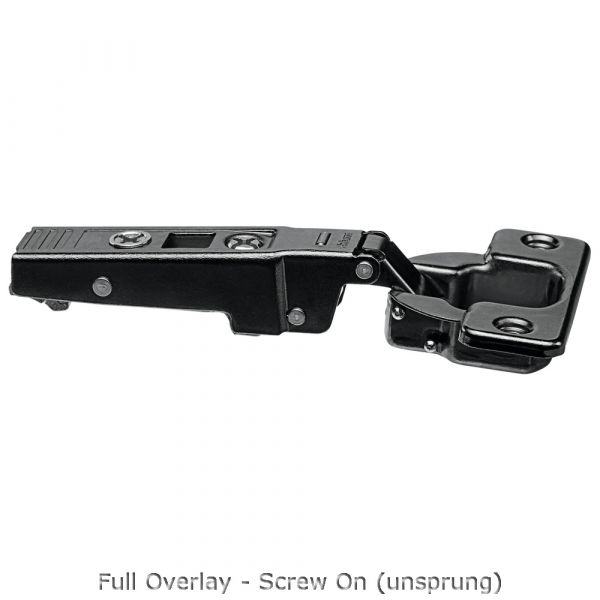

Blum - Clip Top Profile or Thick Door Hinge 95° (Unsprung) Onyx Black + Horizontal Cam Plate (Screw On)

Brand: Blum

Hinge for thick doors and doors with profile.

CLIP TOP BLUMOTION with integrated BLUMOTION (with deactivation option).

CLIP TOP with or without closing mechanism (spring).

95° opening angle

3-dimensional front adjustment

Convenient spiral-tech depth adjustment.

Tool-free door to cabinet assembly and removal.

With INSERTA tool-free hinge to door assembly.

Technical Attributes

Application: Profile Door Hinge

Opening Angle: 95

Hinge Variant: With free movement for TIP-ON

Boss Material: Steel Boss

Boss Finish: Nickel Plated

Diametre Hinge Boss Drilling: 35

Distance Between Drillings: 45

Exccentric Position of Fixing Holes to Hinge Boss Hole: 9.5

Boss Drilling Depth:12.3

Minimum Drilling Distance:3

Maximum Drilling Distance: 7

Arm Material: Steel

Arm Finish: Nickel Plated

Type of Side Adjustment: With Screw

Side Adjustment: +/- 2 mm

Type of Depth Adjustment: Convenient with Spiral Screw

Depth Adjustment: + 3/- 2 mm

Gap: 1.5

Item Package: 1 Piece

Packaging: Commercial packing

Note:

A trial application is recommended when combining CLIP top BLUMOTION hinges with springs on small, light fronts up to 300 mm wide. Combining these is not recommended for wider fronts.

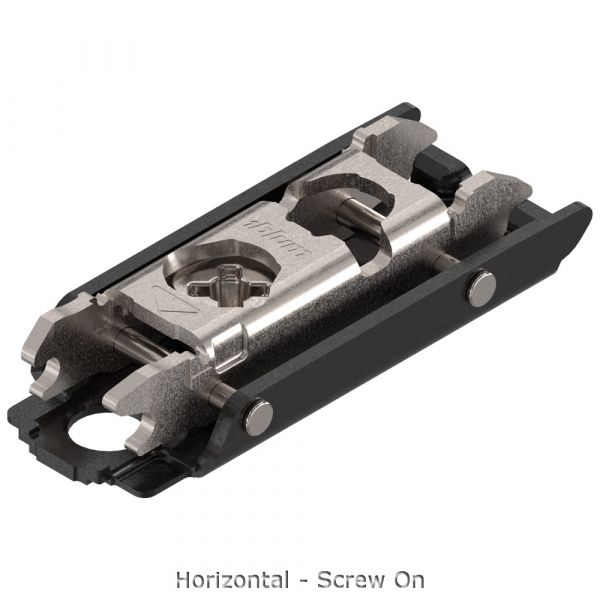

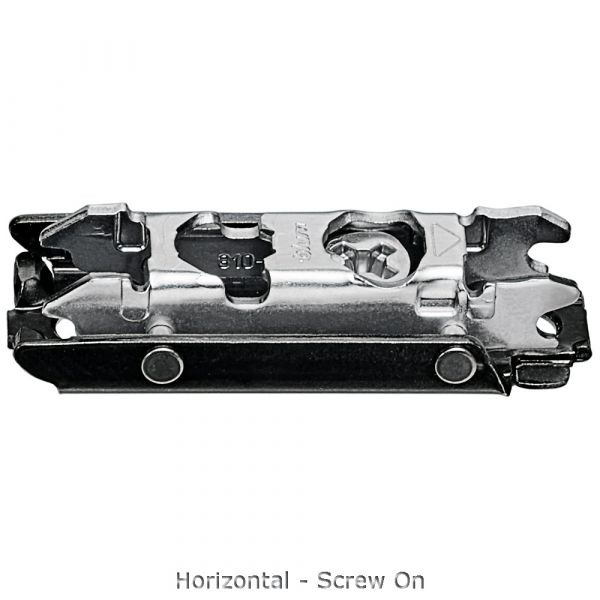

Blum Clip Top - Horizontal cam Mounting Plate (Screw On) - Onyx Black Finish

Technical Attributes

Mounting Plate System: CLIP

Colour / Finish: Onyx Black

Shape of Mounting Plate: Straight

Material: Steel

Surface of Bottom Part: Onyx Black

Fixing: For Chipboard Screws

Distance Cabinet Front Edge to First Fixing Position: 20

Mounting Plates Height Adjustment: With Cam

Height Adjustment: +/- 2 Mm

Height: 8.5

Spacing: 0

Angle: 0

Item Package: 1 Piece

Packaging: Industrial Packing

Material of Bottom Part: Steel
