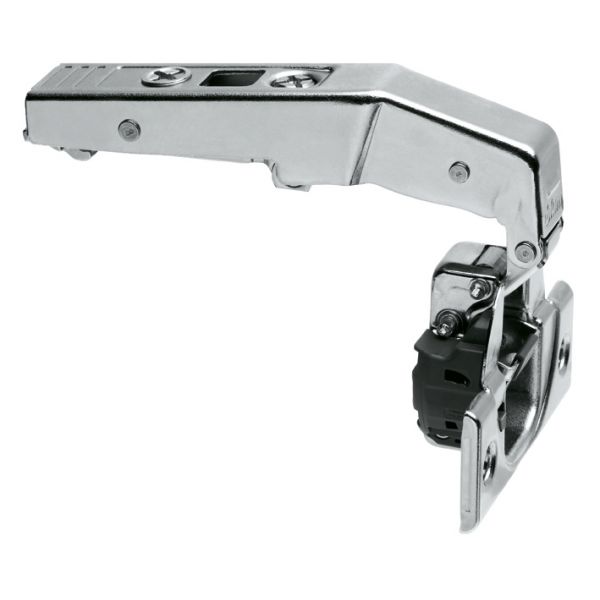

Blum - CLIP Top BLUMOTION Blind Corner Hinge 83° Inset Application + Cruciform Mounting Plate
Brand: Blum
Part number: 79B9550.83
Item number: 07874614
Colour / finish: Nickel plated
Technical Attributes
Application: blind corner hinge
Opening angle: 83
Closing mechanism: with spring
Hinge variant: with integrated BLUMOTION
Hinge variant: Special exterior lever
Cover cap type: 90M2503
Cover cap type: 70.1503
Cover cap type: 70T3504 – boss cover cap
Boss material: Steel boss
Boss finish: Nickel plated
Boss assembly: screw-on
Flange width: 57
Flange length: 22
Flange height: 3.2
Diameter hinge boss drilling: 35
Distance between drillings: 45
Eccentric position of fixing holes to hinge boss hole: 9.5
Boss drilling depth 13
Minimum drilling distance: 3
Maximum drilling distance: 7
Arm material: Steel
Arm finish: Nickel plated
Fixed dimension / factory setting: -8
Type of side adjustment: with screw
Side adjustment: +/- 2.5 mm
Type of depth adjustment: convenient with spiral screw
Depth adjustment: +/- 1 mm
Gap: 3
Item package: 1 piece
Packaging: Commercial packing

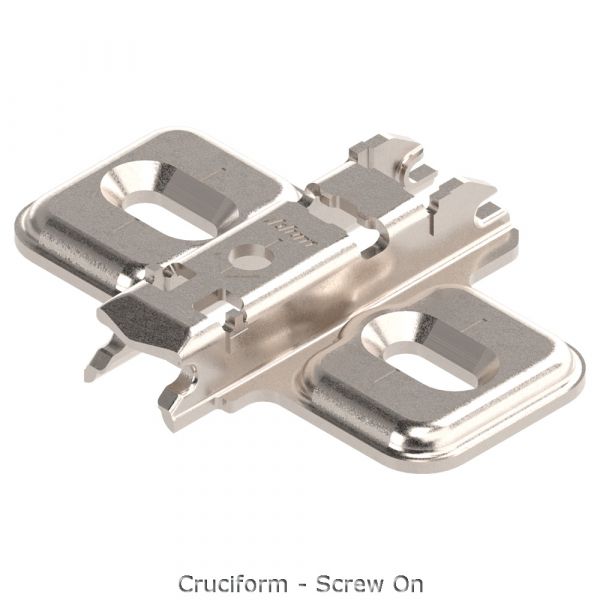

Blum CLIP Mounting Plate Cruciform 0 mm Steel - Screw-on
Part number: 173L6100
Item number: 07480175
Colour / finish: Nickel plated
Technical Attributes
Mounting plate system: CLIP
Shape of mounting plate: Cruciform
Material: Steel
Fixing: for chipboard screws
Distance cabinet front edge to first fixing position: 37
Mounting plates height: adjustment with elongated hole
Height adjustment: +/- 3 mm
Height: 8.5
Spacing: 0
Angle: 0
Item package: 1 piece
Packaging: industrial packing
Fixing positions: fixing position 1/cruciform mounting plate
