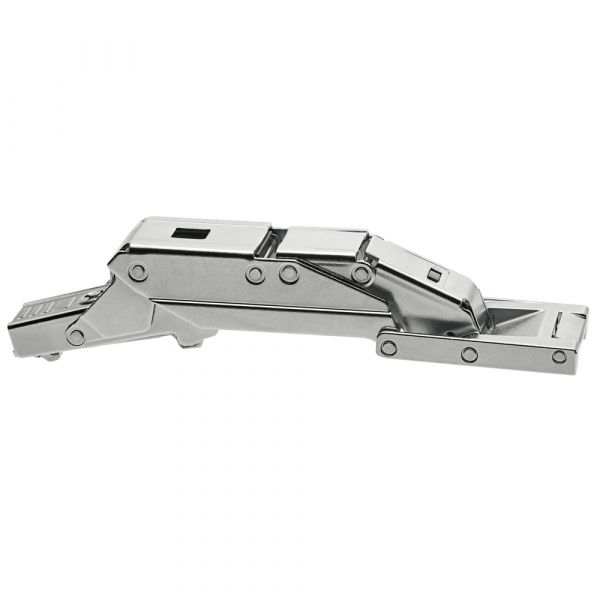

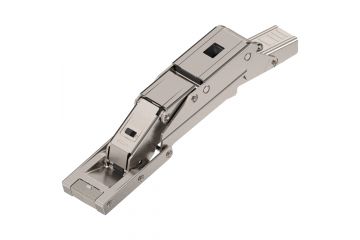

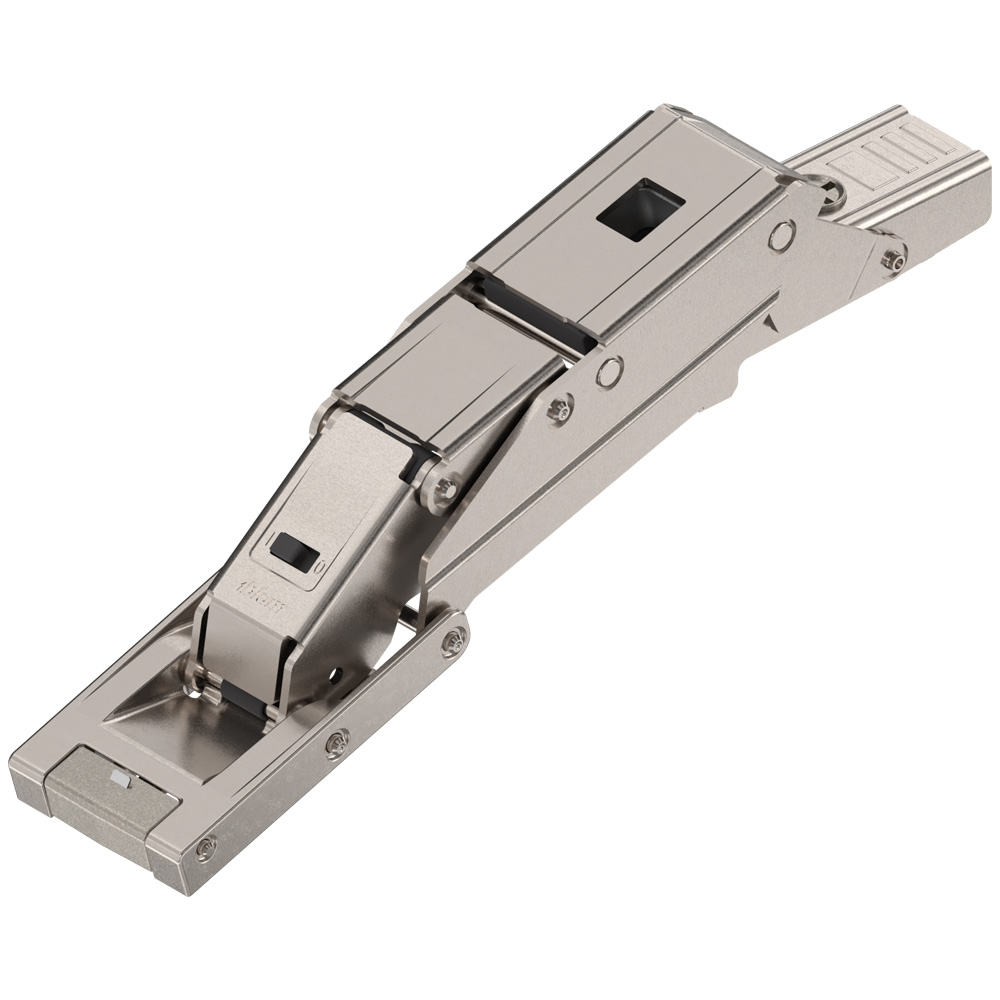

Blum - Clip Top Blumotion Cristallo Hinge 110° + Cam Mounting Plate Cruciform
- View all variations as list
| CODE | Finish | Availability | Price | ||
|---|---|---|---|---|---|
|
71B4500C-OB/BL1736100BL
|
In stock
|
AED3061 | ||
|
71B4500C-NP/173L6100
|
In stock
|
AED2580 |
Part number: 71B4500C
Item number: 02650369
Brand: Blum
Technical Attributes
Application: CRISTALLO hinge
Opening angle: 110
Closing mechanism: with spring
Hinge variant: with integrated BLUMOTION
Cover cap type: 70.4503
Arm material: Steel
Arm finish: Nickel plated / Onyx Black
Collision measurement (hinge arm height): 56.5
Fixed dimension / factory setting: -3.5
Type of side adjustment: with screw
Side adjustment: +/- 2 mm
Type of depth adjustment: convenient with spiral screw
Depth adjustment: + 3/- 2 mm
Gap: 1.5
Item package: 1 piece
Packaging industrial: packing
Blum - Cam Mounting Plate Cruciform 0mm Spacing
Product Code: BL1736100
Brand: Blum
Height adjustment: +/-3mm
Finish: Nickel plated / Onyx Black
Fixing Method: Screw-on
Fixings Included: No
Required fixings: Chipboard screws Ø 3.5 or 4mm by 17mm into 18mm board
Hinge Type: CLIP
Material: Steel
Spacing: 0mm
Plate Height: 8.5mm
Type: Mounting Plate
Height Adjustment Method: Elongated Hole
Installation:
Distance between fixing positions: 32mm
Distance cabinet front edge to first fixing position: 37mm
