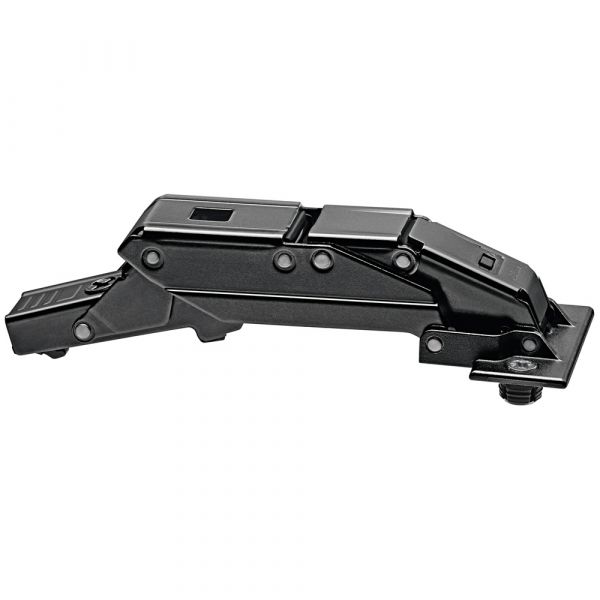

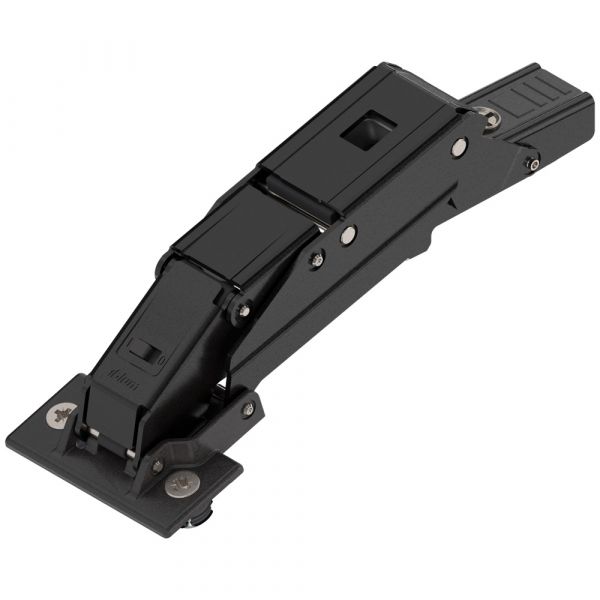

Blum - Clip Top Blumotion Hinge 110° For Thin Doors + Cam Mounting Plate Cruciform
Product Code: 71B453T
Brand: Blum
Application: Hinge for thin doors
Opening angle: 110
Closing mechanism: with spring
Hinge variant: With integrated BLUMOTION
Cover cap type: 70.4503
Cover cap type: 70T7504 – boss cover cap
Boss material: Zinc boss
Boss finish: Onyx black
Boss assembly: EXPANDO T
Flange width: 44
Flange length: 22
Flange height: 2.2
Diametre of fixing holes: 10
Distance between drillings: 32
Minimum drilling distance: 23.5
Maximum drilling distance: 46
Arm material: Steel
Arm finish: Onyx black
Collision measurement (hinge arm height): 56.5
Fixed dimension / factory setting: -3.5
Type of side adjustment: With screw
Side adjustment: +/- 2 mm
Type of depth adjustment: convenient with spiral screw
Depth adjustment: + 3/- 2 mm
Gap: 1.5
Item package: 1 piece
Packaging: Commercial packing

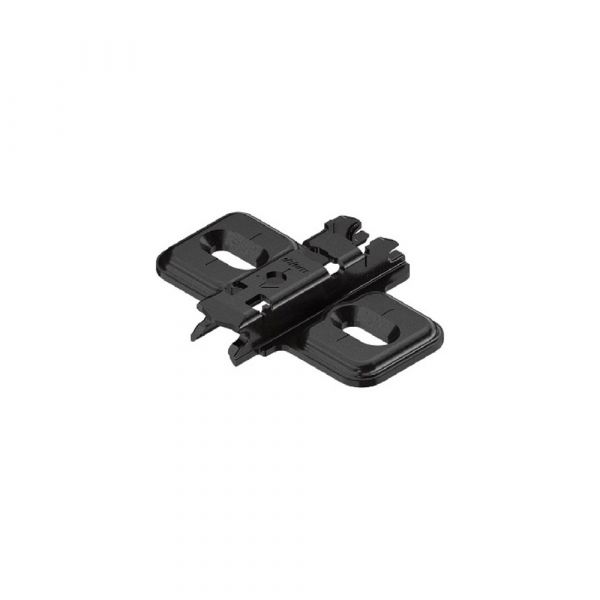

Blum - Cam Mounting Plate Cruciform 0mm Spacing
Product Code: BL1736100BL
Brand: Blum
Height adjustment: +/-3mm
Finish: Onyx Black
Fixing Method: Screw-on
Fixings Included: No
Required fixings: Chipboard screws Ø 3.5 or 4mm by 17mm into 18mm board
Hinge Type: CLIP
Material: Steel
Spacing: 0mm
Plate Height: 8.5mm
Type: Mounting Plate
Height Adjustment Method: Elongated Hole
Installation:
Distance between fixing positions: 32mm
Distance cabinet front edge to first fixing position: 37mm
