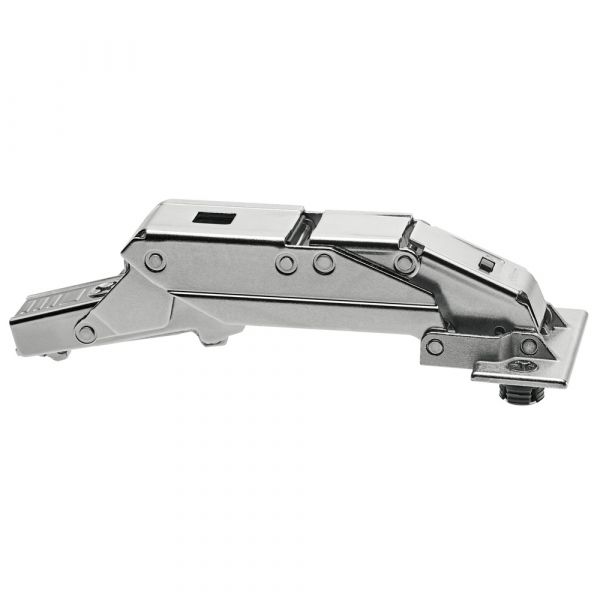

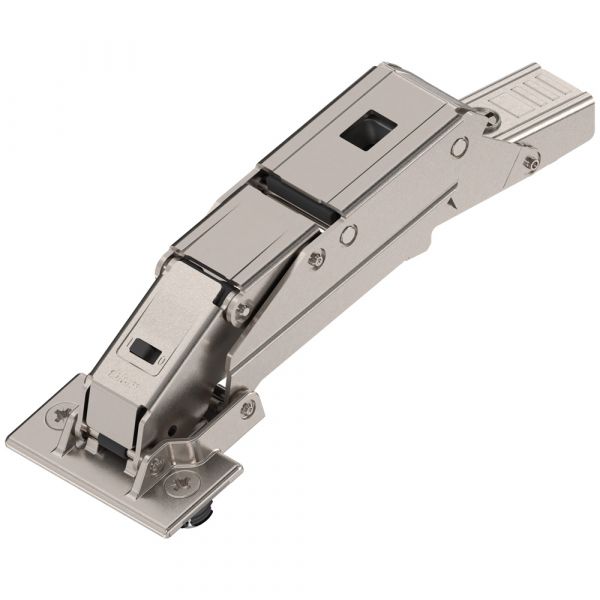

Blum - Clip Top Blumotion Hinge 110° For Thin Doors + Horizontal Cam Plate

Brand: Blum

Part Number: 71B453T

Item Number: 07021363

Colour / Finish: Nickel plated

Thin fronts from 8-14mm.

EXPANDO T fixing system for a variety of from materials.

CLIP top BLUMOTION with integrated BLUMOTION (with deactivation option).

CLIP top with or without closing mechanism (spring).

Protrusion (for cabinets with inner pull-outs or pull-out shelfs).

110° opening angle.

3-dimensional front adjustment.

Tool-free door to cabinet assembly and removal.

Technical Attributes

Application: Hinge for Thin Doors

Opening Angle: 110

Closing Mechanism: With Spring

Hinge Variant: With integrated BLUMOTION

Cover Cap Type: 70.4503

Cover Cap Type: 70T7504 – Boss Cover Cap

Boss Material: Zinc Boss

Boss Finish: Nickel plated

Boss Assembly: EXPANDO T

Flange Width: 44

Flange Length: 22

Flange Height: 2.2

Diametre of Fixing Holes: 10

Distance Between Drillings: 32

Minimum Drilling Distance: 23.5

Maximum Drilling Distance: 46

Arm Material: Steel

Arm Finish: Nickel Plated

Collision Measurement (Hinge Arm Height): 56.5

Fixed Dimension / Factory Setting: -3.5

Type of Side Adjustment: with Screw

Side Adjustment: +/- 2 mm

Type of Depth Adjustment: Convenient with Spiral Screw

Depth Adjustment: + 3/- 2 mm

Gap: 1.5

Item Package: 1 Piece

Area of Application - EXPANDO T

EXPANDO T is suitable for fixing Blum fittings to thin front materials in furniture manufacturing

With sufficient stability and strength, front materials of 8mm thickness and above may be used

Limitation of Liability

Blum accepts no liability for the use of EXPANDO T in combination with materials not listed or fittings from other manufacturers.

It is recommended that the assembly be carried out by an experienced furniture manufacturer

Note:

A trial application is recommended when combining CLIP top BLUMOTION hinges and CLIP top hinges with springs on small, light fronts up to 300mm wide. Combining these is not recommended for wider fronts.

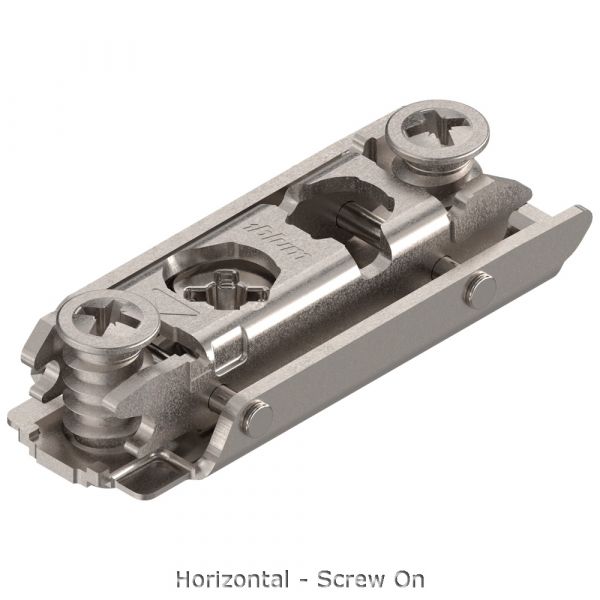

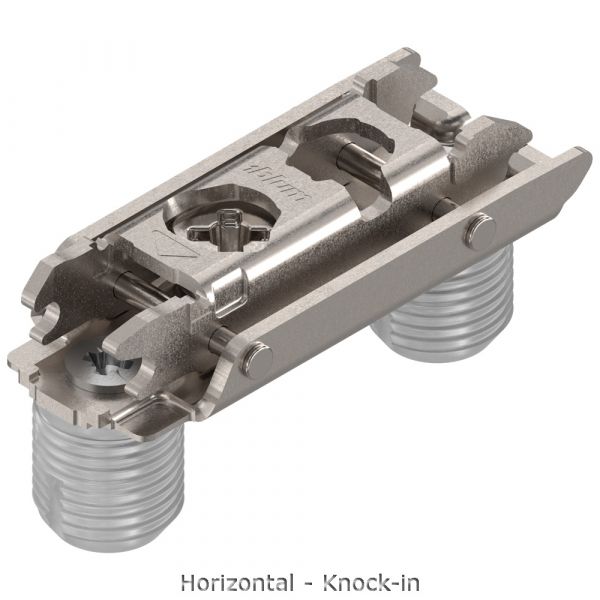

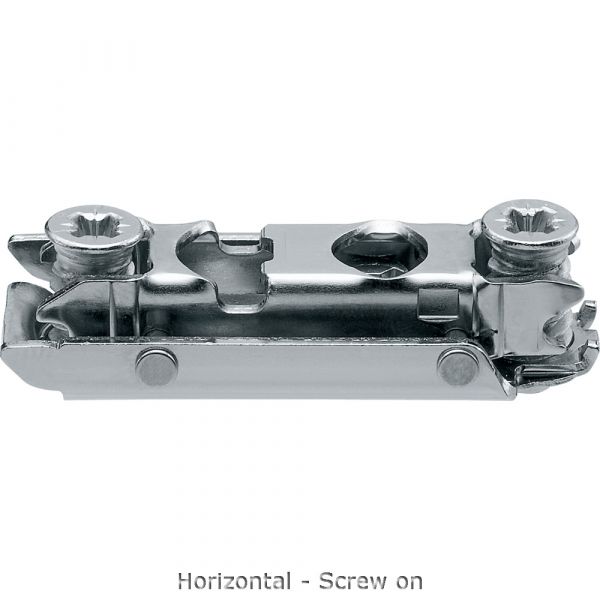

CLIP TOP BLUMOTION - Horizontal Cam Mounting Plate - Nickel Plated Finish

Technical Attributes:

Mounting Plate System: CLIP

Colour / Finish: Nickel Plated

Shape of Mounting Plate: Straight

Material: Steel

Surface of Bottom Part: Nickel Plated

Distance Cabinet Front Edge to First Fixing Position: 20

Mounting Plates Height Adjustment: With Cam

Height Adjustment: +/- 2 Mm

Height: 8.5

Spacing: 0

Angle: 0

Item Package: 1 Piece

Material of Bottom Part: Steel
