Blum - Clip Top Blumotion Profile Door Hinge 95° Onyx Black + Cam Mounting Plate Cruciform

71B9550 ONS/BL1736100BL
AED1400
Excl. VAT
1 Set (AED14.00 per Set)
In stock
Price in points: 14 points

Brand: Blum

Finish: Onyx Black

Application: profile door hinge

Cranking: Inset application

Opening angle: 95

Closing mechanism: with spring

Hinge variant: With integrated BLUMOTION

Cover cap type: 94M3603

Cover cap type: 70.1663

Boss material: Steel boss

Boss finish: Onyx black

Boss assembly: INSERTA

Flange width: 57

Flange length: 27.5

Flange height: 6.4

Diametre hinge boss drilling: 35

Diametre of fixing holes: 8

Distance between drillings: 45

Eccentric position of fixing holes to hinge boss hole: 9.5

Boss drilling depth: 13

Minimum drilling distance: 3

Maximum drilling distance: 7

Arm material: Steel

Arm finish: Onyx black

Collision measurement (hinge arm height): 40

Fixed dimension / factory setting: -7

Type of side adjustment: With screw

Side adjustment: +/- 2 mm

Type of depth adjustment: convenient with spiral screw

Depth adjustment: + 3/- 2 mm

Gap: 1.5

Item package: 1 piece

Packaging: Commercial packing

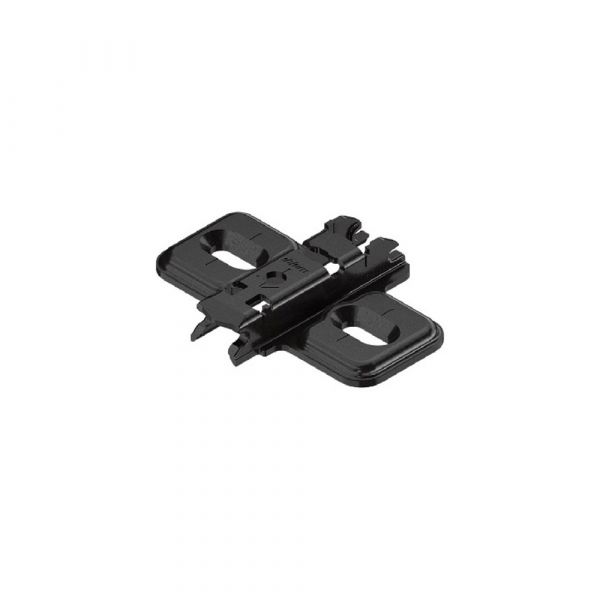

Blum - Cam Mounting Plate Cruciform 0mm Spacing

Product Code: BL1736100BL

Brand: Blum

Height adjustment: +/-3mm

Finish: Onyx Black

Fixing Method: Screw-on

Fixings Included: No

Required fixings: Chipboard screws Ø 3.5 or 4mm by 17mm into 18mm board

Hinge Type: CLIP

Material: Steel

Spacing: 0mm

Plate Height: 8.5mm

Type: Mounting Plate

Height Adjustment Method:  Elongated Hole


Installation:

Distance between fixing positions: 32mm

Distance cabinet front edge to first fixing position: 37mm
