Blum - Clip Top Blumotion Profile/Thick Door Hinge 95° + Cruciform Mounting Plate

CODE: 71B9550/173L6100

Write a review

AED11⁸³

Excl. VAT

1 Set (AED11.83 per Set)

In stock

Hinge Mounting Type:

Full Overlay (Overlay application) Half Overlay (Dual application) Inset (Inset application)

Plate Fixing Type:

Knock-in ( expando) Screw-on (without dowels)

Price in points: 12 points

+ −

View all variations as list

CODE	Hinge Mounting Type	Plate Fixing Type	Availability	Price
71B9650/173L6100	Half Overlay (Dual application)	Screw-on (without dowels)	In stock	AED12⁷⁸	+ −
71B9680/174E6100.01	Half Overlay (Dual application)	Knock-in ( expando)	In stock	AED13⁴⁵	+ −
71B9580/174E6100.01	Full Overlay (Overlay application)	Knock-in ( expando)	In stock	AED12⁵⁰	+ −

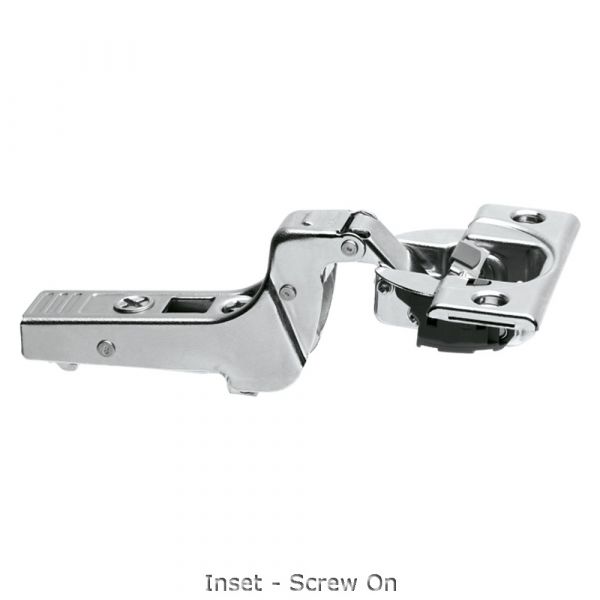

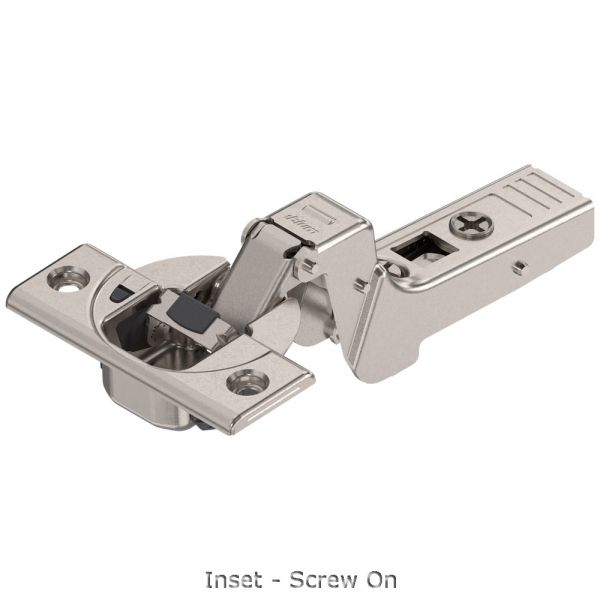

71B9750/173L6100	Inset (Inset application)	Screw-on (without dowels)	In stock	AED12⁹¹	+ −
71B9780/174E6100.01	Inset (Inset application)	Knock-in ( expando)	In stock	AED13⁵⁸	+ −

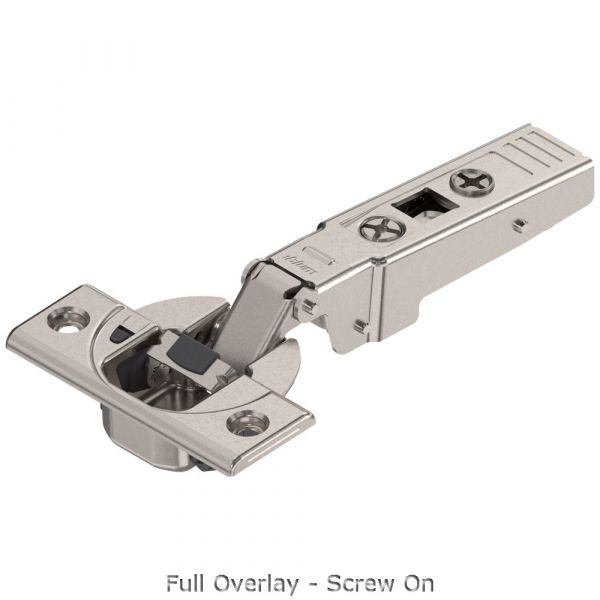

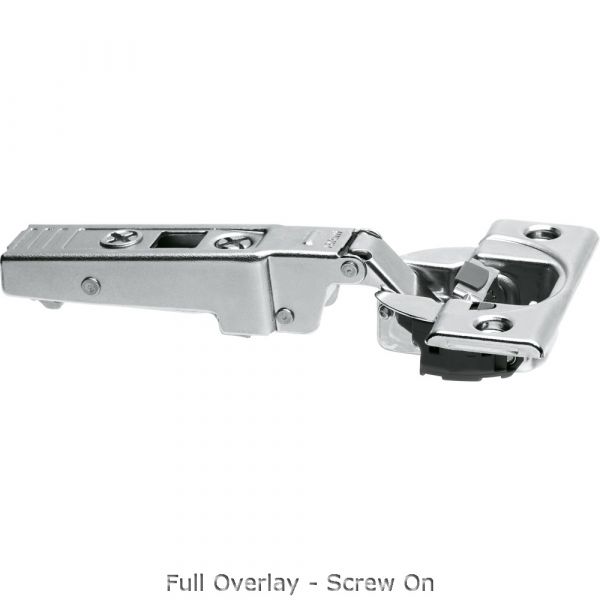

71B9550/173L6100	Full Overlay (Overlay application)	Screw-on (without dowels)	In stock	AED11⁸³	+ −

Vendor: Economic Trading

Description
Features

Brand: Blum

Hinge for thick doors and doors with profile.

CLIP top BLUMOTION with integrated BLUMOTION (with deactivation option).

CLIP top with or without closing mechanism (spring).

95° opening angle.

3-dimensional front adjustment.

Convenient spiral-tech depth adjustment.

Tool-free door to cabinet assembly and removal.

With INSERTA tool-free hinge to door assembly.

Technical Attributes

Application: Profile Door Hinge

Opening Angle: 95

Closing Mechanism: With Spring

Hinge Variant: With Integrated BLUMOTION

Boss Material: Steel Boss

Boss Finish: Nickel Plated

Diametre Hinge Boss Drilling: 35

Distance Between Drillings: 45

Eccentric Position of Fixing Holes to Hinge Boss Hole: 9.5

Boss Drilling Depth:13

Minimum Drilling Distance:3

Maximum Drilling Distance: 7

Arm Material: Steel

Arm Finish: Nickel Plated

Type of Side Adjustment: With Screw

Side Adjustment: +/- 2 mm

Type of Depth Adjustment: Convenient with Spiral Screw

Depth Adjustment: + 3/- 2 mm

Gap: 1.5

Item Package: 1 Piece

Note:

A trial application is recommended when combining CLIP top BLUMOTION hinges with springs on small, light fronts up to 300 mm wide. Combining these is not recommended for wider fronts.

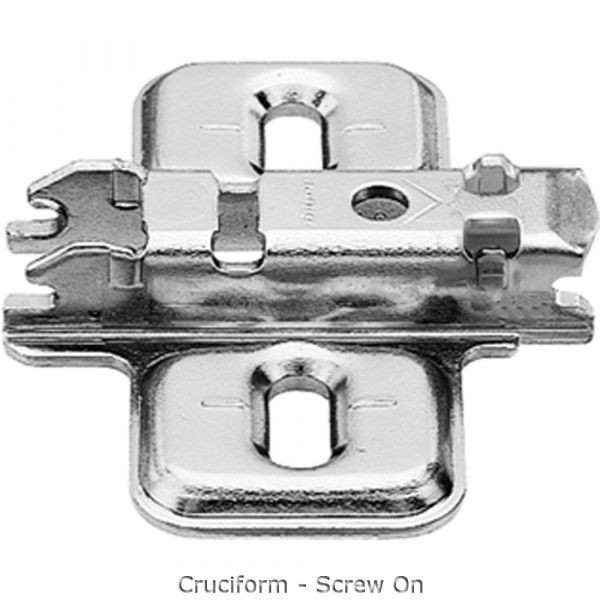

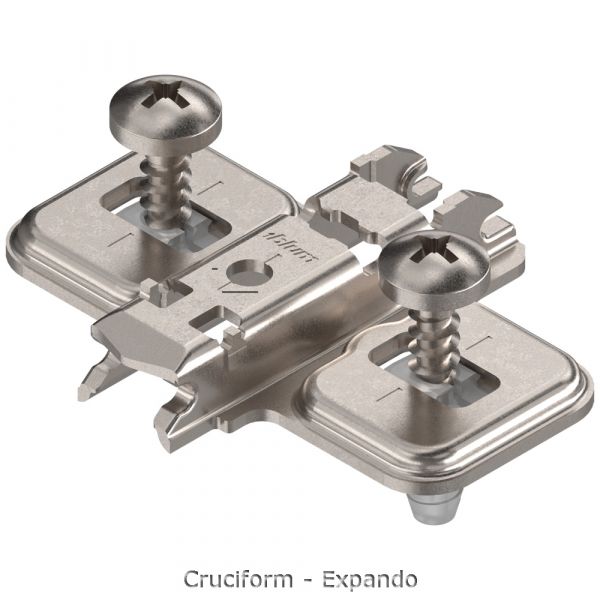

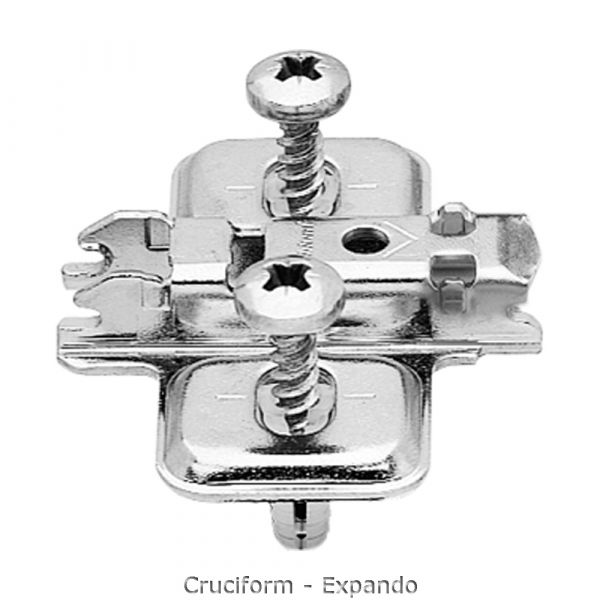

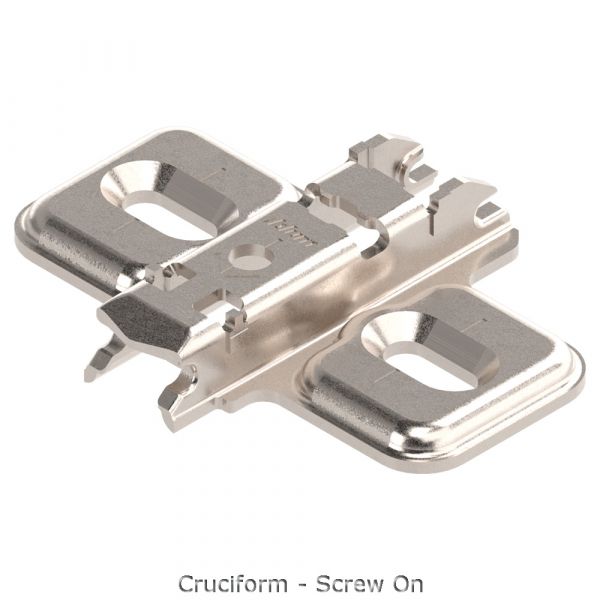

Clip Top Blumotion – Cruciform Mounting Plate – Nickel Plated Finish

Technical Attributes

Colour / finish: Nickel plated

Mounting Plate System: CLIP

Shape of Mounting Plate: Cruciform

Material: Steel

Distance Cabinet Front Edge to First Fixing Position: 37

Diametre Of Fixing Holes: 5

Drilling Depth of Fixing Holes: 11.5

Mounting Plates Height Adjustment: with Elongated Hole

Height: 8.5

Spacing: 0
