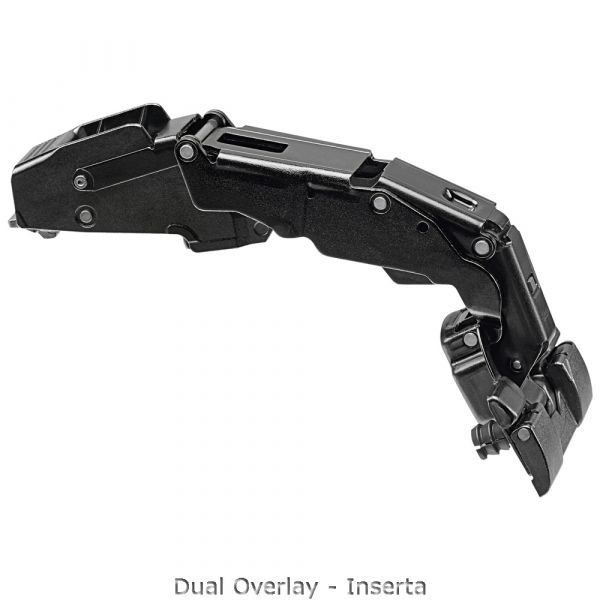

Blum - Clip Top Blumotion Wide Angle Hinge 155° Dual Application + Cam Mounting Plate Cruciform
Product Code: 71B7690 ONS
Brand: Blum
Colour / finish: Onyx black
Application: wide angle hinge
Cranking: Dual application
Opening angle: 155
Closing mechanism: with spring
Hinge variant: With integrated BLUMOTION
Cover cap type: 70.4503
Boss material: Steel boss
Boss finish: Onyx black
Boss assembly: Inserta
Flange width: 57
Flange length: 22
Flange height: 4.8
Diametre hinge boss drilling: 35
Diametre of fixing holes: 8
Distance between drillings: 45
Eccentric position of fixing holes to hinge boss hole: 9.5
Boss drilling depth: 11.7
Minimum drilling distance: 3
Maximum drilling distance: 8
Arm material: Zinc
Arm finish: Onyx black
Collision measurement (hinge arm height): 72
Fixed dimension / factor y setting: 1.5
Type of side adjustment: with screw
Side adjustment: +/- 2 mm
Type of depth adjustment: convenient with spiral screw
Depth adjustment: + 3/- 2 mm
Gap: 1.5
Item package: 1 piece
Packaging: Commercial packing

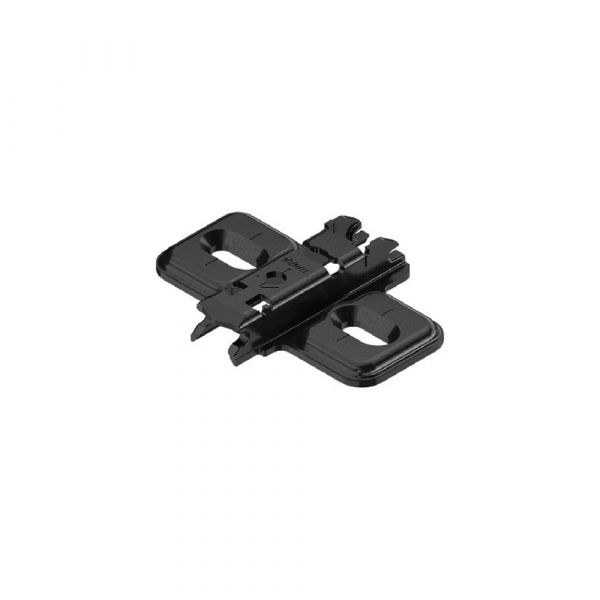

Blum - Cam Mounting Plate Cruciform 0mm Spacing
Product Code: BL1736100BL
Brand: Blum
Height adjustment: +/-3mm
Finish: Onyx Black
Fixing Method: Screw-on
Fixings Included: No
Required fixings: Chipboard screws Ø 3.5 or 4mm by 17mm into 18mm board
Hinge Type: CLIP
Material: Steel
Spacing: 0mm
Plate Height: 8.5mm
Type: Mounting Plate
Height Adjustment Method: Elongated Hole
Installation:
Distance between fixing positions: 32mm
Distance cabinet front edge to first fixing position: 37mm
