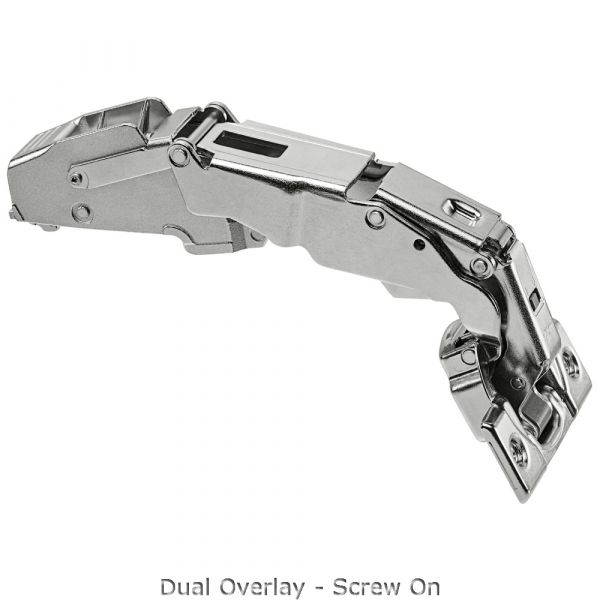

Blum - CLIP Top BLUMOTION Wide Angle Hinge 155° Dual Application + Cruciform Mounting Plate
- View all variations as list
| CODE | Boss Assembly | Availability | Price | ||
|---|---|---|---|---|---|
|
71B7690/173L6100
|
In stock
|
AED2741 | ||
|
71B7650/173L6100
|
In stock
|
AED2412 |
Brand: Blum
Colour / finish: Nickel plated
Technical Attributes:
Application: wide angle hinge
Cranking: Dual application
Opening angle: 155
Closing mechanism: with spring
Hinge variant: With integrated BLUMOTION
Cover cap type: 70.4503
Boss material: Steel boss
Boss finish: Nickel plated
Boss assembly: Inserta / Screw-on
Flange width: 57
Flange length: 22
Flange height: 4.8
Diametre hinge boss drilling: 35
Diametre of fixing holes: 8
Distance between drillings: 45
Exccentric position of fixing holes to hinge boss hole: 9.5
Boss drilling depth: 11.7
Minimum drilling distance: 3
Maximum drilling distance: 8
Arm material: Zinc
Arm finish: Nickel plated
Collision measurement (hinge arm height): 72
Fixed dimension / factory setting: 1.5
Type of side adjustment: With screw
Side adjustment: +/- 2 mm
Type of depth: adjustment convenient with spiral screw
Depth adjustment: + 3/- 2 mm
Gap: 1.5
Item package: 1 piece
Packaging: Commercial packing
Blum CLIP Mounting Plate Cruciform 0 mm Steel - Screw-on
Part number: 173L6100
Item number: 07480175
Colour / finish: Nickel plated
Technical Attributes
Mounting plate system: CLIP
Shape of mounting plate: Cruciform
Material: Steel
Fixing: for chipboard screws
Distance cabinet front edge to first fixing position: 37
Mounting plates height: adjustment with elongated hole
Height adjustment: +/- 3 mm
Height: 8.5
Spacing: 0
Angle: 0
Item package: 1 piece
Packaging: industrial packing
Fixing positions: fixing position 1/cruciform mounting plate
