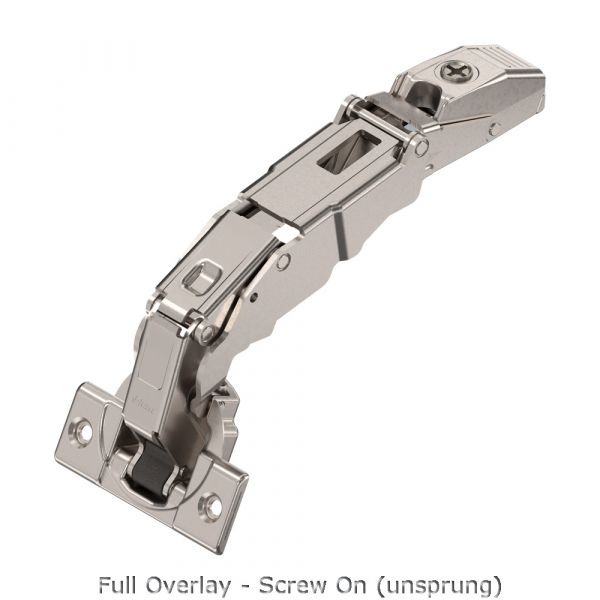

Blum - CLIP Top Wide Angle Hinge For Zero Protrusion 155° + Cruciform Mounting Plate

Brand: Blum

Colour / finish: Nickel plated

Technical Attributes:

Application: Wide angle hinge for zero protrusion

Cranking: Overlay application

Opening angle: 155

Closing mechanism: unsprung / with spring

Hinge variant with free movement for: TIP-ON

Cover cap type: 70.4503

Cover cap type: 70T7504 – boss cover cap

Boss material: Steel boss

Boss finish: Nickel plated

Boss assembly: Screw-on / Knock-in / Inserta

Flange width: 57

Flange length: 22

Flange height: 3.2

Diametre hinge boss drilling: 35

Distance between drillings: 45

Exccentric position of fixing holes to hinge boss hole: 9.5

Boss drilling depth: 11.7

Minimum drilling distance: 3

Maximum drilling distance: 8

Arm material: Zinc

Arm finish: Nickel plated

Collision measurement (hinge arm height): 62

Fixed dimension / factory setting: 11

Type of side adjustment: With screw

Side adjustment: +/- 2 mm

Type of depth adjustment: convenient with spiral screw

Depth adjustment: + 3/- 2 mm

Gap: 1.5

Item package: 1 piece

Packaging: Commercial packing

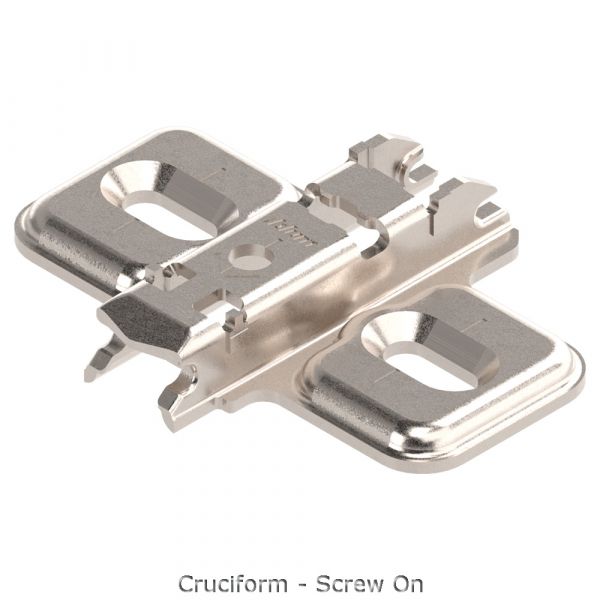

Blum CLIP Mounting Plate Cruciform 0 mm Steel - Screw-on

Part number:  173L6100

Item number:  07480175

Colour / finish:  Nickel plated

Technical Attributes:

Mounting plate system: CLIP

Shape of mounting plate: Cruciform

Material: Steel

Fixing: for chipboard screws

Distance cabinet front edge to first fixing position: 37

Mounting plates height: adjustment with elongated hole

Height adjustment: +/- 3 mm

Height: 8.5

Spacing: 0

Angle: 0

Item package: 1 piece

Packaging: industrial packing

Fixing positions: fixing position 1/cruciform mounting plate
