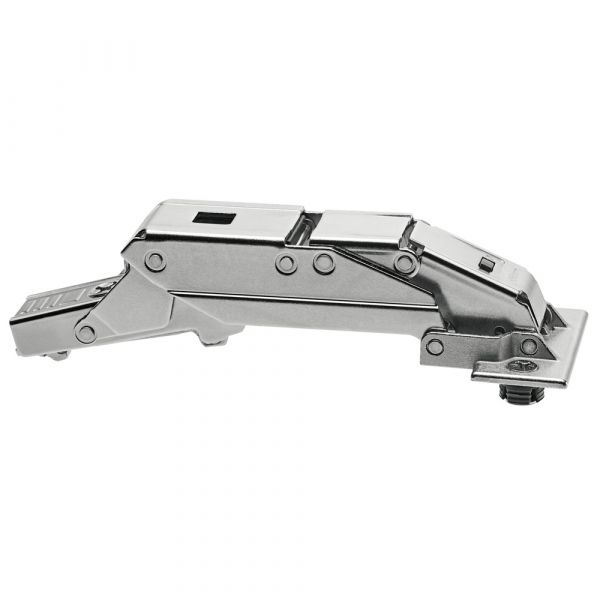

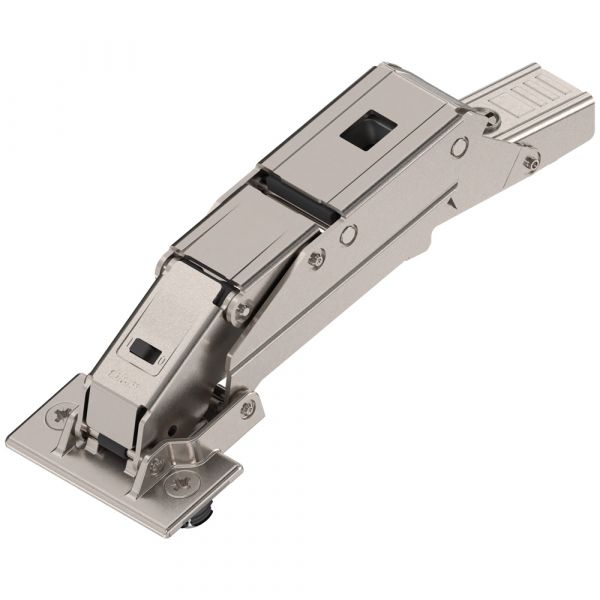

Blum - Clip Top Blumotion Hinge 110° for Thin Doors + Aluminium Plate (Screw On)
Product Code: 71B453T/175L6600.22
Brand: Blum
Colour / finish: Nickel plated
Thin fronts from 8-14mm
EXPANDO T fixing system for a variety of from materials
CLIP top BLUMOTION with integrated BLUMOTION (with deactivation option)
CLIP top with or without closing mechanism (spring)
Protrusion (for cabinets with inner pull-outs or pull-out shelfs)
110° opening angle
3-dimensional front adjustment
Tool-free door to cabinet assembly and removal
Technical Attributes
Application: Hinge for Thin Doors
Opening angle: 110
Closing Mechanism: With Spring
Hinge Variant: With integrated BLUMOTION
Cover Cap Type: 70.4503
Cover Cap Type: 70T7504 – Boss Cover Cap
Boss Material: Zinc Boss
Boss Finish: Nickel plated
Boss Assembly: EXPANDO T
Flange Width: 44
Flange Length: 22
Flange Height: 2.2
Diametre of Fixing Holes: 10
Distance Between Drillings: 32
Minimum Drilling Distance: 23.5
Maximum Drilling Distance: 46
Arm Material: Steel
Arm Finish: Nickel Plated
Collision Measurement (Hinge Arm Height): 56.5
Fixed Dimension / Factory Setting: -3.5
Type of Side Adjustment: with Screw
Side Adjustment: +/- 2 mm
Type of Depth Adjustment: Convenient with Spiral Screw
Depth Adjustment: + 3/- 2 mm
Gap: 1.5
Item Package: 1 Piece
Area of Application - EXPANDO T
EXPANDO T is suitable for fixing Blum fittings to thin front materials in furniture manufacturing.
With sufficient stability and strength, front materials of 8mm thickness and above may be used.
Limitation of Liability
Blum accepts no liability for the use of EXPANDO T in combination with materials not listed or fittings from other manufacturers.
It is recommended that the assembly be carried out by an experienced furniture manufacturer.
Note:
A trial application is recommended when combining CLIP top BLUMOTION hinges and CLIP top hinges with springs on small, light fronts up to 300mm wide. Combining these is not recommended for wider fronts.

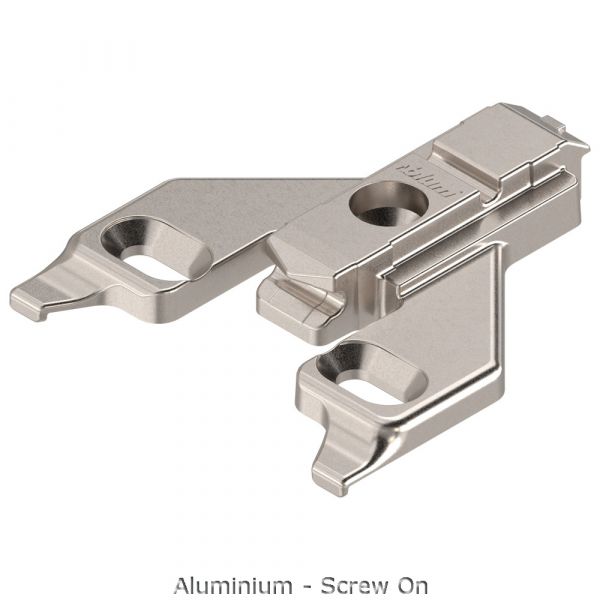

Clip Top Blumotion - Aluminium Mounting Plate (Screw On) - Nickel Plated Finish
Technical Attributes
Mounting Plate System: CLIP
Colour / Finish: Nickel Plated
Shape of Mounting Plate: Cruciform
Material: Zinc
Mounting Plate Variant: Special Dimension A 12.5 mm
Mounting Plate Variant: Face Frame Construction/Stop Flanges
Mounting Plate Variant: Additional Fixing Hole
Fixing: For Chipboard Screws
Distance Cabinet Front Edge to First Fixing Position: 12.5
Mounting Plates Height Adjustment: With Elongated Hole
Height Adjustment: +/- 3 mm
Height: 8.5
Spacing: 0
Angle: 0
Item Package: 1 Piece
