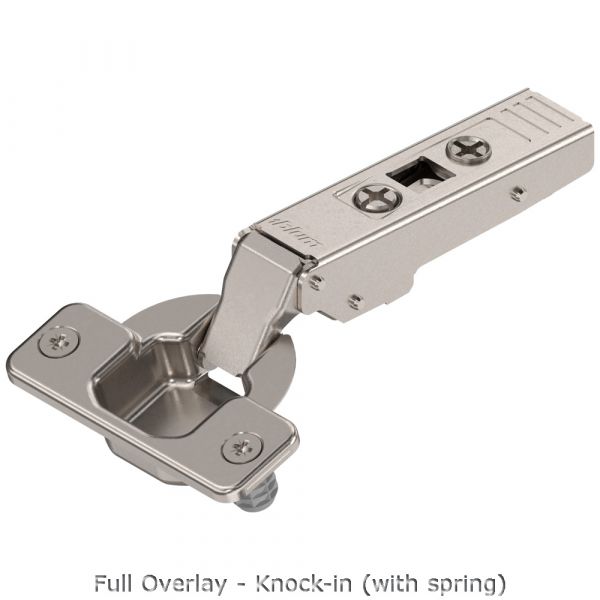

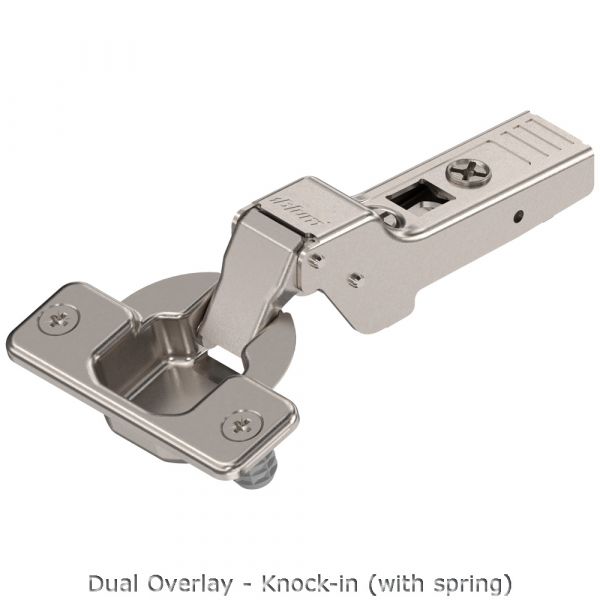

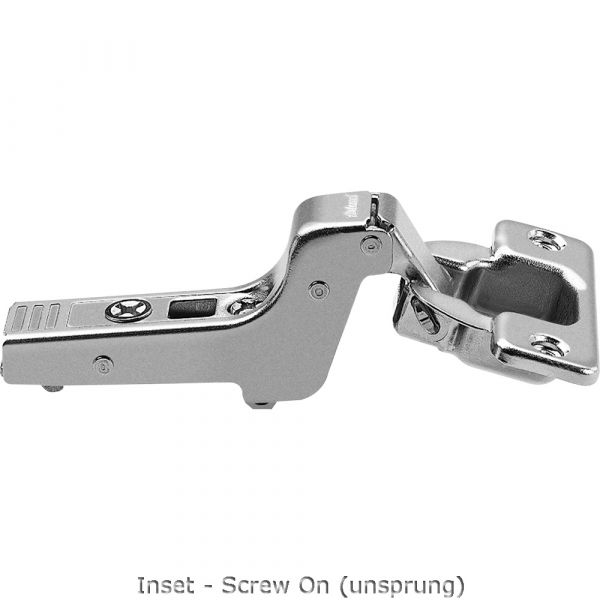

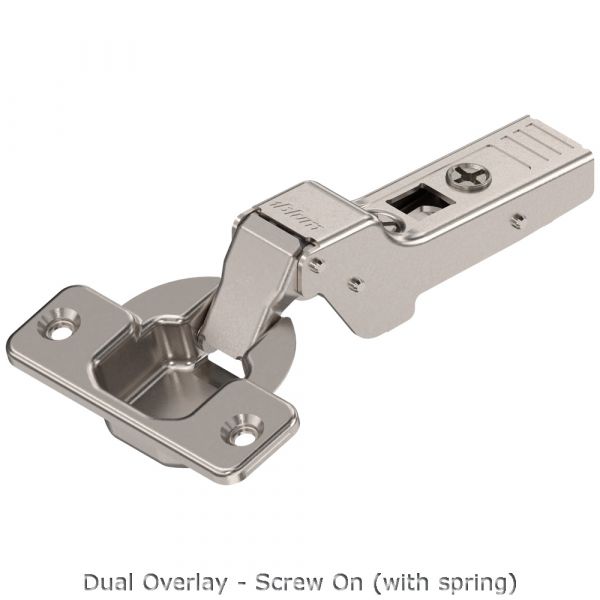

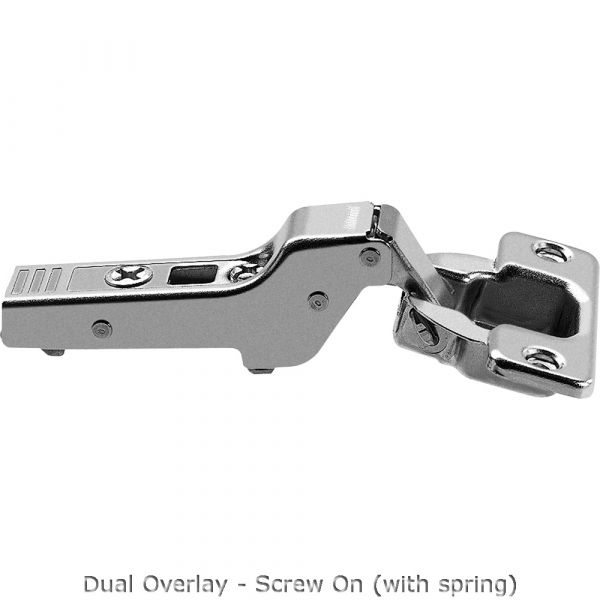

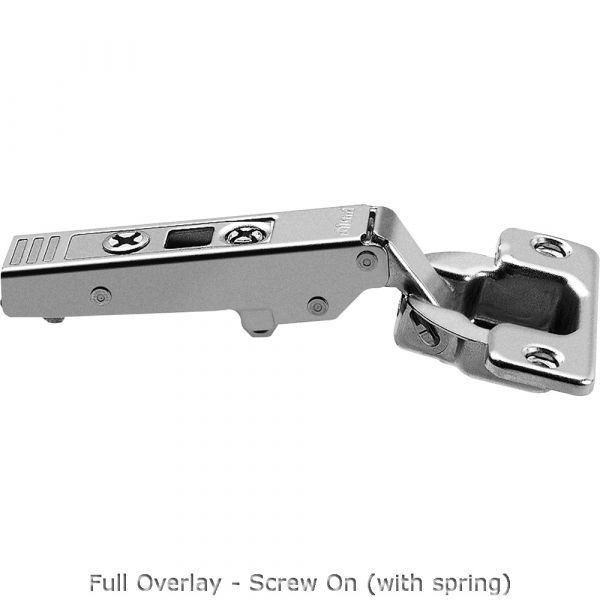

Blum - CLIP Top 107° Hinge Nickel Plated + Horizontal Cam Plate

75T1580/177H3100
AED572
Excl. VAT
1 Set (AED5.72 per Set)
In stock
Price in points: 6 points

Brand: Blum

For front thicknesses starting from 15mm.

CLIP top with or without closing mechanism (spring).

107° opening angle

3-dimensional front adjustment.Blum - CLIP Top 107° Hinge Nickel Plated + Horizontal Cam Plate

Convenient spiral-tech depth adjustment.

Tool-free door to cabinet assembly and removal.

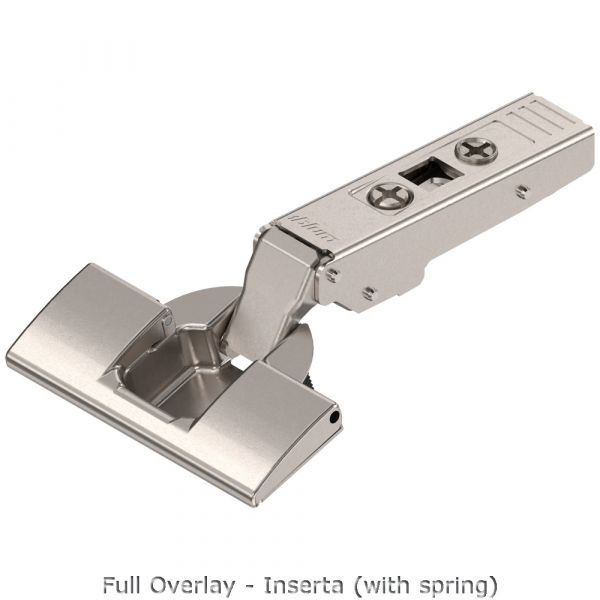

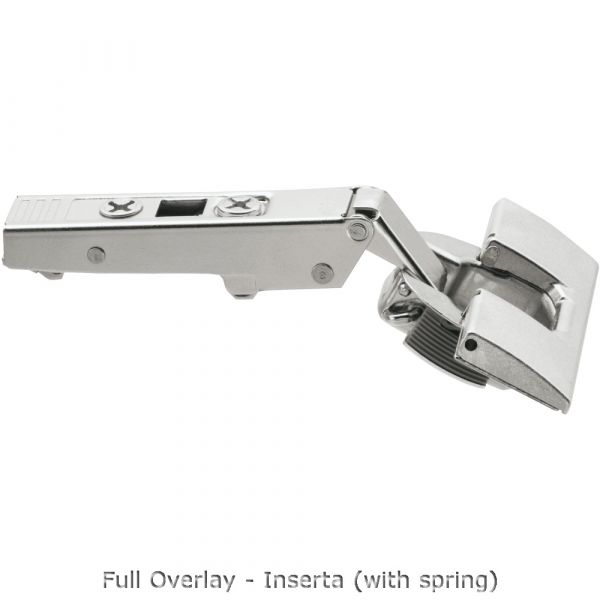

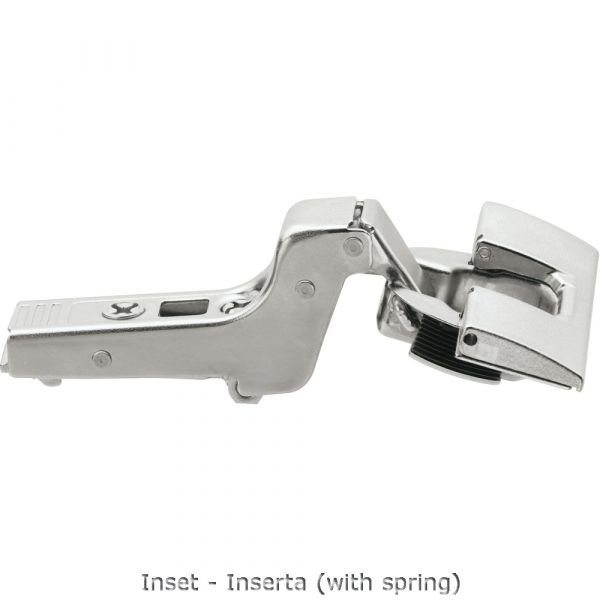

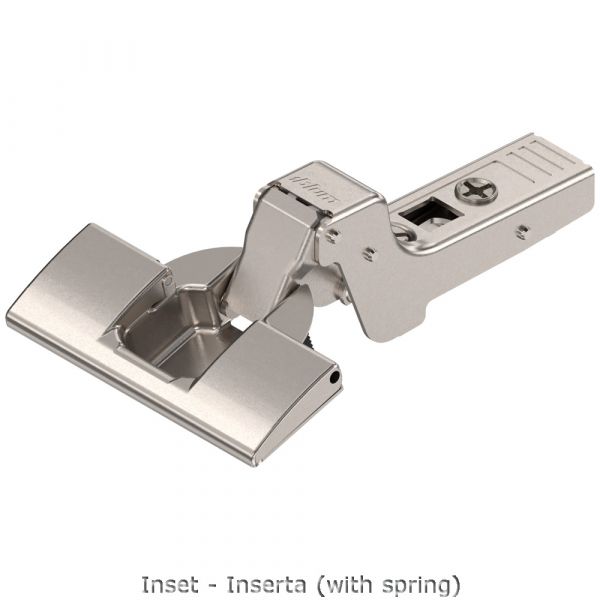

With INSERTA tool-free hinge to door assembly.


Technical Attributes

Application: Standard Hinge

Opening Angle:107

Boss Material: Steel Boss

Boss Finish: Nickel Plated

Diametre Hinge Boss Drilling: 35

Distance Between Drillings: 45

Exccentric Position of Fixing Holes to Hinge Boss Hole: 9.5

Boss Drilling Depth:11.5

Minimum Drilling Distance:3

Maximum Drilling Distance: 6

Arm Material: Steel

Arm Finish: Nickel Plated

Type of Side Adjustment: With Screw

Side Adjustment: +/- 2 mm

Type of Depth Adjustment: Convenient with Spiral Screw

Depth Adjustment: + 3/- 2 mm

Gap: 1.5

Item Package: 1 Piece

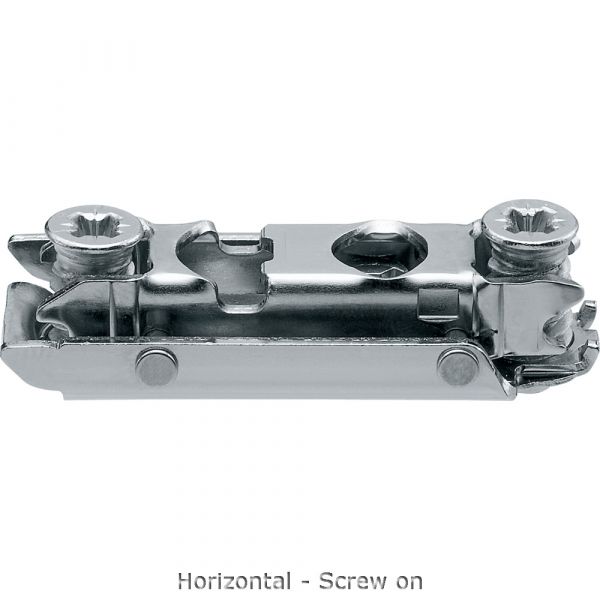

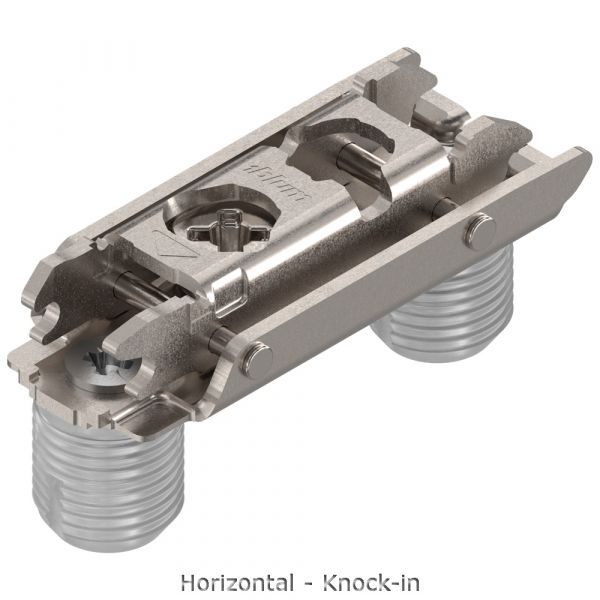

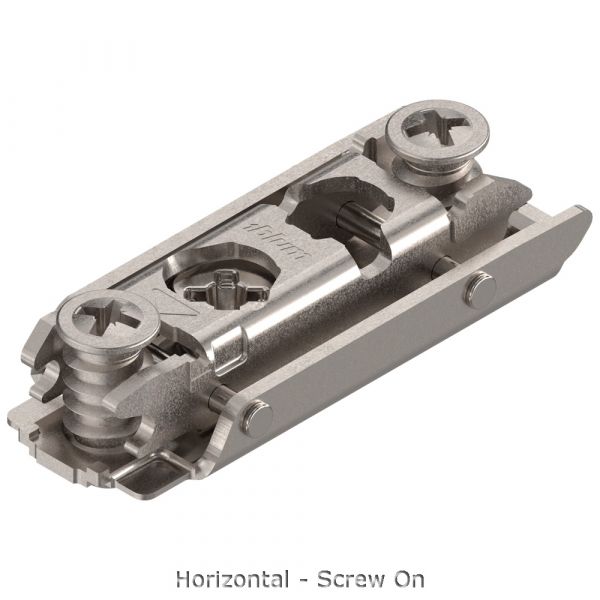

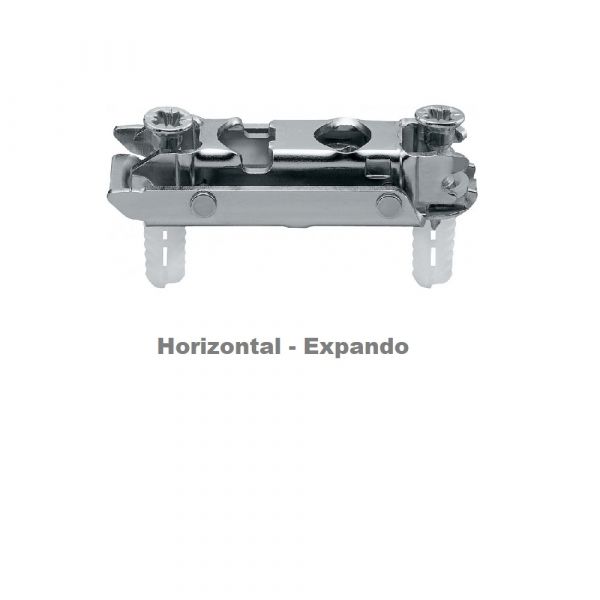

CLIP Top - Horizontal Cam Mounting Plate - Nickel Plated Finish

Technical Attributes

Mounting Plate System: CLIP

Colour / Finish: Nickel Plated

Shape of Mounting Plate: Straight

Material: Steel

Surface of Bottom Part: Nickael Plated

Distance Cabinet Front Edge to First Fixing Position: 20

Mounting Plates Height Adjustment: With Cam

Height Adjustment: +/- 2 Mm

Height: 8.5

Spacing: 0

Angle: 0

Item Package: 1 Piece

Material of Bottom Part: Steel

Brand
Blum

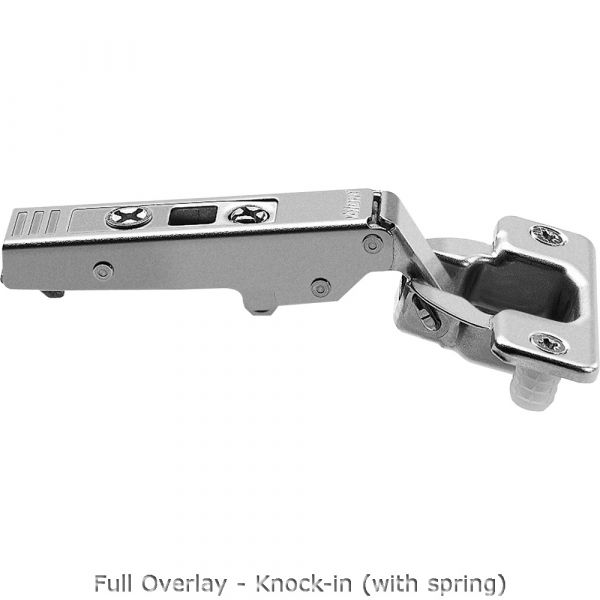

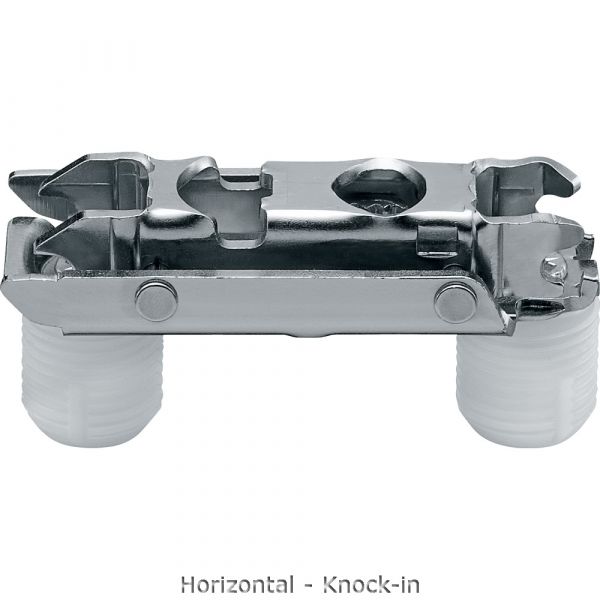

Cup Fixing Type
Knock-in
