Blum - Clip Top Blumotion 107° Standard Hinge Onyx Black + Horizontal Cam Plate (Screw On)

CODE: 75B1550/175H3100

Write a review

AED11⁰⁶

Excl. VAT

1 Set (AED11.06 per Set)

In stock

Hinge Mounting Type:

Full Overlay (Overlay application) Half Overlay (Dual application) Inset (Inset application)

Cup Fixing Type:

Screw-on

Price in points: 12 points

+ −

View all variations as list

CODE	Hinge Mounting Type	Cup Fixing Type	Availability	Price

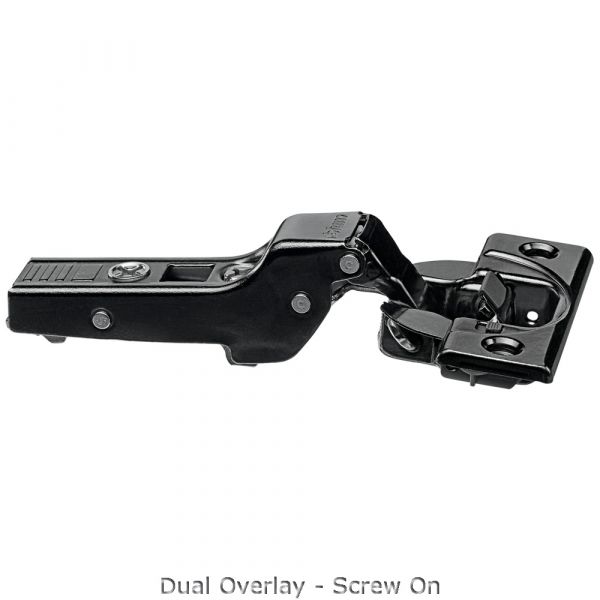

75B1650/175H3100	Half Overlay (Dual application)	Screw-on	In stock	AED11⁷¹	+ −

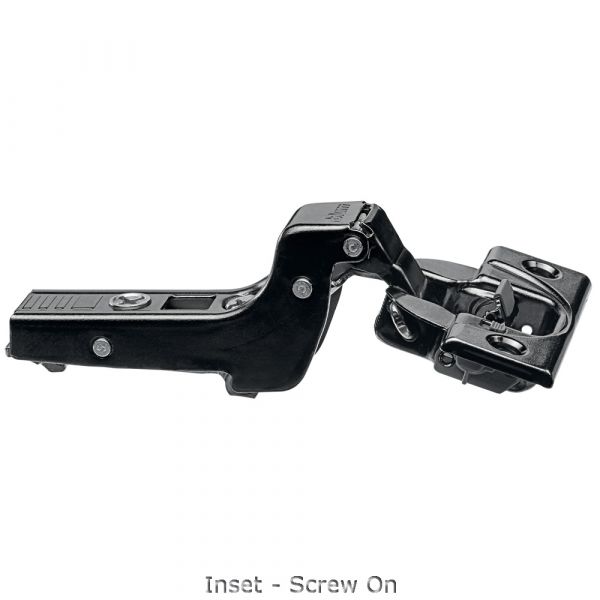

75B1750/175H3100	Inset (Inset application)	Screw-on	Out of stock	AED11⁸⁴

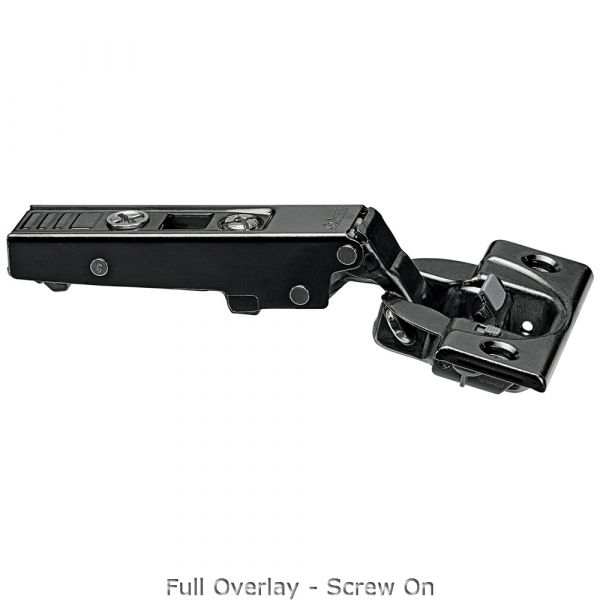

75B1550/175H3100	Full Overlay (Overlay application)	Screw-on	In stock	AED11⁰⁶	+ −

Vendor: Economic Trading

Description
Features

Brand: Blum

For front thicknesses starting from 15mm.

CLIP top BLUMOTION with integrated BLUMOTION (with deactivation option).

CLIP top with or without closing mechanism (spring).

107° opening angle

3-dimensional front adjustment

Convenient spiral-tech depth adjustment.

Tool-free door to cabinet assembly and removal.

With INSERTA tool-free hinge to door assembly.

Technical Attributes

Application: Standard Hinge

Opening Angle: 107

Closing Mechanism: With Spring

Hinge Variant: With Integrated BLUMOTION

Boss Material: Steel Boss

Boss Finish: Onyx Black

Diametre Hinge Boss Drilling: 35

Distance Between Drillings: 45

Eccentric Position of Fixing Holes to Hinge Boss Hole: 9.5

Boss Drilling Depth: 11.5

Minimum Drilling Distance: 3

Maximum Drilling Distance: 6

Arm Material: Steel

Arm Finish: Onyx Black

Type of Side Adjustment: With Screw

Side Adjustment: +/- 2 mm

Type of Depth Adjustment: Convenient with Spiral Screw

Depth Adjustment: + 3/- 2 mm

Gap: 1.5

Item Package: 1 Piece

Note:

A trial application is recommended when combining CLIP top BLUMOTION hinges with springs on small, light fronts up to 300 mm wide. Combining these is not recommended for wider fronts.

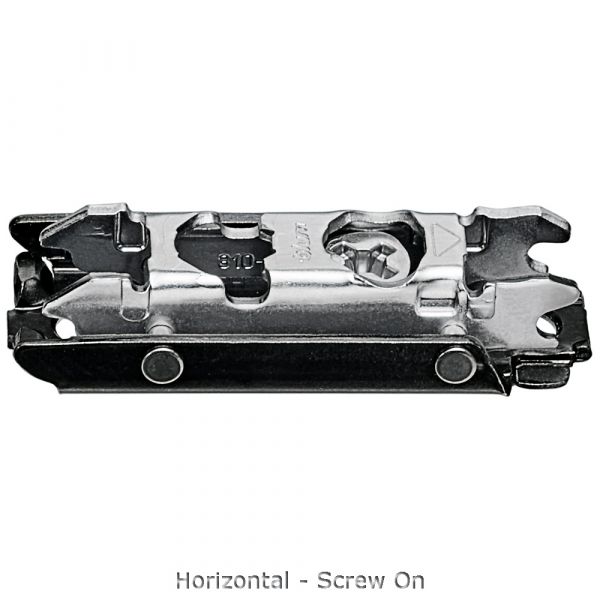

Blum Clip Top Blumotion - Horizontal Cam Mounting Plate (Screw On) - Onyx Black Finish

Technical Attributes

Mounting Plate System: CLIP

Colour / Finish: Onyx Black

Shape of Mounting Plate: Straight

Material: Steel

Surface of Bottom Part: Onyx Black

Fixing: For Chipboard Screws

Distance Cabinet Front Edge to First Fixing Position: 20

Mounting Plates Height Adjustment: With Cam

Height Adjustment: +/- 2 Mm

Height: 8.5
