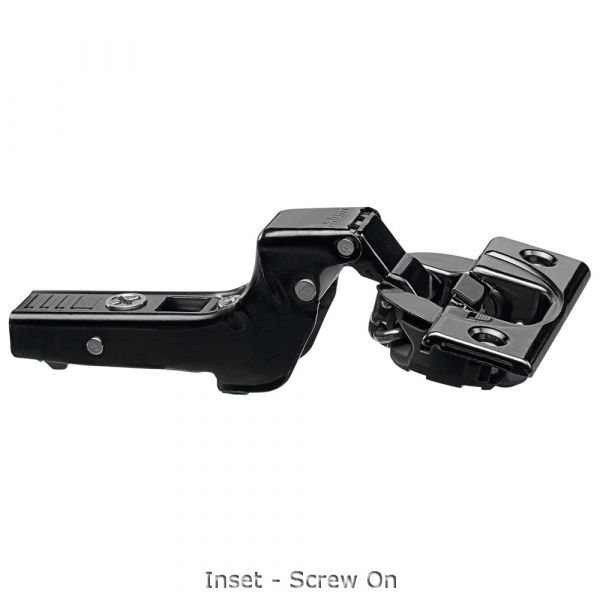

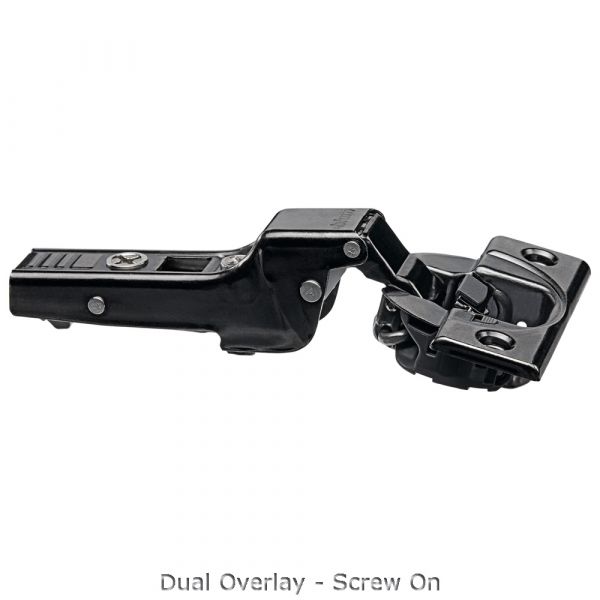

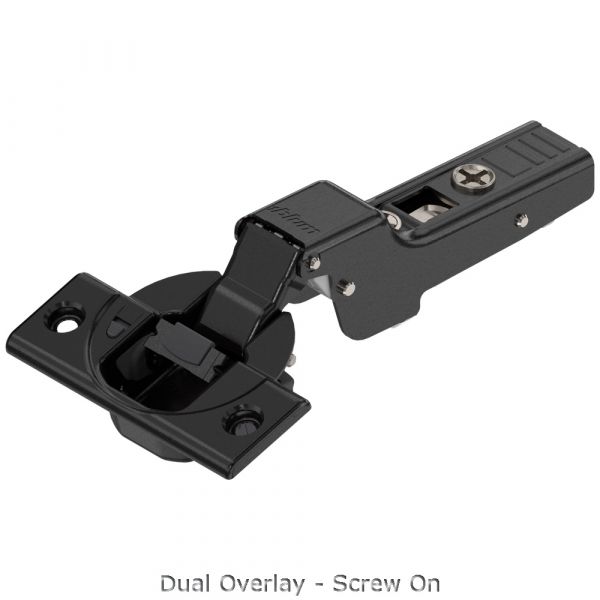

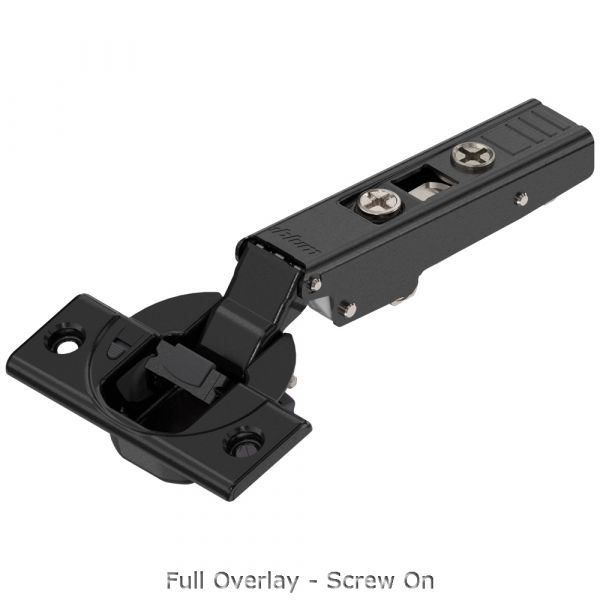

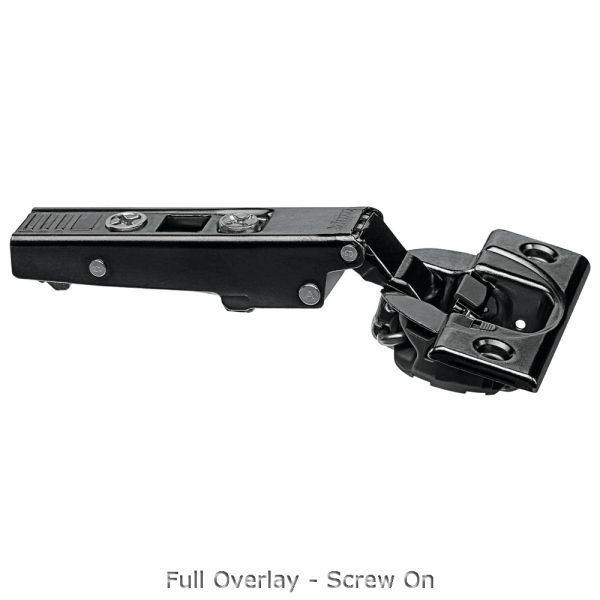

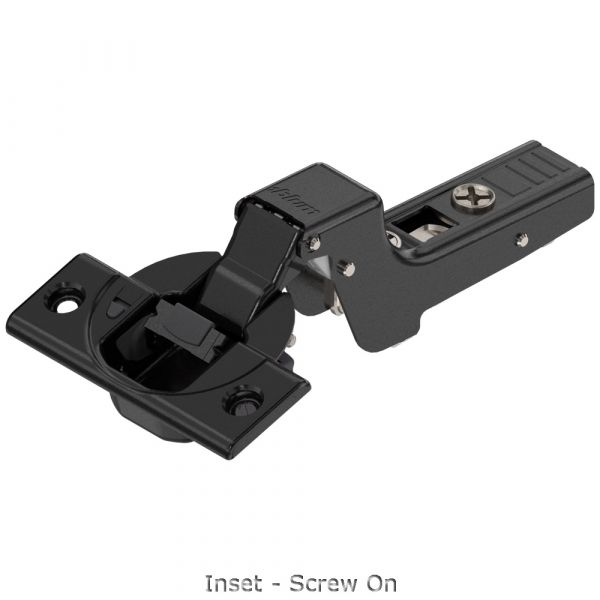

Blum CLIP Top BLUMOTION 110° Hinge - Onyx Black + Horizontal Cam Plate (Screw On)
- View all variations as list
| CODE | Hinge Mounting Type | Availability | Price | ||
|---|---|---|---|---|---|
|
71B3750/175H3100-ONS
|
In stock
|
AED1283 | ||
|
71B3550/175H3100-ONS
|
In stock
|
AED1204 |
Brand: Blum
CLIP top BLUMOTION with integrated BLUMOTION (with deactivation option).
CLIP top with or without closing mechanism (spring).
110° opening angle.
3-dimensional front adjustment.
Convenient spiral-tech depth adjustment.
Tool-free door to cabinet assembly and removal.
With INSERTA tool-free hinge to door assembly.
Technical Attributes
Application: Standard Hinge
Opening Angle: 110
Closing Mechanism: With Spring
Hinge Variant: With Integrated BLUMOTION
Boss Material: Steel Boss
Boss Finish: Onyx Black
Diametre Hinge Boss Drilling: 35
Distance Between Drillings: 45
Exccentric Position of Fixing Holes to Hinge Boss Hole: 9.5
Boss Drilling Depth: 13
Minimum Drilling Distance: 3
Maximum Drilling Distance: 7
Arm Material: Steel
Arm Finish: Onyx Black
Type of Side Adjustment: With Screw
Side Adjustment: +/- 2 mm
Type of Depth Adjustment: Convenient with Spiral Screw
Depth Adjustment: + 3/- 2 mm
Gap: 1.5
Item Package: 1 Piece
Note:
A trial application is recommended when combining CLIP top BLUMOTION hinges with springs on small, light fronts up to 300 mm wide. Combining these is not recommended for wider fronts.

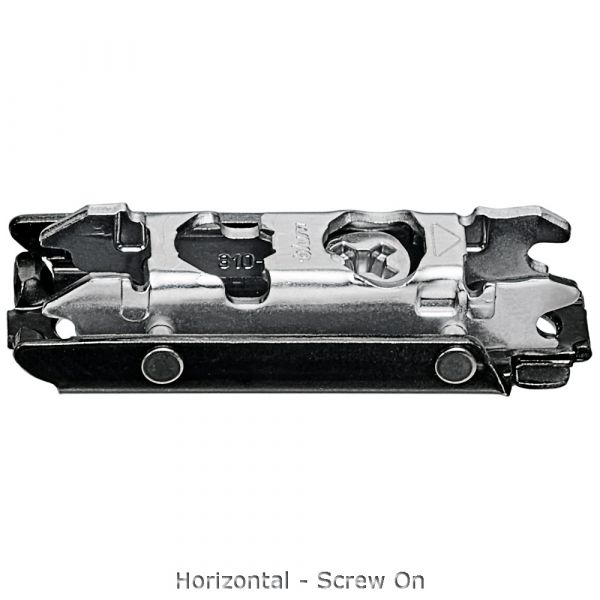

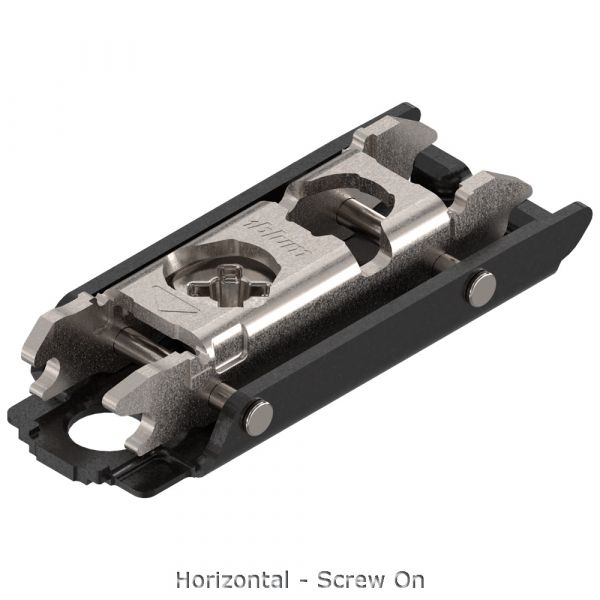

Blum CLIP Top BLUMOTION - Horizontal Cam Mounting Plate (Screw On) - Onyx Black Finish
Technical Attributes
Mounting Plate System: CLIP
Colour / Finish: Onyx Black
Shape of Mounting Plate: Straight
Material: Steel
Surface of Bottom Part: Onyx Black
Fixing: For Chipboard Screws
Distance Cabinet Front Edge to First Fixing Position: 20
Mounting Plates Height Adjustment: With Cam
Height Adjustment: +/- 2 Mm
Height: 8.5
Spacing: 0
Angle: 0
Item Package: 1 Piece
Material of Bottom Part: Steel
