Hettich - Hinge For Corner Cabinet Folding Doors Without Self Closing - Opening Angle 50° / 65° + Cross Mounting Plate
Product Code: 9116394
Brand: Hettich

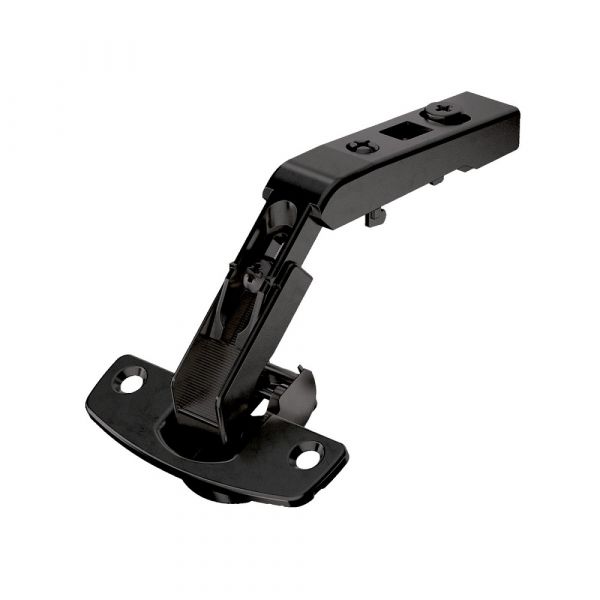

Hinge for corner cabinet folding doors.
Without self closing feature (Intermat 9930).
Quality classification under EN 15570, Level 2.

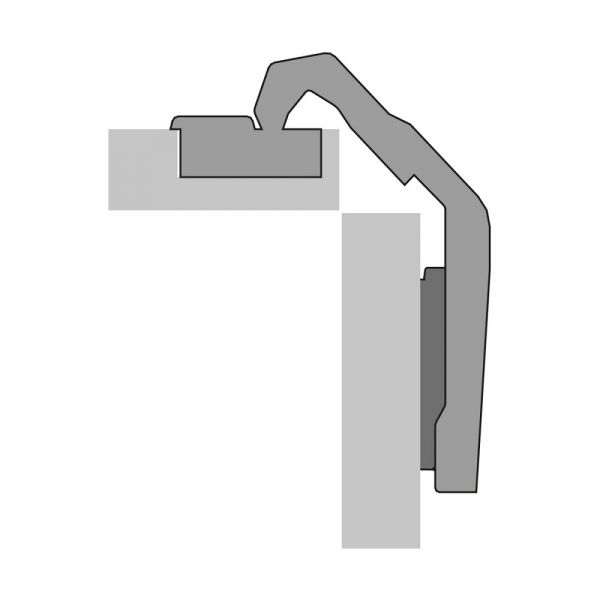

Integrated overlay adjustment, see sketch.
Integrated depth adjustment, see sketch.
Height adjustment at mounting plate.
Steel / die-cast zinc in obsidian black.
Specification:
Door mounting option: overlay
Type of installation: for screwing on
Drilling pattern: TH 52 x 5,5 mm
Design: Corner unit with folding door
Door type: Corner cabinet folding door
Standard door / wooden door
Wood framed door (profile width from 50 mm)
Aluminium framed door (profile width from 50 mm)
User friendly features: without self closing feature
Min. door thickness: 15 mm
Max. door thickness: 21 mm
Cup version: TH 52
Base: 24 mm
Cup diameter: 35 mm
Cup depth: 12.8 mm
Hinge surface finish: steel / die-cast zinc in obsidian black
Diameter of mounting hole: Centre punch
Predrilled hole: 2.5 mm Ø max.
Integrated overlay adjustment: +2 mm / -2 mm
Stay closed function: No
Finish: in obsidian black

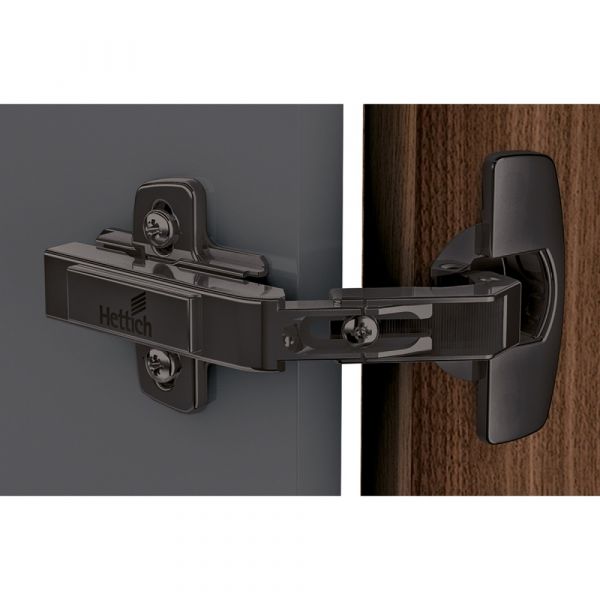

Hettich - Cross Mounting Plate
Product Code: 9091799
Cross mounting plate with oblong hole height adjustment
For Sensys in obsidian black
Quality classification under EN 15570, Level 3
Steel in obsidian black
Specification:
Cabinet body side panel thickness: 15 mm
Type of installation mounting plates: with euro screws (ø 5 x 12)
Mounting plate / Hole line distance LR / Hole spacing LA:
Cross-mounting plate / LR 37 / LA 32
Type of mounting plate: Cross mounting plate
Hole line distance LR: 37 mm
Height adjustment: oblong hole height adjustment
Adjustment range: + 3 mm / - 3 mm
Hole line: Hole line 37 x 32 mm
Distance: 0 mm, 1.5mm
Hole spacing: 32 mm
Material: steel
Finish: in obsidian black
Door mounting option: overlay, half overlay, inset
Type of installation: with euro screws
Mounting hole: ø 5 x 12
