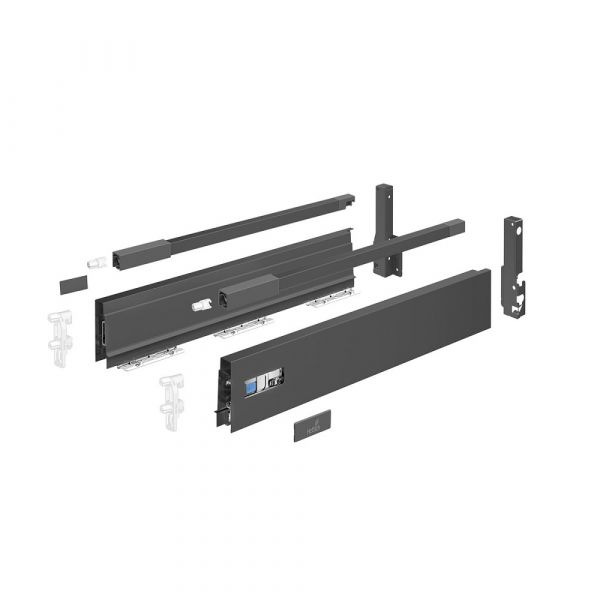

Hettich - InnoTech Atira Drawer System Set L/R 144mm Height Anthracite Finish
Product Code: 9194426/9194427-144
Brand: Hettich
left
System colour anthracite
System height 144
Nominal length 470 mm
Cabinet body width 200 mm - 1200 mm
Drawer type double walled
Variants All-inclusive sets
Mounting side left
Material steel
Order no. 9194426
Right
System colour anthracite
System height 144
Nominal length 470 mm
Cabinet body width 200 mm - 1200 mm
Drawer type double walled
Variants All-inclusive sets
Mounting side left
Material steel
Previous order no. 9194427
Components:

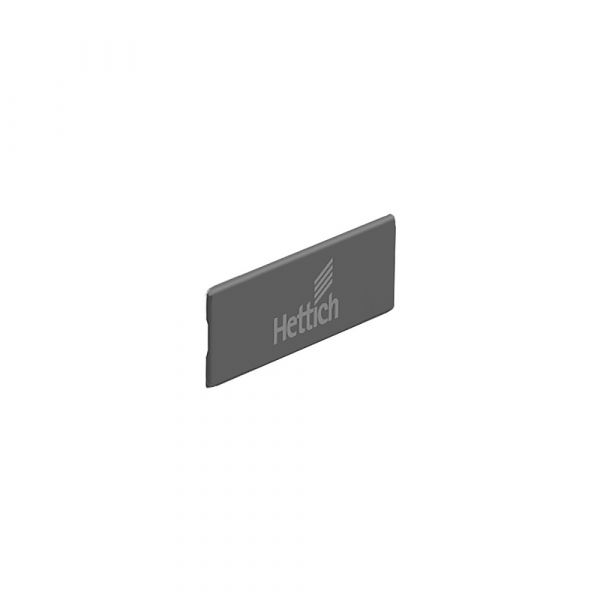

InnoTech Atira Cover cap, dark grey, with Hettich logo
Drawer type double walled
System colour anthracite
Variants Components
Components Cover caps
Colour dark grey
Finish with Hettich logo
EAN 4023149696480
Order no. 9194648

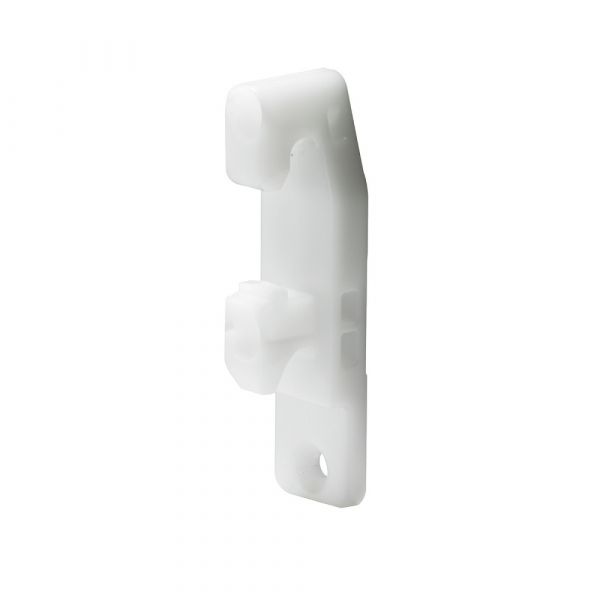

InnoTech Atira / InnoTech Drawer front connector for drawer side profile, for screwing on
Type of installation for screwing on
Drawer type double walled
System colour anthracite
System height 70
Variants Components
Material plastic
Components Drawer front connectors
EAN 4023149026331
Previous order no. 83319
Order no. 1065191

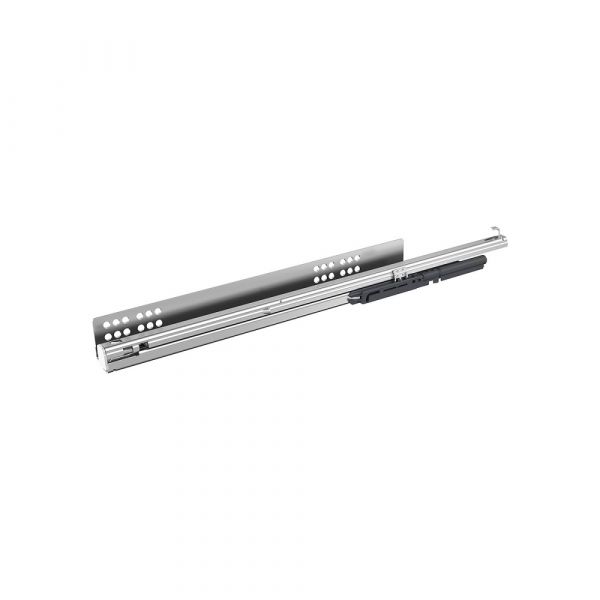

Quadro V6 Silent System, 470 mm, EB 10.5 mm, load capacity 30 kg, left
Full extension runner
With integrated Silent System
Load capacity to EN 15338 Level 3
Slide on installation
Galvanized steel
Specification:
left
Load capacity kg 30 kg
Installed width EB 10.5
Hole spacing b1 256 mm
Installed width / cabinet body side thickness EB 10.5 (cabinet body side thickness 18 mm)
Nominal length 470 mm
Mounting side left
Load class 30 kg
Type of runner Concealed runner
Type of drawer runner Full extension runner
User friendly features Silent System
Components Drawer runners
Variants Components
Material steel
For cabinet body side thickness KD 18 mm
Design left
Cabinet body depth 485 mm / 494 mm
EAN 4023149361685
Order no. 9047452

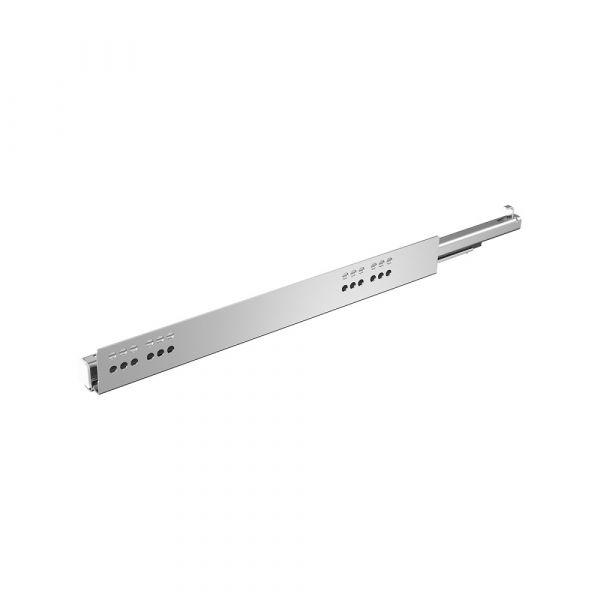

Quadro V6 Silent System, 470 mm, EB 10.5 mm, load capacity 30 kg, right
Specification:
right
Load capacity kg 30 kg
Installed width EB 10.5
Hole spacing b1 256 mm
Installed width / cabinet body side thickness EB 10.5 (cabinet body side thickness 18 mm)
Nominal length 470 mm
Mounting side right
Load class 30 kg
Type of runner Concealed runner
Type of drawer runner Full extension runner
User friendly features Silent System
Components Drawer runners
Variants Components
Material steel
For cabinet body side thickness KD 18 mm
Design right
Cabinet body depth 485 mm / 494 mm
EAN 4023149361692
Order no. 9047453

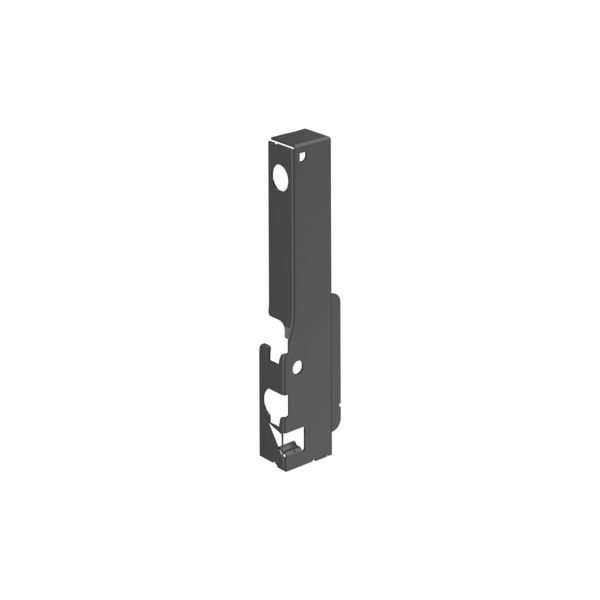

Rear panel connector InnoTech Atira, 144 mm, anthracite,
left
System colour anthracite
System height 144
Cabinet body width 200 mm - 1200 mm
Mounting side left
Drawer type double walled
Variants Components
Components Rear panel connector
EAN 4023149692819
Order no. 9194637
right
System colour anthracite
System height 144
Cabinet body width 200 mm - 1200 mm
Mounting side right
Drawer type double walled
Variants Components
Components Rear panel connector
EAN 4023149692932
Order no. 9194638

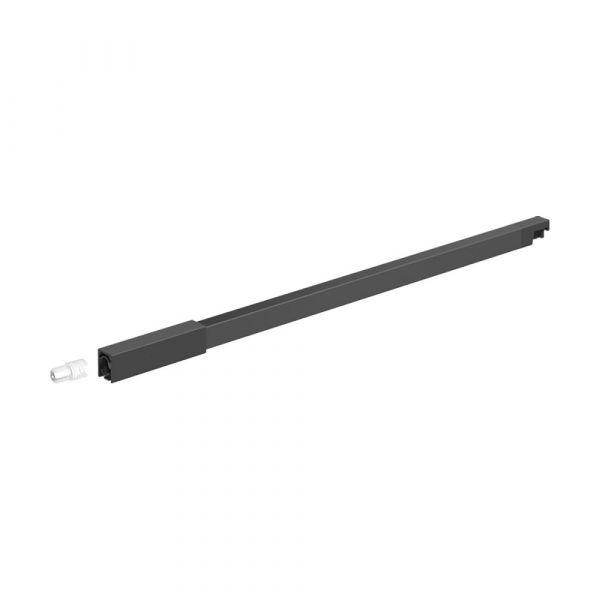

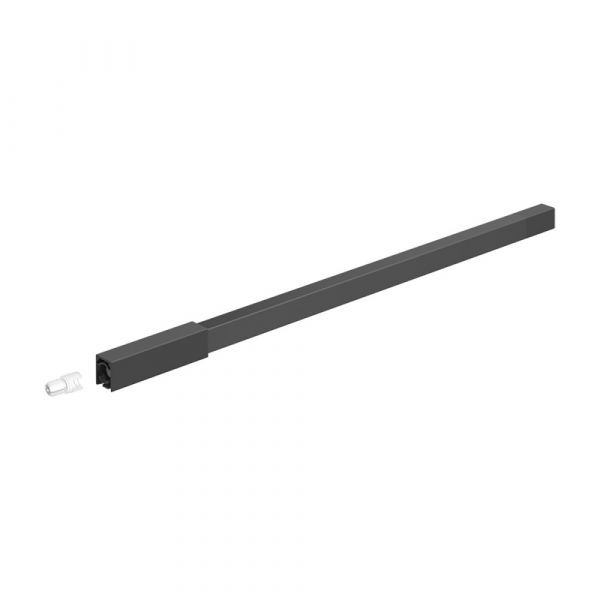

Lengthwise railing InnoTech Atira, 470 mm, left, Anthracite
left
System colour anthracite
Nominal length 470 mm
Mounting side left
Design left
Drawer type double walled
System height 144
Variants Components
Material steel
Components Lengthwise railings
EAN 4023149674822
Order no. 9194558
Right
System colour anthracite
Nominal length 470 mm
Mounting side right
Design right
Drawer type double walled
System height 144
Variants Components
Material steel
Components Lengthwise railings
EAN 4023149674884
Order no. 9194559

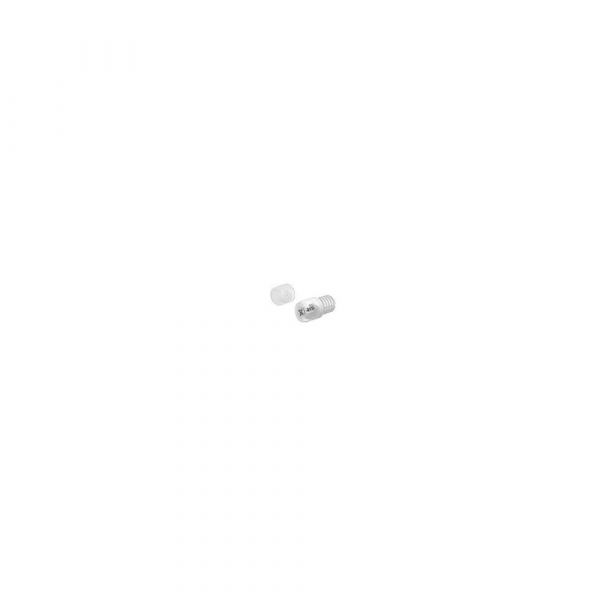

InnoTech Atira / InnoTech Drawer front connector for lengthwise railing, for screwing on
Type of installation for screwing on
System colour anthracite
Drawer type double walled
System height 144
Variants Components
Material plastic
Components Drawer front connectors
EAN 4023149579622
Order no. 9002503
