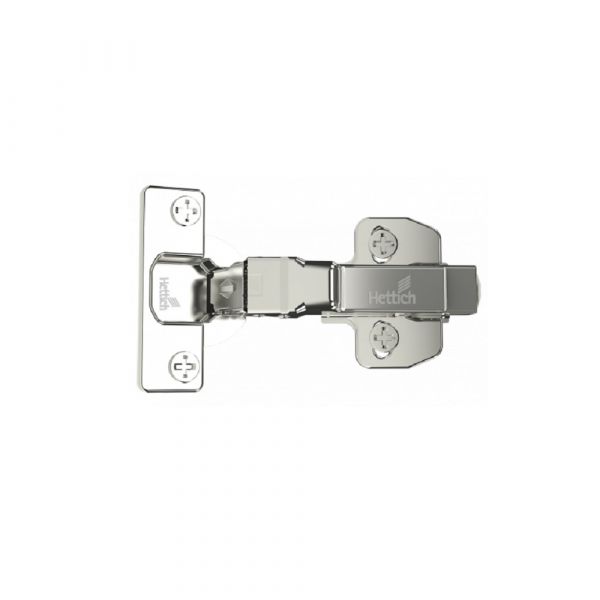

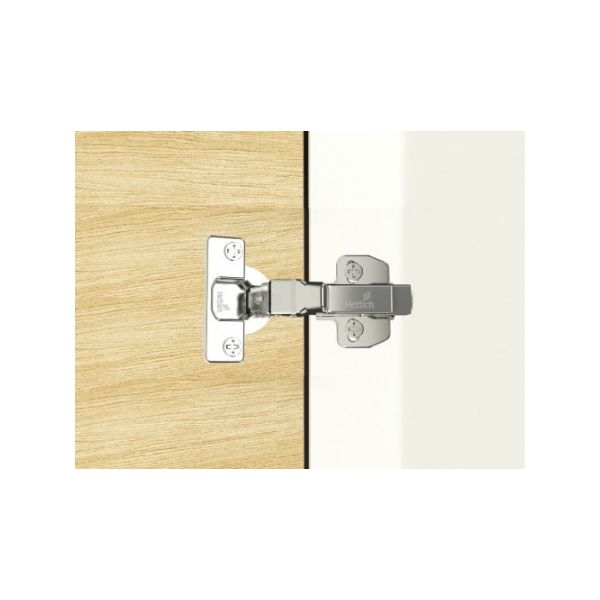

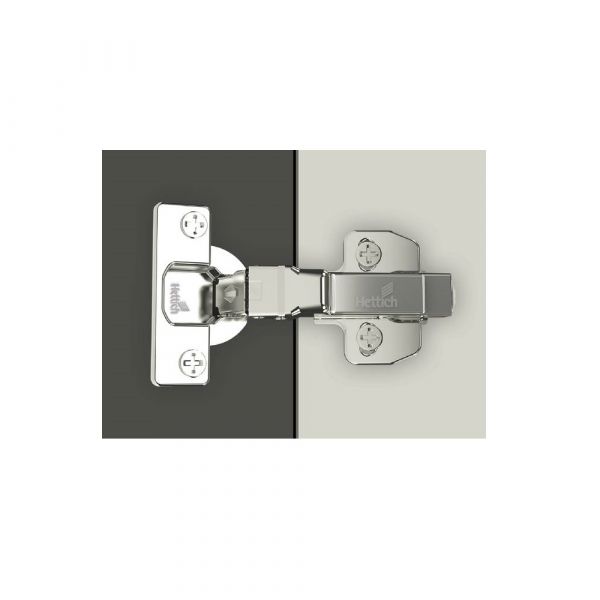

Hettich - Onsys Hinge -25 mm + Mounting Plate

9281433/9281438
AED435
AED581 Excl. VAT
1 Set (AED4.35 per Set)
You save: AED1.46
In stock
Price in points: 5 points
Arab Tools
+971562015094

Brand: Hettich

Concealed furniture hinge with clip on installation and integrated Silent closing system

Used for full inset doors

Suitable for door thickness of 14 - 25 mm

Available with integrated overlay & depth adjustment

Height adjustment available on mounting plate

Material used: Steel, Nickel plated

Note: Order mounting plate and cover caps separately.

Onsys marks the launch of an entry level hinge with integrated Silent System. The soft-closing mechanism is integrated invisibly into the hinge, which ensures just the perfect closing that one desires. Responding to a mere turn of the hand, doors close smoothly and silently. Pushing doors shut from an exceptionally wide opening angle of 105°, Onsys provides a seamless closing experience. An innovation that is the ideal balance of convenience, functionality and cost.

Concealed furniture hinge with clip on installation and integrated Silent closing system

Used for Half overlay doors Suitable for door thickness of 14 - 25 mm Concealed furniture hinge with clip on installation and integrated Silent closing system

Available with integrated overlay & depth adjustment Height adjustment available on mounting plate

Wide 35° automatic closing angle: furniture doors always close gently and reliably.

Optimized Silent System performance over a wide temperature range of +5°C to 40°C.


Available Option:

Full Overlay

Onsys Hinge - 25 mm - 0 Crank

Concealed hinge with clip on installation and integrated silent  system

Quality classification under   EN 15570, Level 2

For door thickness of 14-25

Cup diameter 35mm

Cup depth 11.5mm

Integrated overlay adjustment +/- 2mm

Integrated depth adjustment  + 2.5mm / -1.5mm

Integrated adjustment at mounting  plate

Steel nickle plate


Half  Overlay

Onsys Hinge - 25 mm - 9.5 Crank

Concealed furniture hinge with clip on installation and integrated Silent closing system.

Used for Half overlay doorsSuitable for door thickness of 14 - 25 mm.

Available with integrated overlay & depth adjustmentHeight adjustment available on mounting plate.

Material used: Steel ,Nickel plated


Inset

Onsys Hinge - 25 mm - 16 Crank - OEM

Concealed furniture hinge with clip on installation and integrated Silent closing system

Used for full inset doors

Suitable for door thickness of 14 - 25 mm

Available with integrated overlay & depth adjustment

Height adjustment available on mounting plate

Material used: Steel ,Nickel plated


Hettich - Mounting Plate D0 BZ 25249 - Steel Finish

Item Code: 9281438

Brand: Hettich

Mounting plate: D0 BZ 25249

Distance: 0.0mm

Material: Steel
