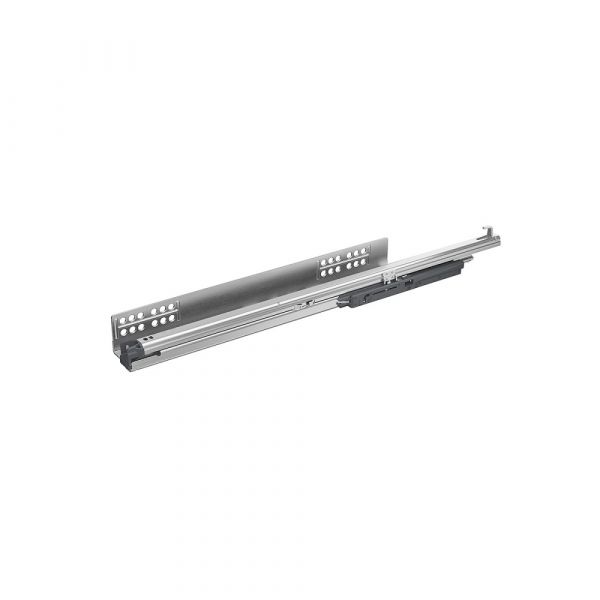

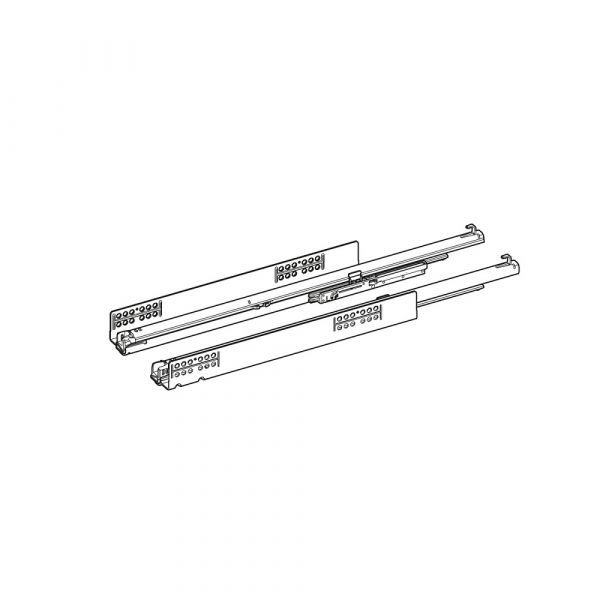

Hettich - Quadro V6 You M - Full Extension Runner With Push To Open + Quadro Catch

Brand: Hettich

Full extension runner for combining with AvanTech YOU system drawer or wooden drawer with catches.

Integrated Push to open opening mechanism.

Tool-less height adjustment up to + 3 mm.

Optional: synchronization / multi synchronization.

Optional: pull-out shelf support / pull-out shelf locating catch.

Load class M (30 kg).

Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation.

Suitable for drawers with a side profile thickness of up to 16 mm.

Load capacity to EN 15338, Level 3.

Galvanized steel.

Advice:

Catch for use with wooden drawer can be ordered separately.

Synchronization / multi synchronization for Quadro V6 YOU with Push to open can be ordered separately.

Pull-out shelf support for use with wooden drawer (pull-out shelf) can be ordered separately.

Using the pull-out shelf support reduces drawer length by 10 mm (nominal length - 20 mm).

Features:

Load class  M (30 kg)

User friendly features

Push to open

Type of runner Concealed runner

Type of drawer runner  Full extension runner

Installed width / cabinet body side thickness  EB 21 (drawer side profile thickness ≤ 16mm)

Min. installed depth: 253 mm

Components: Drawer runners

Variants: Components

Material: steel

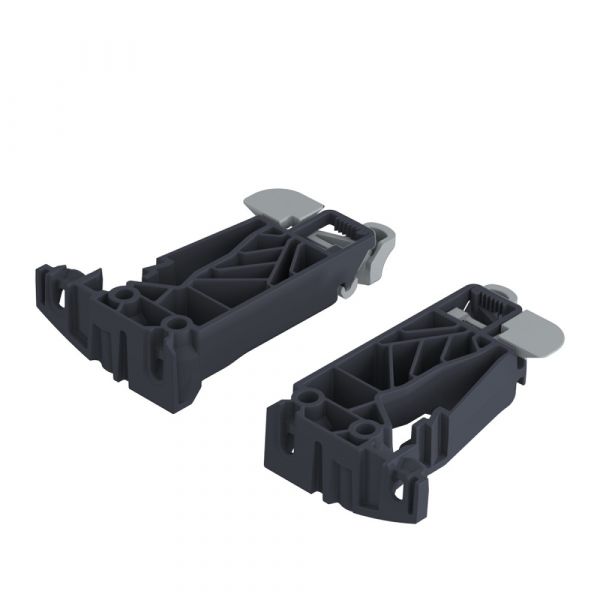

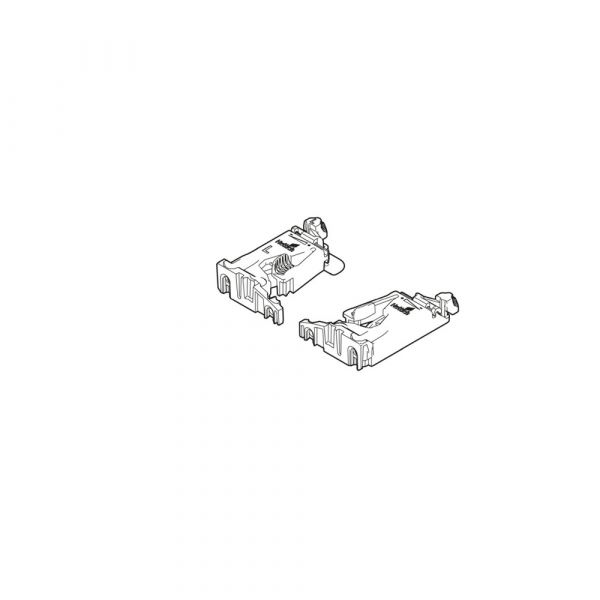

Quadro, YOU Catch, left and right

Order no. 9257262

Detail:

For using Quadro V6 YOU with wooden drawers

Height adjustment up to + 3 mm

Plastic anthracite

Application:          Quadro 25 YOU

Quadro:                 V6 YOU

Mounting side:       left and right

Components:         Accessories

Variants:                Components

Material:                plastic
