Hettich - Quadro V6 You M - Full Extension Runner with Silent System + Quadro Catch

9256852/9256853/9257262
AED6720
AED8960 Excl. VAT
1 Set (AED67.20 per Set)
You save: AED22.40
In stock
Price in points: 68 points
Arab Tools
+971562015094

Brand: Hettich

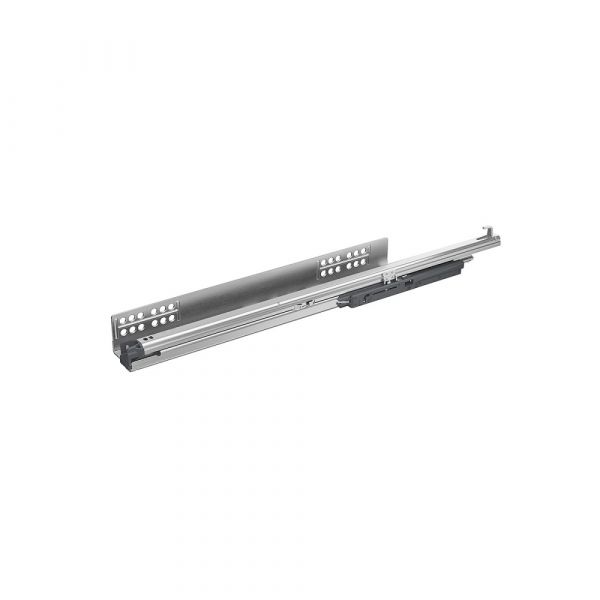

Full extension runner for combining with AvanTech YOU system drawer or wooden drawer with catches.

Integrated Silent System.

Tool-less height adjustment up to + 3 mm.

Optional: Push to open Silent opening system.

Optional: synchronization / multi synchronization for Push to open.

Optional: pull-out shelf support / pull-out shelf locating catch.

Load classes XS (10 kg) / M (30 kg).

Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation.

Suitable for drawers with a side profile thickness of up to 16 mm.

Load capacity to EN 15338, Level 3.

Galvanized steel.


Advice:

Catch for use with wooden drawer can be ordered separately.

Push to open Silent for Quadro V6 YOU with Silent System can be ordered separately.

Synchronization / multi synchronization for Push to open Silent can be ordered separately.

Pull-out shelf support for use with wooden drawer (pull-out shelf) can be ordered separately.

Using the pull-out shelf support reduces drawer length by 10 mm (nominal length - 20 mm).


Features:

Load class                                                        M (30 kg)

User friendly features                                      Silent System

compatible with                                              push to open silent

Type of runner                                                 Concealed runner

Type of drawer runner                                     Full extension runner

Installed width / cabinet body side thickness    EB 21 (drawer side profile thickness ≤ 16mm)

Min. installed depth                                          253 mm

Components                                                     Drawer runners

Variants                                                           Components

Material                                                           steel

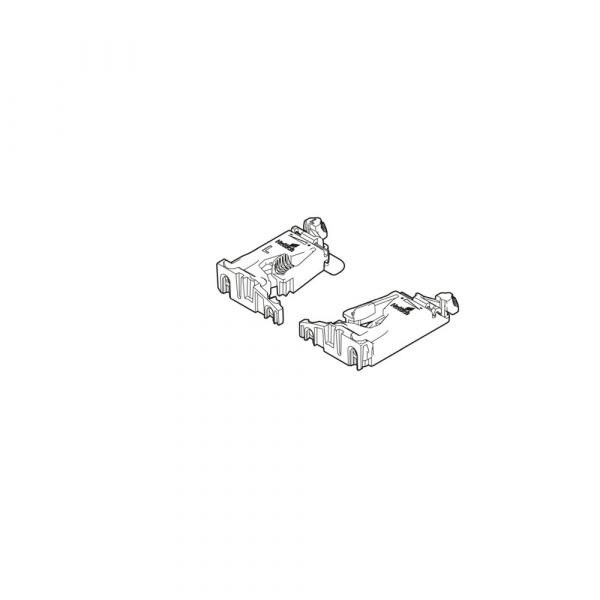

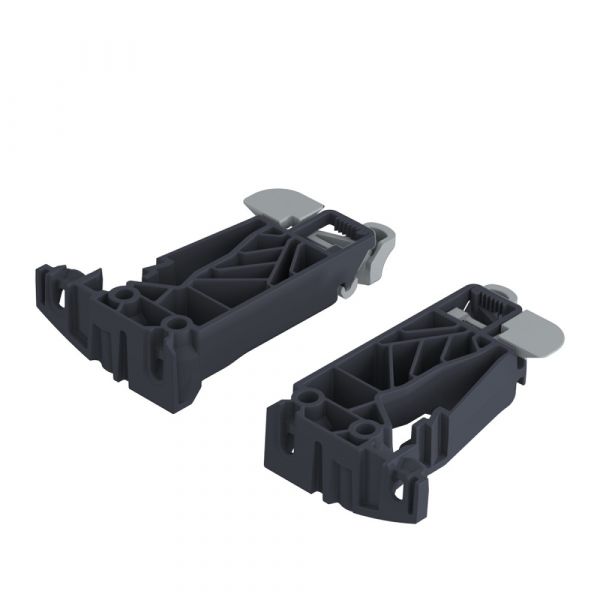

Hettich Quadro YOU Catch, left and right

Order no. 9257262

For using Quadro V6 YOU with wooden drawers

Height adjustment up to + 3 mm

Plastic anthracite

Application       Quadro 25 YOU

Quadro                        V6 YOU

Mounting side  left and right

Components    Accessories

Variants            Components

Material            plastic

EAN                 4023149738753

Brand
Hettich
