Hettich - Sensys 110° Hinge With Integrated Silent System + Cross Mounting Plate

Brand: Hettich

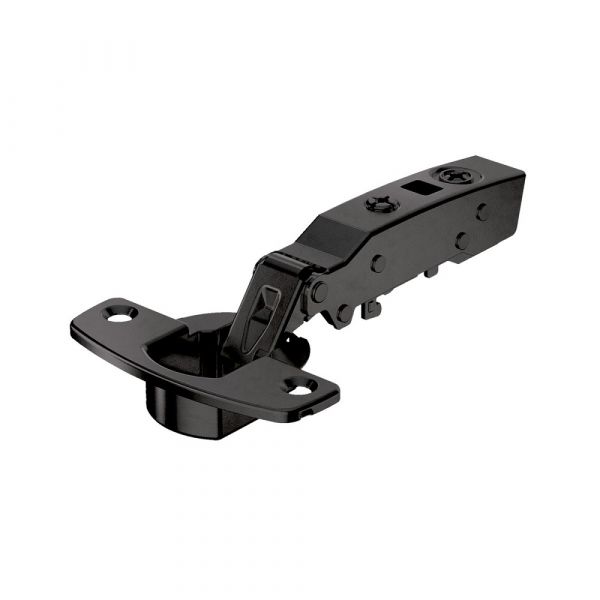

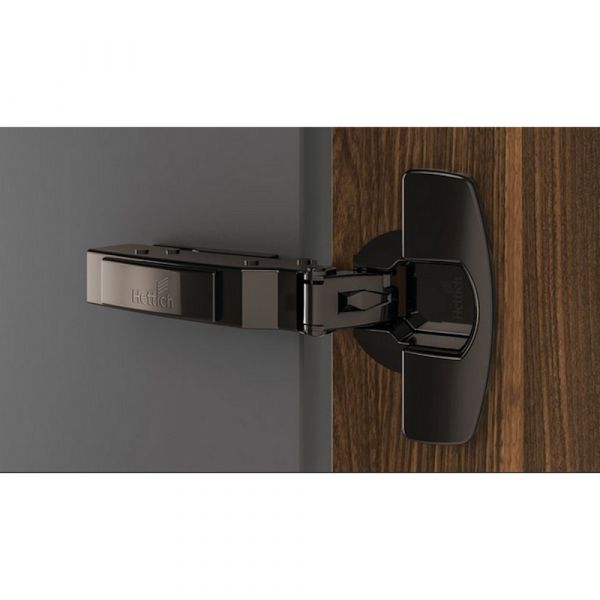

Sensys 110° hinge

With integrated Silent System, with self-closing feature (Sensys 8645i)

Quality classification under EN 15570, Level 3

Height adjustment at mounting plate

Steel in obsidian black

Specification:

Design                         90° construction

Door type                     Standard door / wooden door

Wood framed door (profile width from 50 mm)

Aluminium framed door (profile width from 50 mm)

User friendly features  with integrated silent system

Door mounting option  overlay

Opening angle             110 °

Min. door thickness     15 mm

Max. door thickness     24 mm

Cup version                 TH 52

Cup diameter               35 mm

Cup depth                    12.8 mm

Type of installation       for screwing on

Hinge surface finish     steel in obsidian black

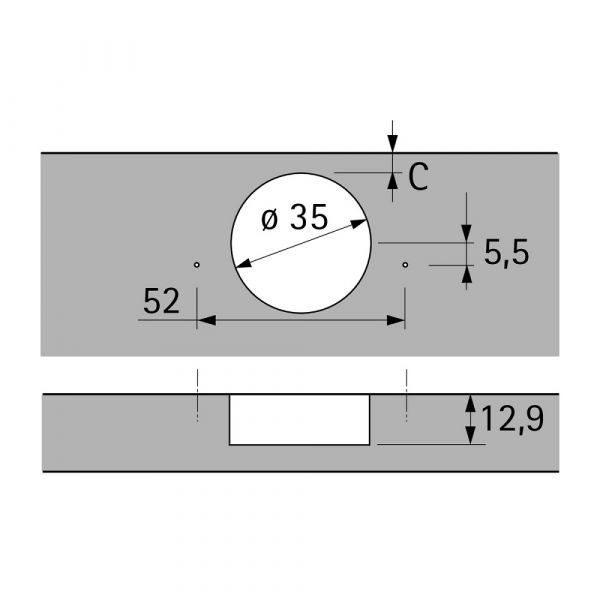

Drilling pattern             TH 52 x 5,5 mm

Diameter of mounting hole       Centre punch

Predrilled hole                                     2.5 mm Ø max.

Integrated overlay adjustment  +2 mm / -2 mm

Integrated depth adjustment    +3 mm / -2 mm

Stay closed function                Yes

Finish                                       in obsidian black

Available Option:

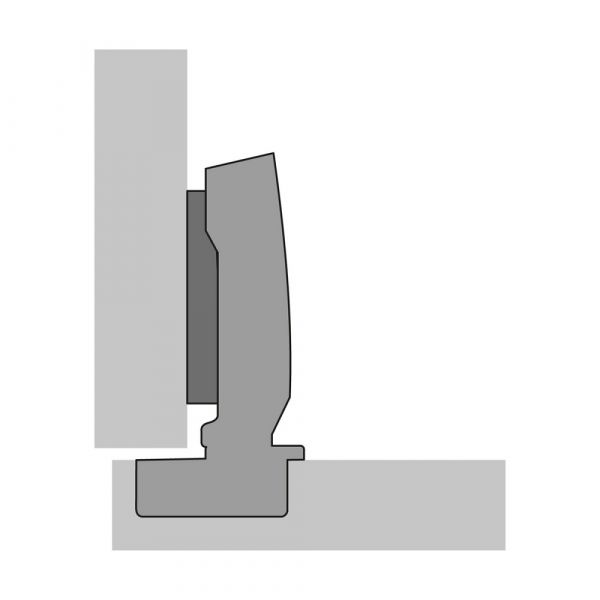

Full overlay

Base                                        12.5 mm

EAN                                         4023149296390

Order no.                                 9117734

Half overlay

Base                                        3 mm

EAN                                         4023149296413

Order no.                                 9117736

Inset

Base                                        -4 mm

EAN                                         4023149296420

Order no.                                 9117737

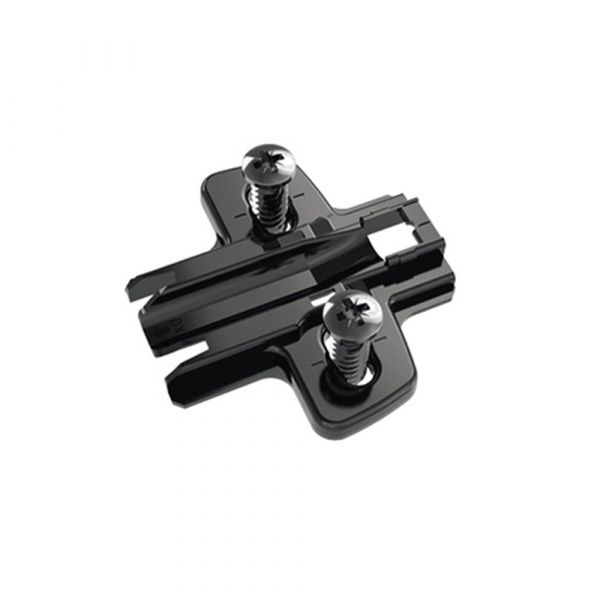

Hettich - Cross Mounting Plate

Cross mounting plate with oblong hole height adjustment

For Sensys in obsidian black

Quality classification under EN 15570, Level 3

Steel in obsidian black

Specification:

Cabinet body side panel thickness: 15 mm

Type of installation mounting plates: with euro screws (ø 5 x 12)

Mounting plate / Hole line distance LR / Hole spacing LA: Cross-mounting plate / LR 37 / LA 32

Type of mounting plate: Cross mounting plate

Hole line distance LR: 37 mm

Height adjustment: oblong hole height adjustment

Adjustment range: + 3 mm / - 3 mm

Hole line: Hole line 37 x 32 mm

Distance: 0 mm, 1.5mm

Hole spacing: 32 mm

Material: steel

Finish: in obsidian black

Door mounting option: overlay, half overlay, inset

Type of installation: with euro screws

Mounting hole: ø 5 x 12

Order no.: 9091799
