Hettich - Sensys Aluminium Frame Hinge 95° With Integrated Silent System + Cross Mounting Plate
Product Code: 9091744
Brand: Hettich

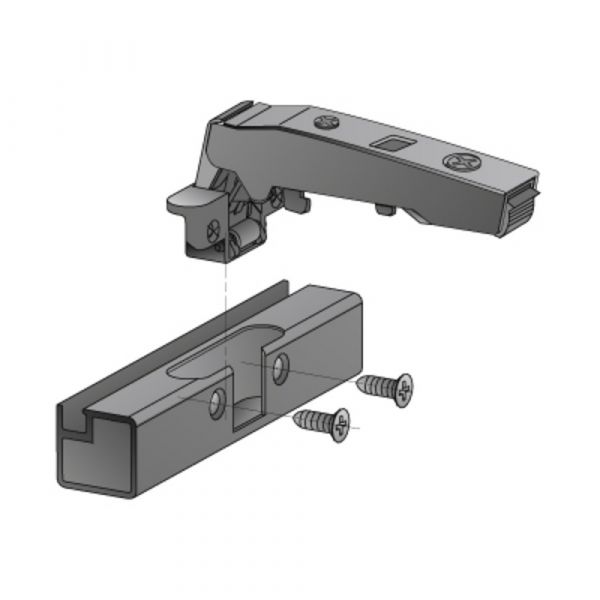

Sensys Aluminum frame hinge
With integrated Silent System, with self-closing feature (Sensys 8638i)
Quality classification under EN 15570, Level 3

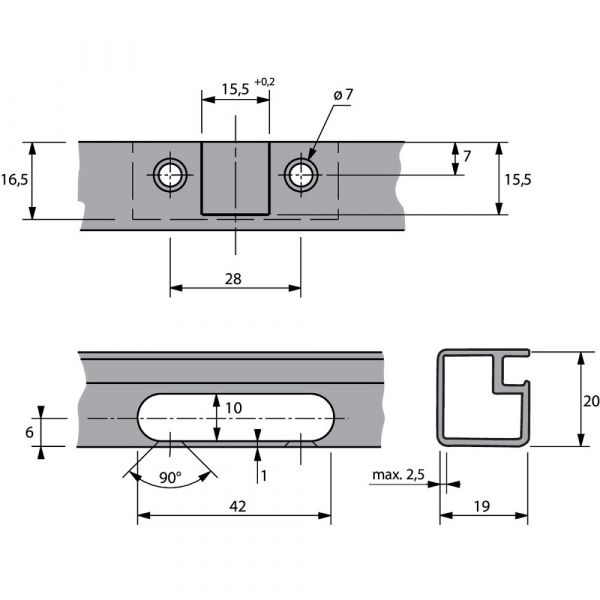

For 19 mm wide Aluminum profiles
Height adjustment at mounting plate
Including 2 fixing screws
Steel / die-cast zinc in obsidian black
Specification:
Design 90° construction
Door type Aluminum framed door (profile width 19 mm)
User friendly features with integrated silent system

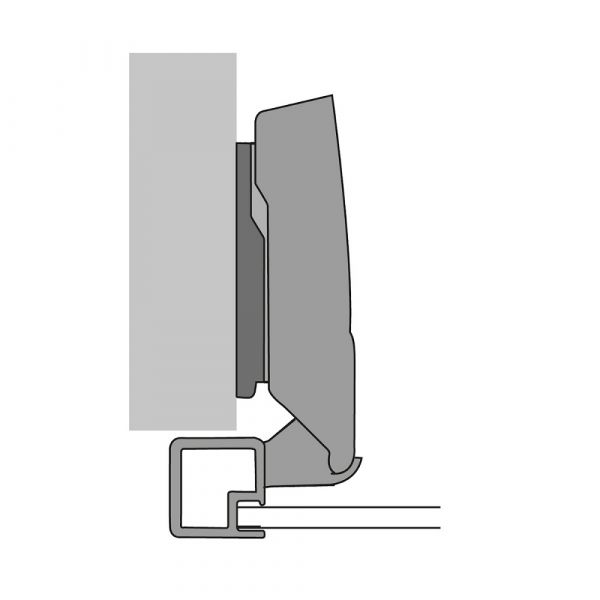

Door mounting option overlay
Opening angle 95 °
Min. door thickness 20 mm
Max. door thickness 20 mm
Cup version TA 32
Base 12.5 mm
Type of installation for screwing on
Hinge surface finish steel / die-cast zinc in obsidian black
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Stay closed function Yes
Finish in obsidian black
Cross Mounting Plate
Product Code: 9091799
Cross mounting plate with oblong hole height adjustment
For Sensys in obsidian black
Quality classification under EN 15570, Level 3
Steel in obsidian black
Specification:
Cabinet body side panel thickness: 15 mm
Type of installation mounting plates: with euro screws (ø 5 x 12)
Mounting plate / Hole line distance LR / Hole spacing LA:
Cross-mounting plate / LR 37 / LA 32
Type of mounting plate: Cross mounting plate
Hole line distance LR: 37 mm
Height adjustment: oblong hole height adjustment
Adjustment range: + 3 mm / - 3 mm
Hole line: Hole line 37 x 32 mm
Distance: 0 mm, 1.5mm
Hole spacing: 32 mm
Material: steel
Finish: in obsidian black
Door mounting option: overlay, half overlay, inset
Type of installation: with euro screws
Mounting hole: ø 5 x 12
