Hettich - Sensys Angle Hinge W90 With Integrated Silent System - Inset Opening Angle 95° + Cross Mounting Plate
Brand: Hettich

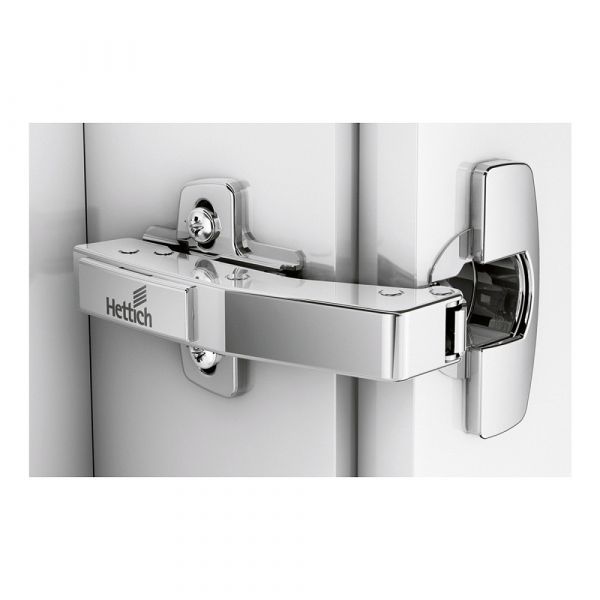

Sensys angle hinge W90
With integrated Silent System, with self closing feature (Sensys 8639i W90)
Quality classification under EN 15570, Level 3
Height adjustment at mounting plate
Steel nickel plated
Specification:
Design: Corner cabinet 90° (W90)
Door type: Standard door / wooden door
Aluminium framed door (profile width from 50 mm)
Wood framed door (profile width from 50 mm)
User friendly features: with integrated silent system

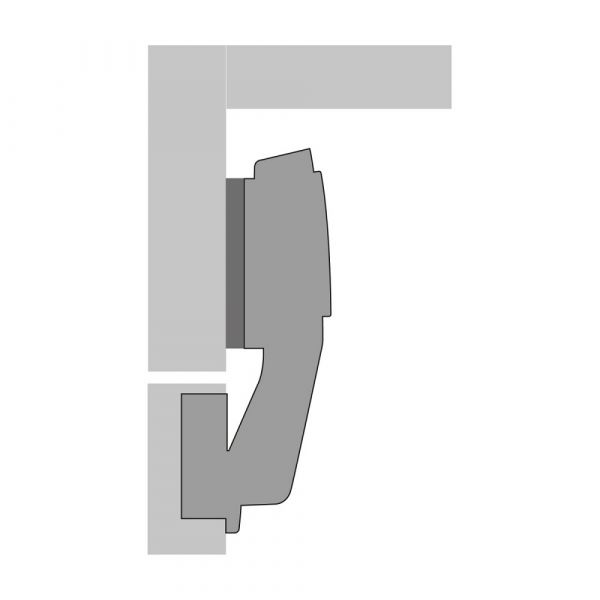

Door mounting option: inset
Opening angle: 95 °
Min. door thickness: 15 mm
Max. door thickness: 28 mm
Cup version: TH 52
Base: 4 mm
Cup diameter: 35 mm
Cup depth: 12.8 mm
Type of installation: for screwing on
Hinge surface finish: steel nickel plated

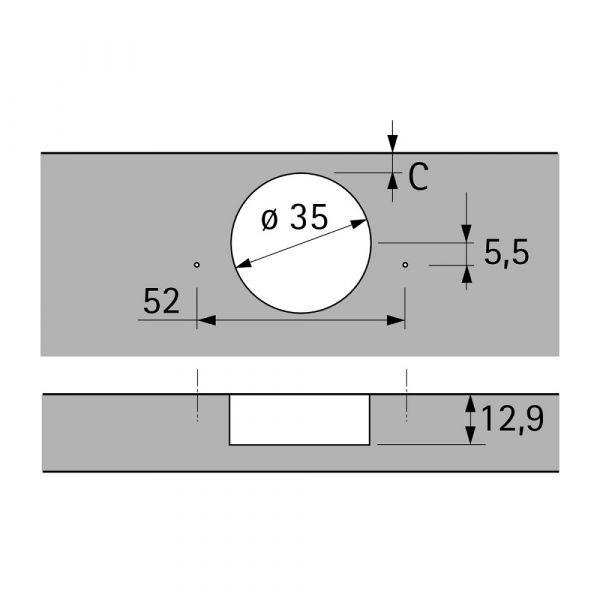

Drilling pattern: TH 52 x 5,5 mm
Diameter of mounting hole: Centre punch
Predrilled hole: 2.5 mm Ø max.
Integrated overlay adjustment: +3 mm / -2 mm
Integrated depth adjustment: +1 mm / -2 mm
Stay closed function: Yes
EAN: 4023149346279
Previous order no.: 9085170
Order no.: 9088021
Hettich - Cross Mounting Plate
Brand: Hettich
Cross mounting plate with oblong hole height adjustment
For Sensys, Novisys and Intermat
Quality classification under EN 15570, Level 3
Specification:
Type of installation mounting plates: for screwing on
Mounting plate / Hole line distance LR / Hole spacing LA: Cross-mounting plate / LR 37 / LA 32
Type of mounting plate: Cross mounting plate
Hole line distance LR: 37 mm
Height adjustment: oblong hole height adjustment
Adjustment range: + 3 mm / - 3 mm
Hole line: Hole line 37 x 32 mm
Distance: 1.5 mm, 0.0mm
Hole spacing: 32 mm
Material: steel
Finish: nickel plated
Door mounting option: overlay, half overlay, inset
Type of installation: for screwing on
EAN: 4023149960116
Order no.: 9071575
